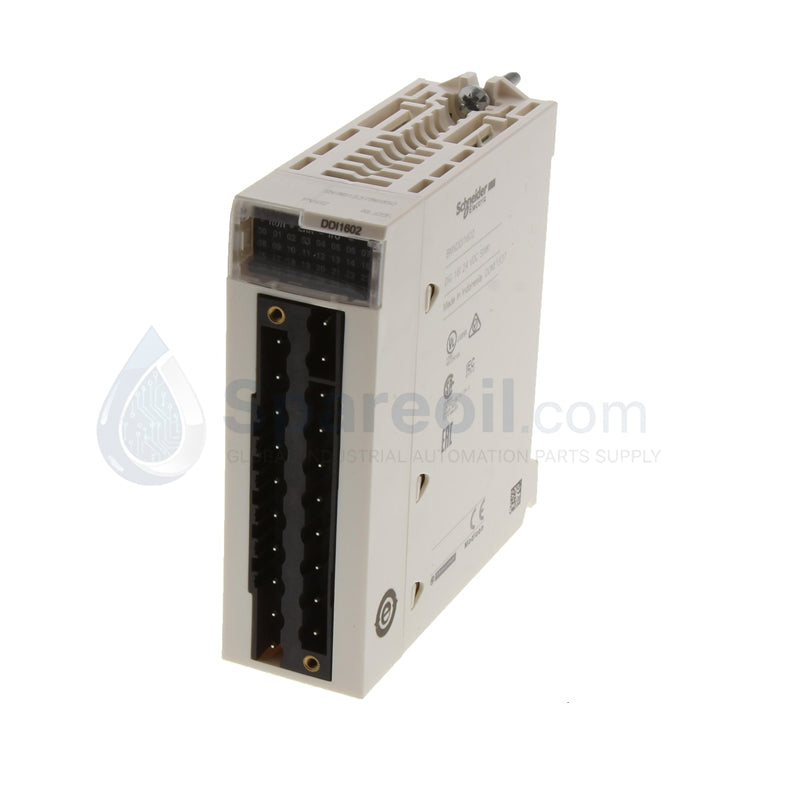

Schneider Electric BMXDDI1602 Discrete Input Module
Configured for high-performance signal acquisition in Modicon X80 automation platforms, the Schneider Electric BMXDDI1602 (BMXDDI1602 Discrete Input Module) provides 16 isolated channels for the direct physical execution of binary status monitoring from 24 VDC field devices.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | BMXDDI1602 |
| Brand | Schneider Electric |
| Origin | Not specified |
| Weight | 0.115 kg |
| Dimensions | Standard X80 Form Factor |
| Operating Temp | Not specified |
| Power Consumption | 90 mA @ 3.3 VDC |
| Input Channels | 16 (Isolated) |
| Logic Type | Current Sink (Positive Logic) |
| Input Voltage | 24 VDC (19.2 to 30.0 VDC) |
Industrial Control and Signal Conditioning
The BMXDDI1602 utilizes a current-sink architecture compatible with PNP (sourcing) sensors. Each of the 16 channels features internal isolation and a configurable signal filter (4 ms to 7 ms), which mitigates noise transients often encountered in industrial cabinet environments. This hardware-based filtering provides the necessary signal stability for high-speed sensor acquisition. The module's impedance characteristics (6.8 kOhm) ensure reliable threshold detection for standard proximity sensors per IEC 60947-5-2, allowing for deterministic signal state transitions across the X80 backplane.
Frequently Asked Questions
Q: Can I use this module with NPN (sinking) type sensors?
A: No. The BMXDDI1602 is a current-sink module designed specifically for use with PNP (sourcing) sensors. Utilizing an NPN sensor will prevent the input circuit from completing the necessary current path, resulting in a constant "off" state detection.
Q: Is the input filtering configurable via the PLC project software?
A: Yes. While the module features a 4 ms base hardware filter, the integration software allows for configuration of input filtering up to 7 ms. This is useful for suppressing mechanical contact bounce in pushbuttons or limit switches, ensuring cleaner signal processing at the controller level.
Field Installation Guidelines
- Connection: Utilize the 20-way removable terminal block for field-side wiring. For high-density applications, pre-wired cordsets are recommended to reduce wiring time and potential termination errors.
- Grounding: To maintain the rated isolation resistance (> 10 MOhm), ensure all field device return paths are correctly referenced to the power supply common. Avoid grounding the signal return lines at multiple disparate points, which may introduce ground loop noise.
- Wiring: Keep digital input cabling physically separated from high-current AC motor leads or power feeds to minimize electromagnetic interference (EMI) coupling. Use twisted-pair cabling for long cable runs to maintain signal integrity.
