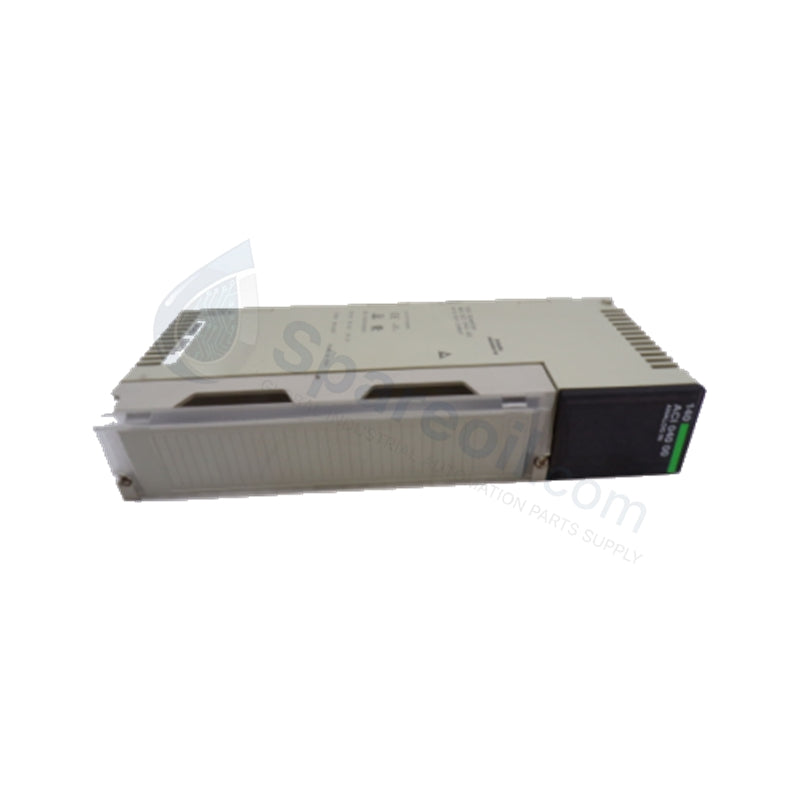

Configured for high-density current loop acquisition in Modicon Quantum PLC platforms, the Schneider Electric 140ACI04000 (140ACI04000 Analog Input Module) provides direct electrical conversion of 16-channel 4-20 mA or 0-20 mA signals for process monitoring.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 140ACI04000 |
| Brand | Schneider Electric |
| Origin | Not specified |
| Weight | 0.3 kg |
| Dimensions | Standard Quantum Form Factor |
| Operating Temp | 0 deg C to 60 deg C |
| Power Consumption | 240 mA (typical) |
| Input Channels | 16 |
| Input Architecture | Non-isolated differential |
| Resolution | 12-bit (0-4095 counts) |
| Update Rate | 10 ms (all channels) |
Industrial Control and Signal Architecture
The 140ACI04000 employs a non-isolated differential architecture designed to aggregate high-channel-count monitoring in a single-slot footprint. While the module provides 1780 Vrms isolation between the field interface and the internal logic, it is critical to note that the input channels themselves are not galvanically isolated from each other. Consequently, this module is optimized for applications where all connected field transmitters share a common reference ground, preventing potential ground loop currents that could degrade measurement accuracy.
Frequently Asked Questions
Q: Can this module be used if my field transmitters have independent power supplies?
A: Caution is required. Because the 16 channels are not isolated from each other, using independent, non-referenced power supplies across different channels can induce ground loops. Ensure all field-side loops are tied to a common potential or utilize external galvanic isolators if electrical independence is required.
Q: What is the impact of exceeding the 30 mA absolute maximum input?
A: Exceeding 30 mA will likely damage the internal 250 Ohm precision shunt resistors or the sensitive input multiplexing circuitry. Ensure all current loops are properly fused at the field side to protect the module input stages from transmitter faults or short-circuit events.
Field Installation Guidelines
- Mounting: Seat the module firmly within the Quantum rack to ensure the backplane connection is robust. Use the module's integrated fasteners to lock the unit in place, ensuring the chassis is well-bonded to the rack's grounding system.
- Grounding: To maintain measurement precision, verify that the common ground reference is clean and low-impedance. Shielded twisted-pair cabling is required for all 16 channels to mitigate inductive interference from adjacent high-voltage lines.
- Wiring: Terminate shields at a single point per circuit loop to prevent circulating currents. Given the high channel density, ensure adequate cable management within the cabinet to allow for easy identification of loop circuits during maintenance.
