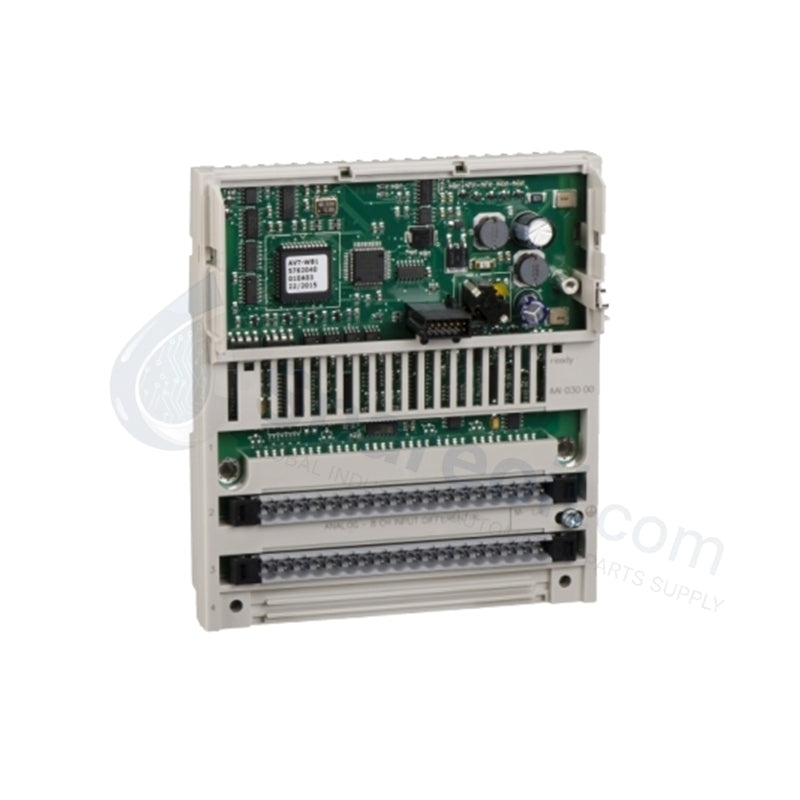

Schneider Electric 170AAI52040 Analog Input Base

Configured for high-precision signal acquisition within Modicon Momentum architectures, the Schneider Electric 170AAI52040 (170AAI52040 Analog Input Base) provides direct physical execution of differential voltage and current monitoring across 4 independent channels.

Hardware Specifications

Parameter Specification
Model 170AAI52040
Brand Schneider Electric
Origin Not specified
Weight 0.215 kg
Dimensions 141.5 mm x 125 mm x 47.5 mm
Operating Temp 0 deg C to 60 deg C
Power Consumption 1.5 W
Input Channels 4 Differential
Input Ranges 4-20 mA, 0-20 mA, 0-10 V, 0-5 V, +/- 10 V, +/- 5 V
Resolution 12-bit

Industrial Control and Network Connectivity

The 170AAI52040 utilizes a snap-on architecture to facilitate modular expansion when coupled with Momentum processors or communication adapters. The module ensures deterministic control execution by maintaining a scan update time of less than 10 ms for all channels. Its backplane bus communication velocity and I/O density scaling allow for efficient integration into distributed networks, supporting deterministic data exchange with Profinet or EtherNet/IP deterministic networks when paired with appropriate network adapters.

Frequently Asked Questions

Q: Does the 170AAI52040 support hot-swapping?

A: Yes. The Momentum series architecture is designed to support modular replacement. However, ensure that the communication adapter and processor are in a safe operating state before removing the base module to prevent bus communication errors or unexpected field-side behavior.

Q: How is input impedance handled when switching between current and voltage modes?

A: The module is internally managed to accommodate the specified impedance thresholds (> 250 Ohm for current; > 10 MOhm for voltage). Ensure the correct physical wiring and software configuration are matched, as improper mode selection can lead to signal loading errors or damage to the input protection circuitry.

Field Installation Guidelines

  • Mounting: Secure the base module to a standard DIN rail or panel surface. Ensure the snap-on connector interface is aligned correctly with the communication adapter or processor to maintain reliable bus contact.
  • Grounding: Terminate cable shields to the system common ground at the cabinet entry point. The 500 VAC isolation between channels and ground is designed to suppress common-mode noise; however, effective cable shielding remains vital for maintaining 12-bit measurement accuracy.
  • Wiring: Maintain physical separation between analog input signal loops and any high-voltage power distribution lines to minimize electromagnetic interference. Use shielded twisted-pair cabling for all differential signal inputs to optimize signal-to-noise ratios.
