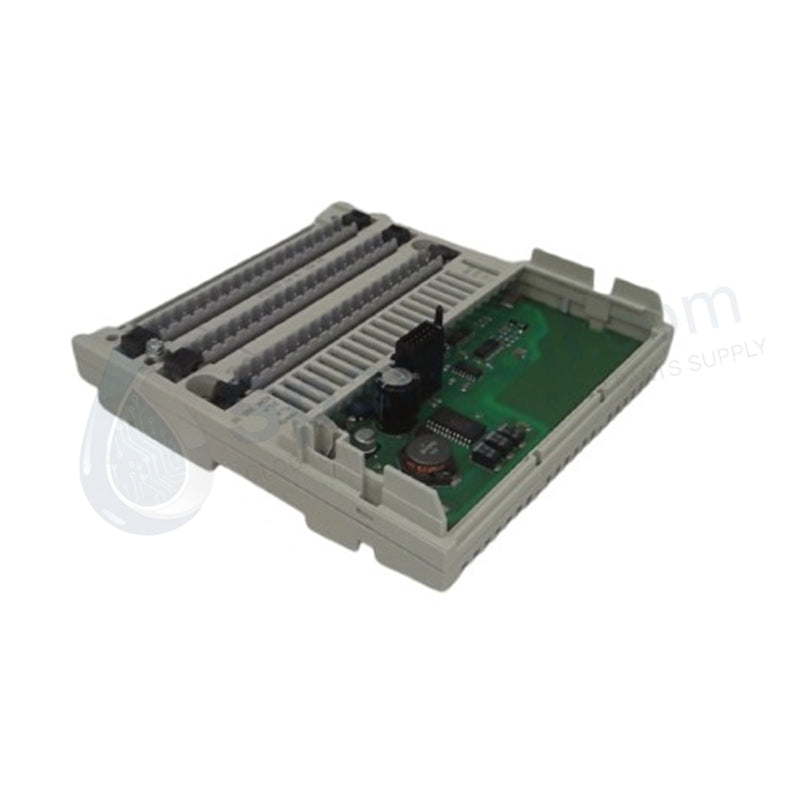

SCHNEIDER ELECTRIC 170ADM35010 Momentum Mixed I/O Module
Configured for mixed signal acquisition and control in Modicon Momentum platforms, the SCHNEIDER ELECTRIC 170ADM35010 (170ADM35010 Mixed I/O Base) provides direct physical/electrical execution.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 170ADM35010 |
| Brand | Schneider Electric |
| Origin | Manufacturer specified |
| Weight | 0.22 kg |
| Dimensions | Momentum standard footprint |
| Operating Temp | Industrial standard compliant |
| Power Consumption | 24 VDC logic |
| Input Channels | 16 Discrete (Sink) |
| Output Channels | 12 Discrete (Source) |
| Isolation | 500 VAC (I/O to logic) |
Profinet / EtherNet/IP Deterministic Networks and Performance
The 170ADM35010 integrates into distributed control architectures, facilitating deterministic I/O throughput via Momentum network adapters. The module architecture features high-speed transistor-based outputs capable of sub-millisecond response times, ensuring tight coupling between control logic and field actuators. Firmware flash compatibility within the Momentum communication ecosystem allows for optimized backplane bus communication velocity, minimizing latency across the distributed network. The module supports I/O density scaling by providing a high count of mixed discrete points on a single base, which streamlines cabling requirements in space-constrained control cabinets.
Frequently Asked Questions
Q: Does the 170ADM35010 support hot-swapping during operation?
A: No. The Momentum base module must be powered down prior to removal or insertion from the I/O base. Disconnecting the module while the backplane is energized may cause electrical transients or damage to the communication bus.
Q: How do the electronic output protections react to a short circuit?
A: The outputs feature integrated electronic protection that limits current flow during a short-circuit condition. The module will automatically enter a protected state to prevent hardware failure; once the fault is cleared, the output status must be reset by the controlling processor.
Field Installation Guidelines
- Mounting: Secure the module onto a 35 mm DIN rail or utilize the panel mount configuration. Ensure the module is properly seated against the I/O base to guarantee a robust backplane connection.
- Grounding: Terminate the 24 VDC common return to a low-impedance protective earth (PE) point within the cabinet. Ensure the I/O shielding is routed separately from high-voltage AC cabling to prevent noise induction.
- Wiring: Use the designated terminal blocks for discrete inputs and outputs. Verify that the current draw for any output group does not exceed the maximum 4 A rating to avoid thermal degradation of the output transistors.
