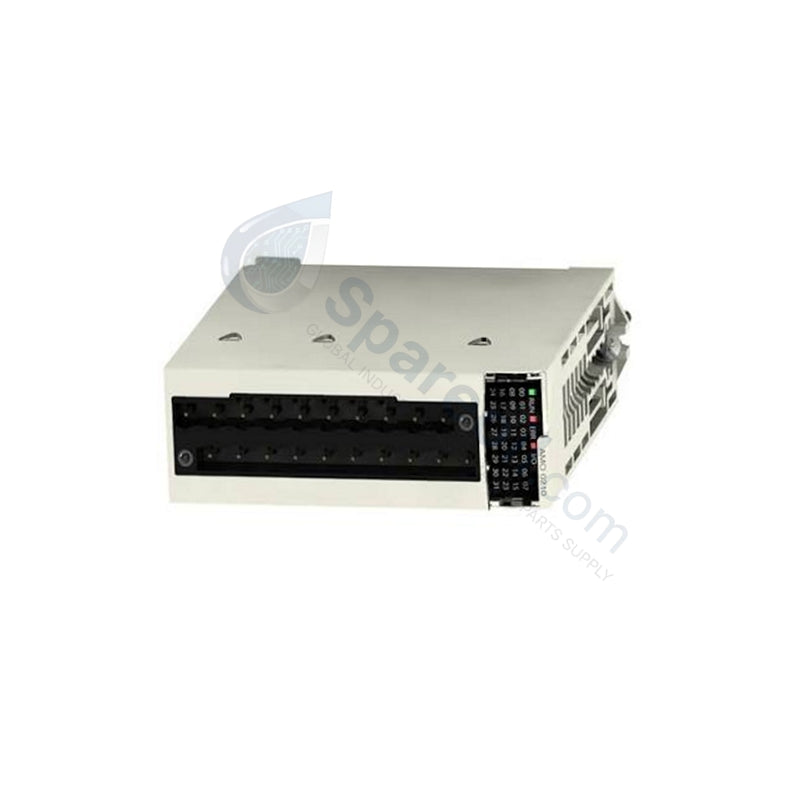

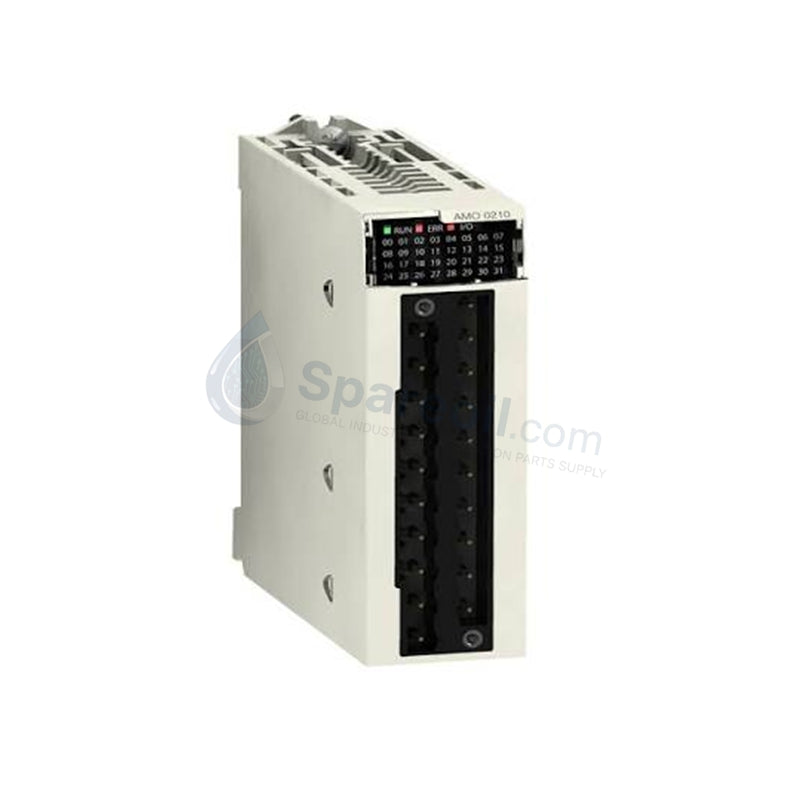

BMXAMI0810H Schneider Electric Analog Input Module

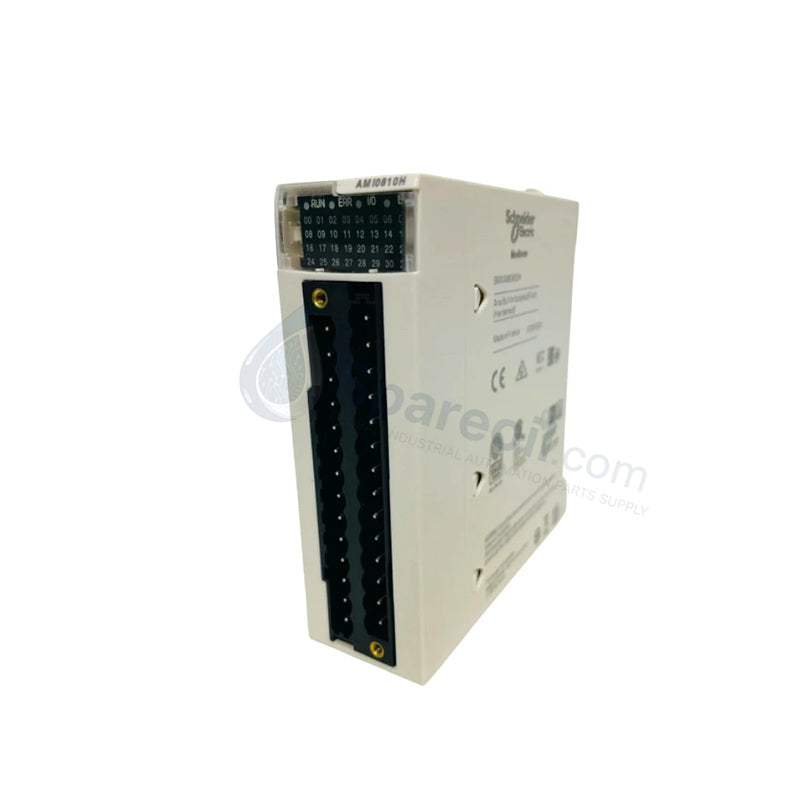

Schneider Electric BMXAMI0810H Modicon X80 Series

Schneider Electric BMXAMI0810H Modicon X80 Series

Availability: 94 left in stock

The Schneider Electric BMXAMI0810H, also cataloged as the BMXAMI0810H Isolated Analog Input Module, operates as a dedicated hardware component for...

SKU: BMXAMI0810H

Manufacturer: Schneider
Product No.: BMXAMI0810H
Product Type: Analog Input Modules
Product Origin: France
Payment:T/T, Western Union
Weight: 175g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

The Schneider Electric BMXAMI0810H, also cataloged as the BMXAMI0810H Isolated Analog Input Module, operates as a dedicated hardware component for high-speed analog signal acquisition within Modicon M340 and M580 PAC platforms.

Hardware Specifications

Parameter	Specification
Model	BMXAMI0810H
Brand	Schneider Electric (Modicon)
Origin	France
Weight	0.175 kg (Net) / 1.5 kg (Shipping)
Dimensions	32 x 100 x 86 mm
Operating Temp	-25 to +70 deg C
Power Consumption	1.54 W at 24 VDC
Analog Inputs	8 isolated channels
Input Ranges (Voltage)	+/-10 V, +/-5 V, 0-10 V, 0-5 V, 1-5 V
Input Ranges (Current)	+/-20 mA, 0-20 mA, 4-20 mA
Resolution	16-bit (15 bits + sign)
Input Impedance	10 MOhm (Voltage mode) / 250 Ohm (Current mode)
Isolation Voltage	300 VDC between channels / 1400 VDC channel-to-ground and channel-to-bus
Enclosure Rating	IP20
Conformal Coating	Yes (Ruggedized for severe environments)

Industrial Control & Backplane Communication

The module interfaces directly with the Modicon X80 backplane, utilizing internal supply voltages of 3.3 VDC and 24 VDC routed through the rack bus architecture. Bus communication velocity complies with deterministic Ethernet and PCI bus standards inherent to M340 and M580 backplane scaling, maintaining nominal 8-channel read cycles within 9 ms, or faster localized scanning via deterministic channel selection. The hardware features 16-bit A/D digital conversion resolution and maintains firmware flash compatibility with contemporary EcoStruxure Control Expert programming suites, preventing operational mismatches across distributed I/O drops.

Frequently Asked Questions

Q: Can the BMXAMI0810H be hot-swapped while the PAC rack is energized?

A: Hot-swapping (RIUP - Remove and Insert Under Power) depends strictly on the backplane rack model utilized. The hardware architecture allows insertion and removal under power only when installed in dedicated X80 Ethernet or combined backplanes that support active bus isolation, provided the safety locking screws are disengaged.

Q: How does the module react to a channel-to-channel isolation breach?

A: The module provides 300 VDC galvanic isolation between channels. If an electrical fault exceeds this threshold, the internal protective resistors may fail open, triggering the front-panel ERR LED (Red) and asserting a channel health bit fault within the PAC process image table.

Field Installation Guidelines

Mounting and Retention: Slot the module into the designated X80 rack position. Ensure the bottom locating tabs seat properly before pivoting the module upward. Secure the device by tightening the two integrated mounting screws to ensure reliable backplane bus connection.
Wiring Terminations: Connection requires a 28-pin removable terminal block (caged or spring type). Strip field wiring to specification and ensure all high-level signal pairs use twisted, shielded cables to suppress electromagnetic interference.
Shield Grounding: Terminate individual cable shields directly to the functional earth (FE) ground bar located at the base of the rack assembly. Do not loop or daisy-chain shield wires across multiple modules.
Environmental Constraints: For installations in severe environments, verify that the IP20 enclosure is housed inside an appropriately rated NEMA or IP-certified industrial control panel to maintain the integrity of the conformal coating against corrosive contaminants.
