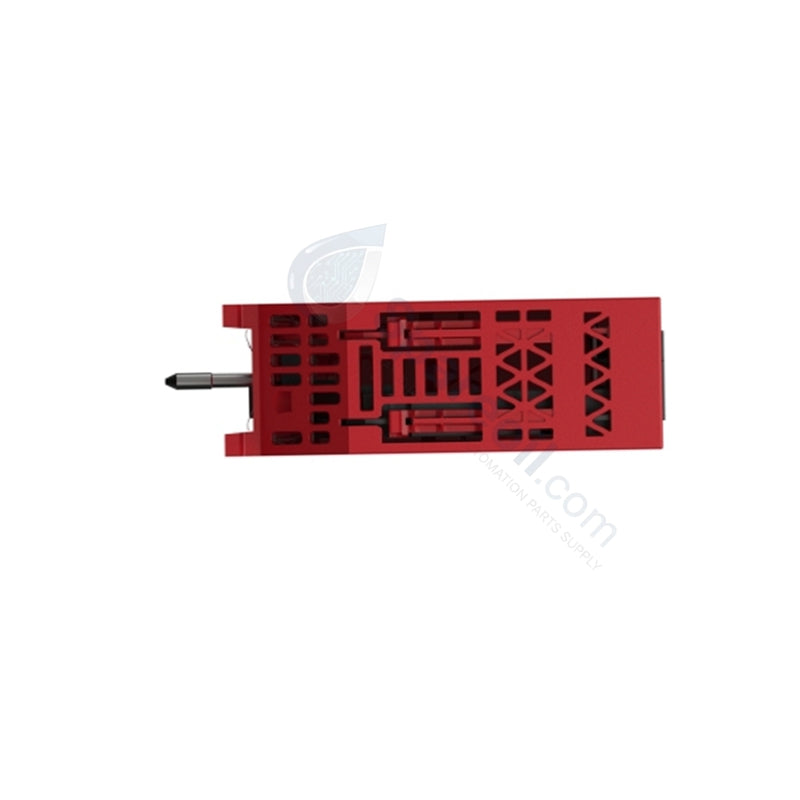

Schneider Electric BMXSAI0410 Modicon X80 Safety Analog Input Module

Schneider Electric BMXSAI0410 Modicon X80 Safety Analog Input Module

Availability: 94 left in stock

SCHNEIDER ELECTRIC BMXSAI0410 Modicon X80 Series The Schneider Electric BMXSAI0410, also cataloged as the BMXSAI0410 Safety Analog Input Module, operates...

SKU: BMXSAI0410

Manufacturer: Schneider
Product No.: BMXSAI0410
Product Type: Analog Input Modules
Product Origin: France
Payment:T/T, Western Union
Weight: 143g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

SCHNEIDER ELECTRIC BMXSAI0410 Modicon X80 Series

The Schneider Electric BMXSAI0410, also cataloged as the BMXSAI0410 Safety Analog Input Module, operates as a dedicated hardware component for 4-20 mA current loops processing within Modicon M340 and M580 safety automation platforms.

Hardware Specifications

Parameter	Specification
Model	BMXSAI0410
Brand	Schneider Electric
Origin	France
Weight	0.143 kg
Dimensions	32 mm x 134.6 mm x 86 mm
Operating Temp	-25 to +60 deg C
Power Consumption	200 mA at 3.3 V DC, 115 mA at 24 V DC
Analog Inputs	4 isolated channels
Input Type	Current 4-20 mA, resistive type input support
Overload Protection	Up to 25 mA
Input Impedance	286 Ohm
Resolution	13-bit (0-12500 counts) / 16-bit A/D conversion
Accuracy	<= 0.3% FS (4-20 mA, -25 to +60 deg C)
Conversion Cycle	6 ms for 4 channels
Isolation Voltage	500 V DC channel-to-channel; 1500 V DC channel-to-ground/bus
Safety Compliance	SIL 3, Category 4, PLd
Protection Rating	IP20

Deterministic Network Backplane and I/O Scaling

Operating within safety-critical architectures, the module interfaces with the hardware platform using high-velocity backplane bus communication velocity Licences to enforce synchronous loop sampling. Firm execution logic governs Profinet / EtherNet/IP deterministic networks parameters to route the isolated current data points to the primary safety CPU. Internal processing layers manage second-order digital filtering across a 6 ms conversion cycle, adjusting the dynamic I/O density scaling while maintaining 500 V DC galvanic separation between active loops to suppress channel cross-talk.

Frequently Asked Questions

Q: Can this module operate within a standard non-safety Modicon processor framework?

A: This functional hardware unit requires an explicit pairing with a designated Safety CPU execution layer and cannot execute safe state operations under standard process controllers.

Q: How does the physical dimension profile affect the mechanical layout of the chassis rack?

A: The physical height profile of this analog input module exceeds the clearance envelope of a standard X-bus or Ethernet backplane rack, requiring careful enclosure dimensioning prior to rack installation.

Field Installation Guidelines

Ensure complete isolation of all active field power paths before inserting the module into the local or remote X80 rack assembly.
Terminate all 4-20 mA field transducer wiring through the specified BMXFTB2000 20-way removable terminal block, verifying the torque specifications to maintain long-term connectivity.
Enforce standard separation distance rules between the low-voltage instrumentation loop cabling and any neighboring high-voltage electrical lines inside the channel raceways.
Connect the external cable grounding shields to the single ground reference bus bar of the cabinet to secure high noise attenuation performance.
