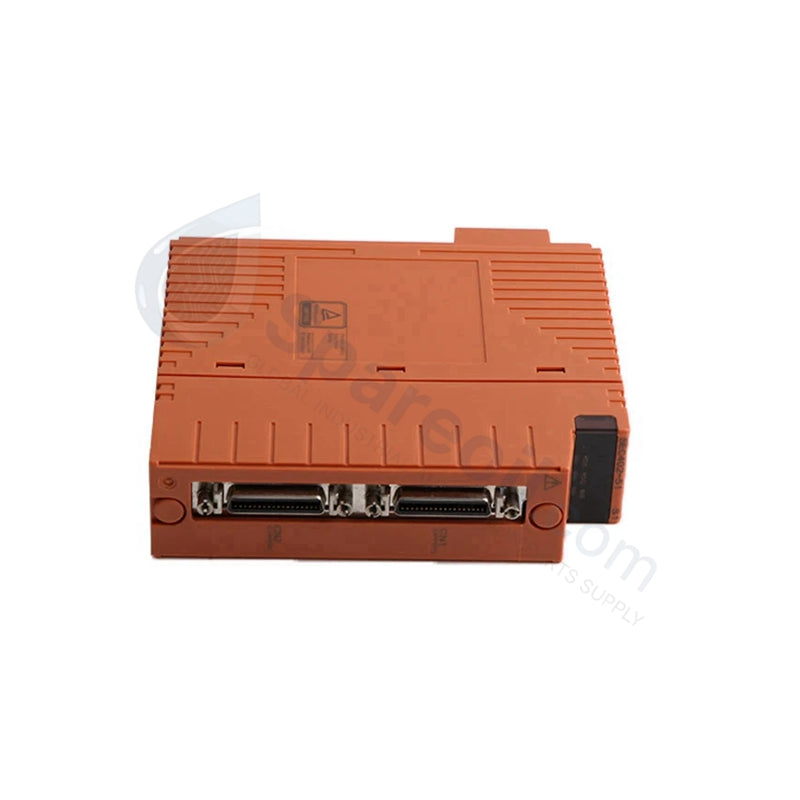

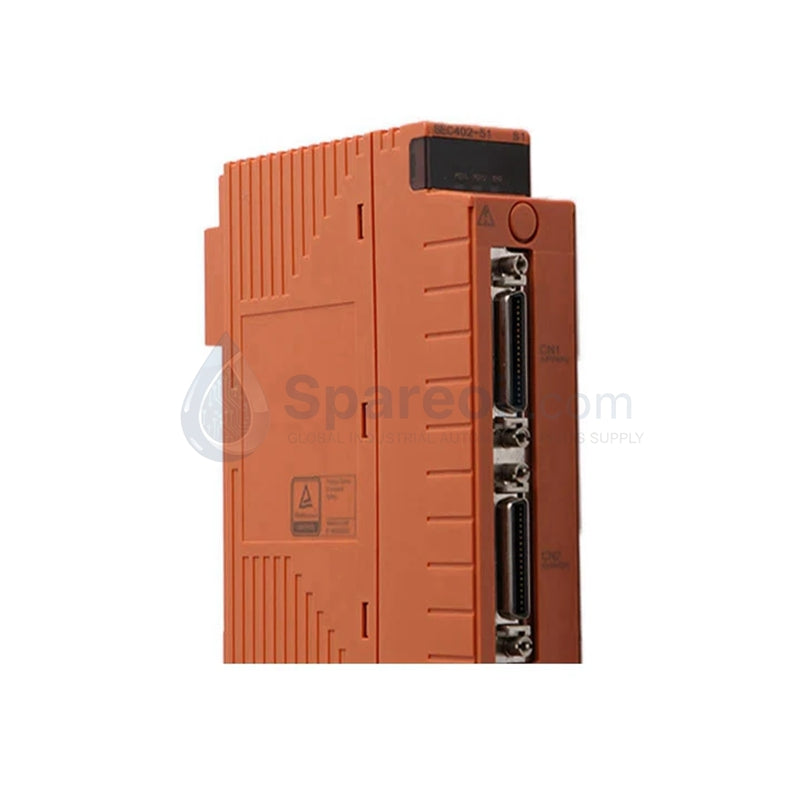

Yokogawa SEC402-51 ProSafe-RS Series Bus Coupler Module

The Yokogawa SEC402-51, also cataloged as the SEC402 ESB Bus Coupler Module, operates as a dedicated hardware component for safety node communication within ProSafe-RS platforms. The hardware establishes physical layer connectivity between the central safety control units (such as SSC60 or S2SC70) and distributed safety I/O node units via a dual-port serial bus interface.

Hardware Specifications

Parameter	Specification
Model	SEC402-51
Brand	Yokogawa
Origin	Japan
Weight	0.24-0.34 kg (Net), 2 kg (Shipping weight)
Dimensions	32.8 x 129.5 x 130 mm
Operating Temp	-20 to +70 deg C
Power Consumption	0.5 A typical at 24 VDC (Backplane supplied)
Transmission Speed	128 Mbps
Distance Limit	Maximum 10 m per segment
Mounting Location	Slot 7 and Slot 8 of safety control unit

Suffix Breakdown & Model Matrix

Code	Type	Selection Detail
SEC402	Base Model	ESB Bus Coupler Module (for 2-port)
-5	Hardware Variant	Standard type with no explosion protection
1	Protection Option	With ISA Standard G3 corrosion resistance

Process Control & Channel-to-Channel Isolation

The Yokogawa SEC402-51 functions as a high-speed master interface to manage deterministic I/O module data transmission over an isolated 128 Mbps backplane link. While executing cross-rack data coupling, the dual-port electrical design enforces signal separation between the upper and lower bus lines to prevent fault propagation across subracks. The integrated ISA Standard G3 conformal coating provides chemical isolation for the internal circuitry against corrosive gases, ensuring continuous electrical signaling integrity and preventing copper dendrite growth under harsh industrial environmental conditions.

Frequently Asked Questions

Q: How does the module execute hot-swap operations under an active safety system state?

A: The ProSafe-RS architecture does not permit the removal or insertion of the primary ESB master coupler module while the safety node is live and processing critical logic loops. Any modification requires a scheduled maintenance window or redundant pair switch-over configuration to prevent triggering a fail-safe shutdown sequence.

Q: What is the maximum node capacity supported by the dual-port configuration?

A: The module supports up to 9 safety node units connected per port under standard topology configurations (yielding 18 total). This capacity expands up to 12 modules per port via a star connection topology, provided the host controller firmware version matches the layout requirements.

Field Installation Guidelines

Slot Alignment Constraints: Install the module strictly into slot 7 or slot 8 of the safety control unit rack. Align the PCB edge with the plastic guides and push firmly until the backplane connectors seat completely, then fasten the retaining screws.
Bus Cable Length Restrictions: Maintain total cable lengths below the 10 m segment threshold for the upper and lower ESB interconnection links. Exceeding this boundary induces signal attenuation and transmission delays that violate safety instrumented loop timing constraints.
Shield Grounding and EMI Suppression: Ground the ESB bus cable shields at the designated safety earth terminal bar. Route the communication links away from high-power variable frequency drives and inductive switching elements to maintain data frame consistency at 128 Mbps.
