STB4S-00 Yokogawa CENTUM Series Datasheet & Technical Manual

Availability: 99 left in stock

Yokogawa STB4S-00 CENTUM Series Digital Input Terminal Module The Yokogawa STB4S-00, also cataloged as the STB4S Digital Input Terminal Module,...

SKU: STB4S-00

Manufacturer: Yokogawa
Product No.: STB4S-00
Product Type: Digital Input Terminal Modules
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

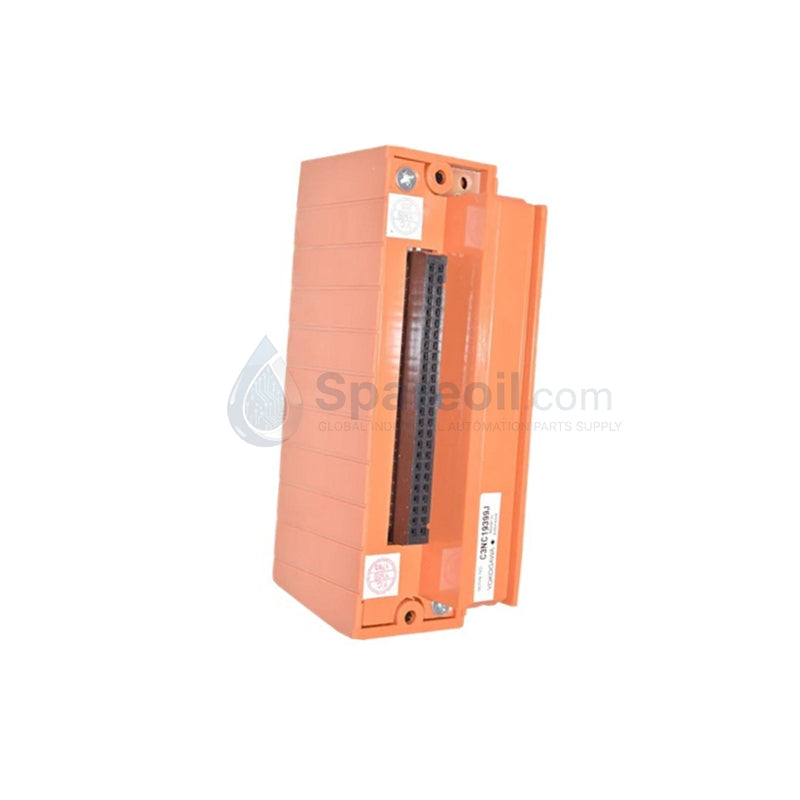

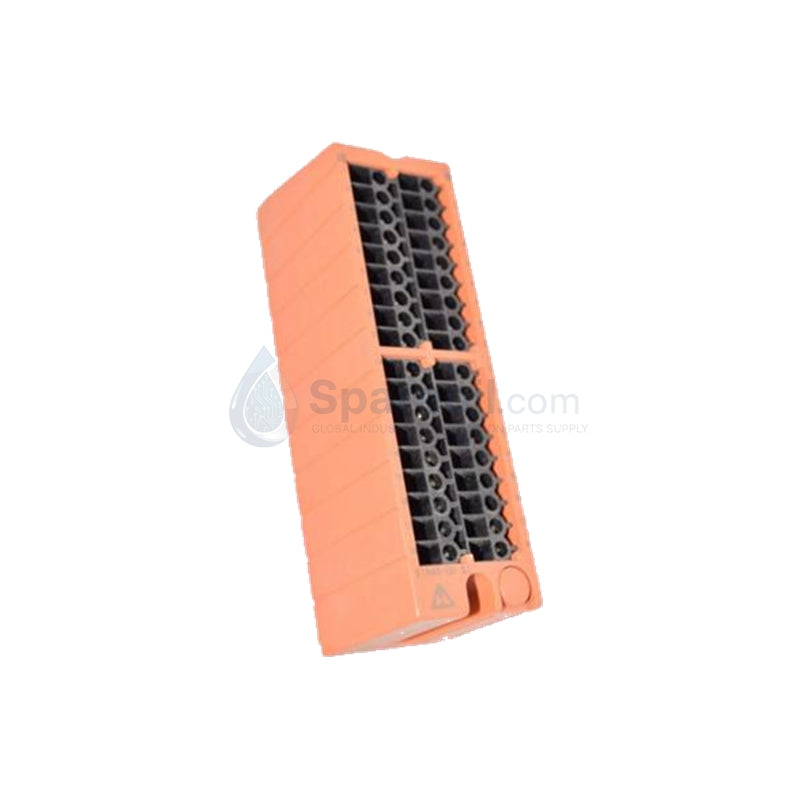

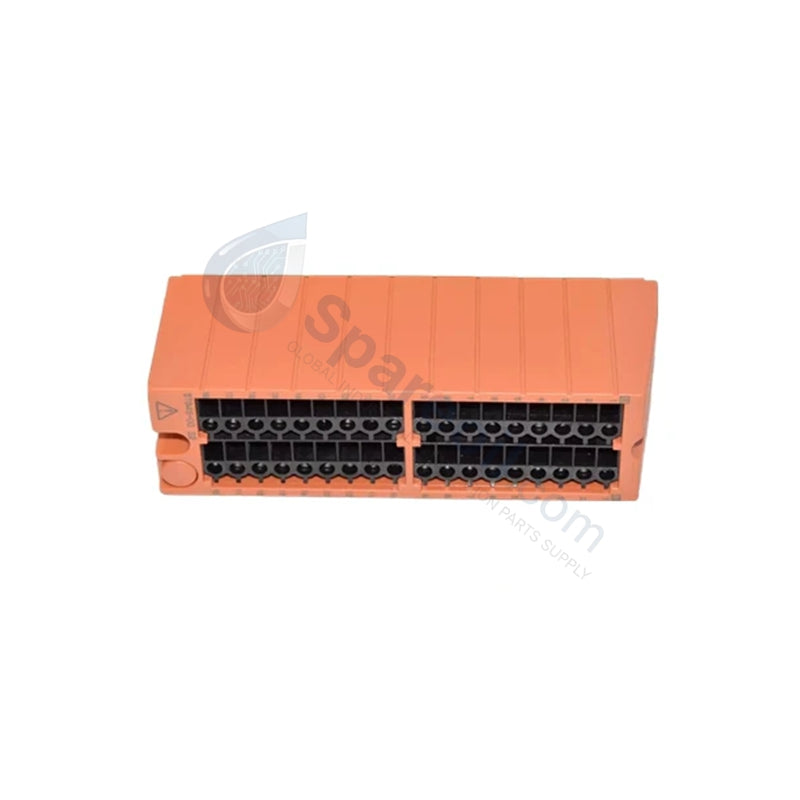

Yokogawa STB4S-00 CENTUM Series Digital Input Terminal Module

The Yokogawa STB4S-00, also cataloged as the STB4S Digital Input Terminal Module, serves as the primary STB4S Digital Input Terminal Block utilized to execute field wiring interface compilation across CENTUM VP and CENTUM CS3000 FIO platforms.

Hardware Specifications

Parameter	Specification
Model	STB4S-00 (Style S2)
Brand	Yokogawa
Origin	Japan
Weight	0.30 kg (Operational variance spectrum: 0.25-0.35 kg)
Dimensions	190 mm x 40 mm x 120 mm
Operating Temp	-20 to +60 deg C
Power Consumption	Passive bus allocation pattern (Driven via paired active I/O backplane allocation)
Supported I/O Type	16-channel Digital Input (DI) configurations
Terminal Topology	Screw-clamp terminal block architecture
Total Terminal Points	32 terminals (16 discrete signal tracks + 16 common returns)
Rated Voltage Limits	250 V AC/DC
Continuous Current	2 A maximum per individual terminal path
Insulation Resistance	Minimum 100 MOhm @ 500 VDC
Dielectric Strength	1500 V AC sustained for 1 minute duration
Field Wire Gauge Range	0.5-2.5 mm2 (AWG 20-14)
Assembly Mounting	Direct installation on S2B base units (S2BN1D, S2BN2D, etc.)
Relative Humidity	10% to 90% RH, non-condensing

Process Control & DCS Instrumentation Properties

The Yokogawa STB4S-00 implements direct channel-to-channel isolation safeguards through its 32-point contact termination grid, isolating distinct discrete loops from adjacent high-voltage transient surges. The hardware layout coordinates physical routing pathways that optimize 4-20 mA HART loop protocol tracking when running auxiliary diagnostic lines alongside primary discrete loops. The module architecture prevents cross-talk signal corruption by maintaining separate physical grounding rails for each common terminal return path, ensuring precise state changes over long-distance field cable paths.

Frequently Asked Questions

Q: How does the lack of internal hot-swap protection affect servicing routines on active 16-point digital input fields?

A: The STB4S-00 terminal module is a completely passive wiring block that connects to live I/O lines. You must de-energize all field circuits connected to the 32 terminal points before removing any conductors or separating the module from its S2B base plate to prevent arcing and terminal damage.

Q: Which 16-channel digital input assemblies match the internal pin mapping of this specific module interface?

A: The board layout matches the internal circuitry of standard FIO 16-point digital input modules, such as the SDV144 and SDV531 safety cards. Using mismatched components breaks the intended pin matrix, causing incorrect signal mapping across the 16 signal tracks and 16 common returns.

Q: What insulation boundaries prevent noise from crossing between adjacent channel common returns?

A: The hardware has a rated dielectric strength of 1500 V AC for 1 minute between the field terminals and the underlying system backplane, and a minimum insulation resistance of 100 MOhm at 500 VDC. This design blocks electrical noise, ground shifts, and common-mode transients from corrupting data on adjacent channels.

Field Installation Guidelines

Base Plate Mechanical Engagement: Align the terminal block with the mating guides on the S2B series base unit (e.g., S2BN1D or S2BN2D). Press the assembly downward until the rear multi-pin connector seats completely, then tighten the captive screws to ensure uniform grounding.
Screw-Clamp Conductor Termination: Strip the insulation on the AWG 20-14 field wires back by specified factory lengths. Insert the raw copper strands fully into the screw-clamp terminal opening and torque the screw down to prevent high-resistance connection points in high-vibration environments.
Signal Track Separation: Route all discrete input wiring through separate, dedicated plastic wire ducts inside the enclosure panel layout. Keep these low-voltage signal cables isolated from high-current AC power cables or motor drive links to prevent electromagnetic noise induction.
Shield Grounding Termination: Connect the outer shield wire of any field input cable to the main instrument ground bar at the cabinet entry bulkhead. Do not ground both ends of the shield to avoid creating ground loops that can cause signal errors on the 16-channel tracking network.
