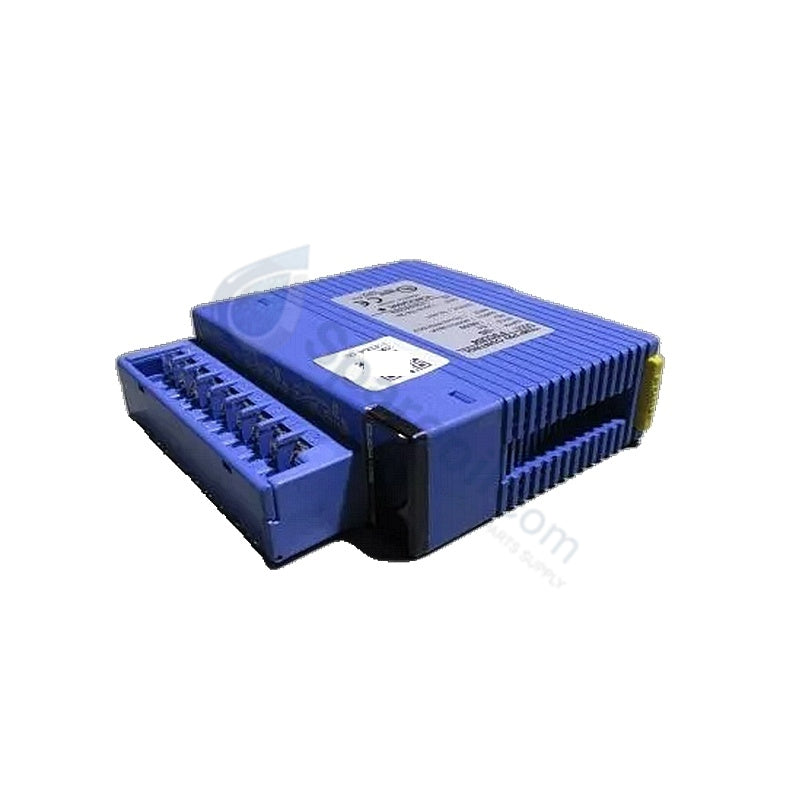

Yokogawa F3CU04-0S/Z01 Temperature Control & PID Module

The Yokogawa F3CU04-0S/Z01, also cataloged as the F3CU04-0S Temperature Control & PID Module, operates as a dedicated hardware component for closed-loop temperature and process control execution within FA-M3 PLC platforms.

Hardware Specifications

Parameter	Specification
Model	F3CU04-0S/Z01
Brand	Yokogawa
Origin	Japan
Weight	200 g (1.10 lbs packaging weight)
Dimensions	28.9 (W) x 100 (H) x 106.1 (D) mm
Operating Temp	0 deg C to +55 deg C
Storage Temp	-20 deg C to +70 deg C
Power Consumption	460 mA at 5 VDC (24 VDC external auxiliary input at 50 mA)
Control Loops	4 loops (independent)
Slot Size	Single-slot
Input Types	Universal: Thermocouple (15 types), RTD (9 types), DC voltage (mV/V)
Sampling Period	200 ms (4 loops), 100 ms (2 loops)
Input Accuracy	+/-0.1% of full scale
Input Resolution	0.1 deg C
Isolation	Photocoupler and transformer isolation, withstand 1500 VAC for 1 min
Output Type	Time-proportional PID (open collector, relay/SSR compatible)
Alarm Functions	12 types (upper/lower limit, deviation alarms)
Alarm Outputs	4 points per loop (with relay linkage for alarms 1 & 2)
Auto-tuning	Dynamic auto-tuning with fuzzy logic overshoot suppression
Control Modes	Cascade control, Heating/Cooling control supported

Channel Isolation and Cold Junction Compensation

The module incorporates transformer and photocoupler isolation across input channels, yielding a dielectric withstand strength of 1500 VAC for 1 minute between signal inputs and internal logic circuitry. Integrated cold junction compensation (CJC) processing operates across all configurable thermocouple ranges, converting microvolt-level thermoelectric potentials into calibrated 0.1 deg C digital values. Sensor input terminals support universal wiring topologies, allowing differential analog sampling for thermocouples, 3-wire RTDs, and low-level DC voltage inputs without external signal conditioning barriers.

Frequently Asked Questions

Q: What input sampling speeds are achieved across active control loops? A: The module executes input sampling and PID calculation every 200 ms when operating all 4 loops, or accelerates to 100 ms when restricted to 2 loops.

Q: What cold junction compensation and isolation features protect the temperature inputs?

A: Internal CJC circuitry auto-corrects thermocouple readings while transformer and photocoupler isolation prevents field noise up to 1500 VAC from entering the FA-M3 backplane bus.

Q: How does the dynamic auto-tuning capability handle setpoint variations? A: The module calculates optimal PID parameters automatically upon startup and recalculates constants when operators adjust setpoints or process conditions shift during operation.

Field Installation Guidelines

Insert the single-slot module into a designated rack slot on the FA-M3 base unit until the lock mechanism engages. Allow a minimum warm-up period of 30 minutes following power application before conducting calibration or active process execution. Route thermocouple and RTD wiring away from high-voltage motor power leads using grounded shielded cable to minimize electromagnetic interference. Ground cable shields at a single point on the main system signal ground busbar. Verify that any threaded conduit entries achieve a minimum engagement of 5 full NPT threads to satisfy enclosure integrity standards.
