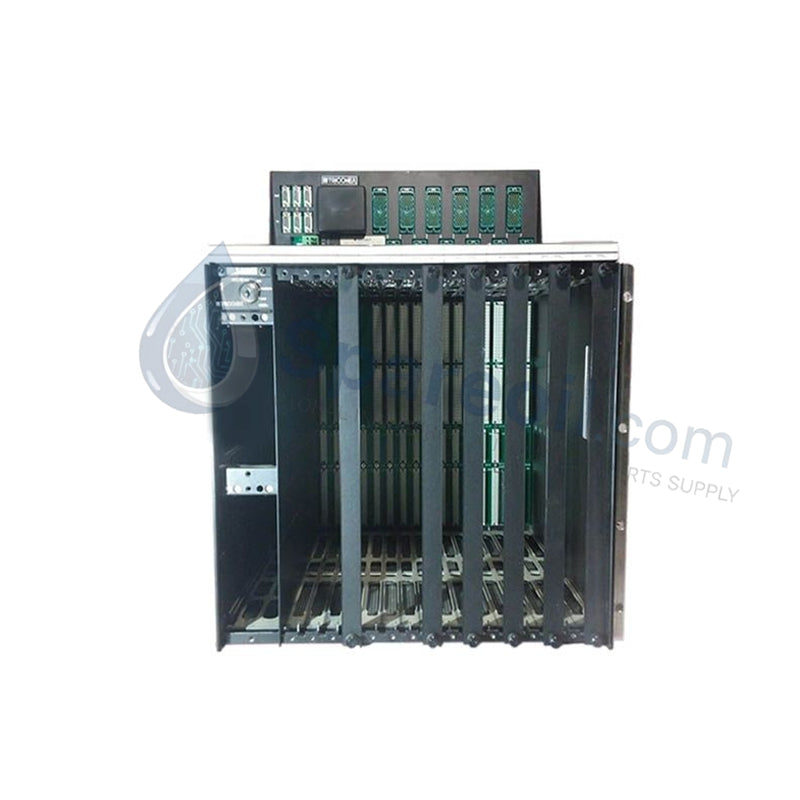

Triconex 8110 SIL 3 Safety Instrumented System Rack

Triconex 8110 SIL 3 Safety Instrumented System Rack

Availability: 10 left in stock

Product Overview The Triconex 8110 High Density Main Chassis serves as the structural and electronic foundation for the Triconex Triple Modular Redundant...

SKU: 8110N2

Manufacturer: Triconex
Product No.: 8110N2
Product Type: Main Chassis Racks
Product Origin: USA
Payment:T/T, Western Union
Weight: 30000g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

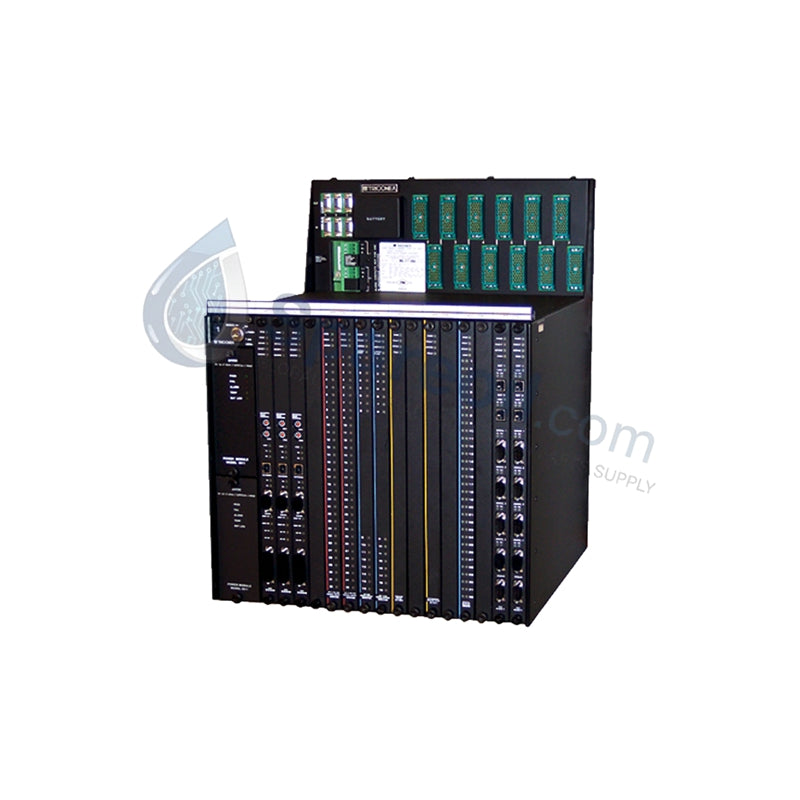

The Triconex 8110 High Density Main Chassis serves as the structural and electronic foundation for the Triconex Triple Modular Redundant (TMR) controller. It houses the main processors and communication modules required for mission-critical Safety Instrumented Systems (SIS). We supply this chassis as 100% brand new and original, ensuring it provides the fault-tolerant backplane necessary for SIL 3-rated safety loops. Featuring six dedicated RS-485 I/O expansion bus ports, the 8110 chassis allows for seamless system scaling and secure data routing across channels A, B, and C.

Technical Specifications

The 8110 chassis integrates high-speed communication ports with physical security features:

Feature	Specification Details
Model Number	8110
Product Type	High Density Main Chassis
Expansion Ports	6 RS-485 I/O Expansion Bus Ports
Channel Routing	Two sets of ports for Channels A, B, and C
Security	Four-position keyswitch (Stop, Run, Program, Remote)
Safety Integrity	SIL 3 Compliant Infrastructure
Shipping Weight	30 kg
Dimensions	2.2 cm × 40.5 cm × 40 cm
Condition	100% Brand New Original

Engineering Advantages

Fault-Tolerant Backplane: The 8110 chassis utilizes a redundant backplane design that supports the TMR architecture. It isolates signals for Channels A, B, and C, ensuring that a fault in one communication path never compromises the integrity of the remaining safety processors.
Extensive I/O Scaling: Six RS-485 ports facilitate the connection of multiple expansion chassis. This allows engineers to scale the system for high-density I/O requirements in large-scale refinery or power generation projects without sacrificing signal speed or reliability.
Physical Security Control: The integrated four-position keyswitch provides hardware-level security. It prevents unauthorized logic changes by locking the system into specific operating modes (Stop, Run, Program, or Remote), meeting strict regulatory compliance standards.
Ruggedized Industrial Build: Despite its high-density port configuration, the 8110 chassis withstands significant mechanical stress and vibration. Its 30 kg industrial-grade frame ensures stable mounting for the heavy-duty processing modules it houses.

FAQs

Does the 8110 chassis include the power supply modules?

The 8110 is the main chassis frame. While it contains the backplane and expansion ports, you must purchase the power modules and processing cards separately.
How do the RS-485 ports handle redundant communication?

The chassis provides two sets of ports for each of the three redundant channels (A, B, and C). This ensures that even if one expansion cable fails, the TMR processors maintain continuous communication with the remote I/O modules.
What is the significance of the "High Density" designation?

"High Density" refers to the chassis’s ability to support the latest generation of compact, high-capacity Triconex modules, maximizing the number of I/O points and communication paths within a standard cabinet footprint.
