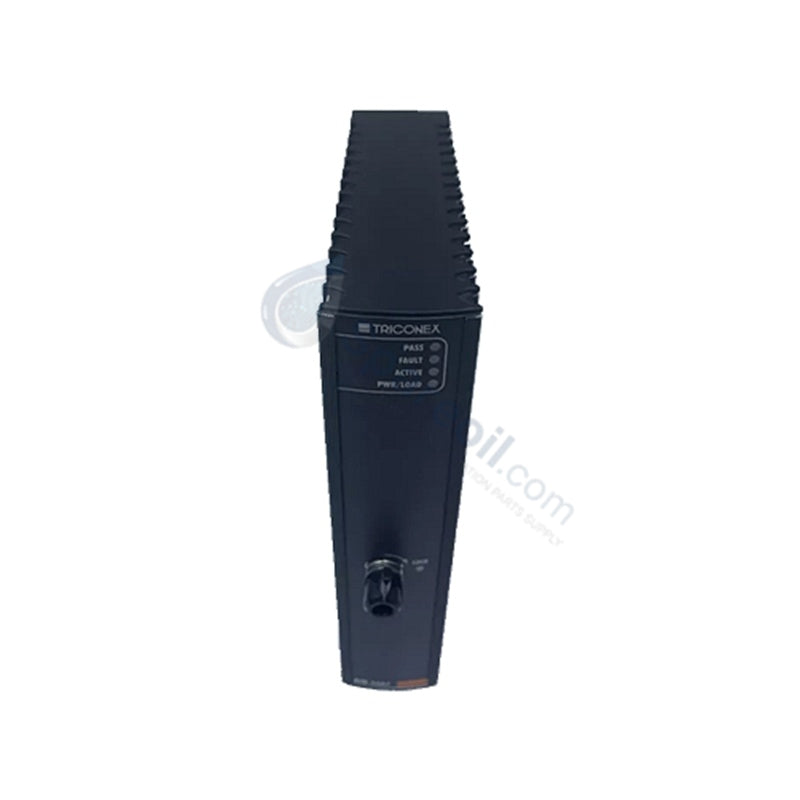

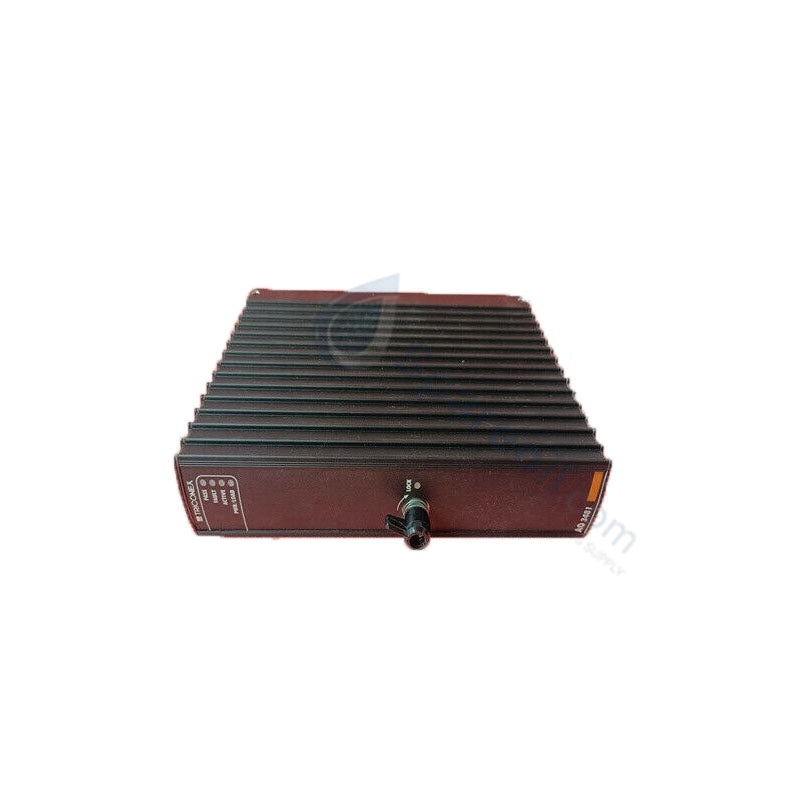

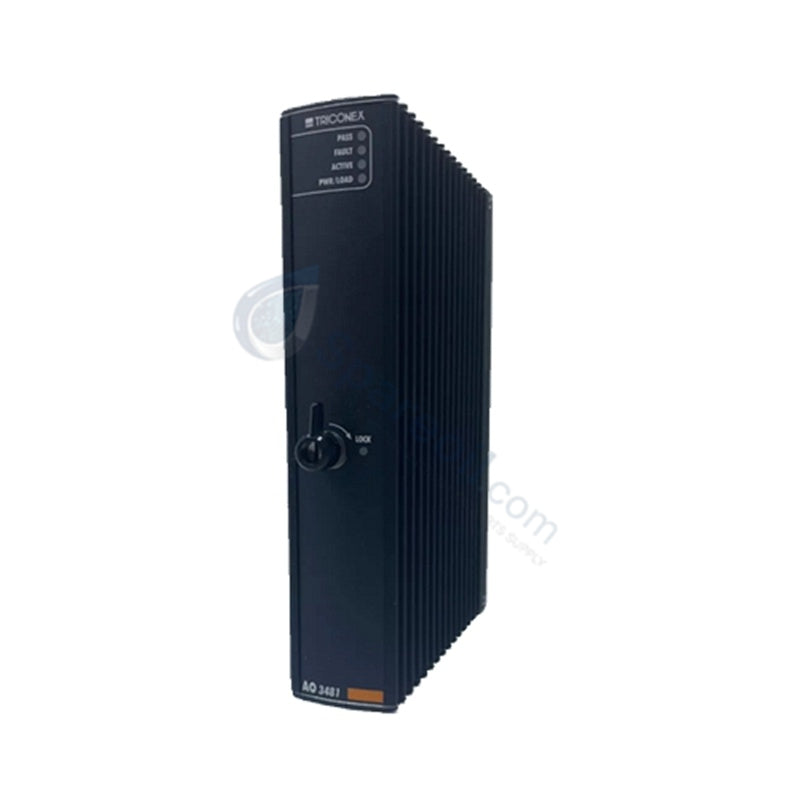

Triconex AO3481 TMR Analog Output Module

The Triconex AO3481, also cataloged as the AO3481 Analog Output Module, operates as a dedicated hardware component for converting field-level current signals into continuous analog control loops within Triconex safety and control systems.

Hardware Specifications

Parameter Specification
Model AO3481
Brand Triconex
Origin Mexico
Weight 1.5 kg
Dimensions 4.4 cm × 21.6 cm × 19.1 cm
Operating Temp 0-50 deg C
Power Consumption Determined by external loop requirements
Output Points 4, common-return, DC-coupled
Output Current Range 0-22 mA (standard), 4-40 mA (extended mode)
Resolution 12 bits
Accuracy <0.25% of Full Scale Range (FSR)
External Loop Power 24 VDC nominal, 32 VDC max

High-Reliability Safety Control and TMR Architecture

The Triconex AO3481 features three isolated electronic channels that independently process digitized data from the main controllers. Integrated voter circuitry evaluates the execution paths and selects one functional channel to drive the physical output loop. This triple modular redundancy (TMR) 2oo3 architecture enables the module to maintain precise signal continuity even during a single channel fault or multiple physical component failures. Galvanic isolation barriers protect the internal backplane logic from ground loops and external loop transients. The module executes a forced-switch diagnostic (FSD) at regular intervals to verify the switching logic and ensure fail-safe state execution, transferring the driving leg to a redundant path within 1-3 ms upon a detected failure without generating process signal disturbances.

Frequently Asked Questions

Q: How long does the module take to transfer the current loop load when a drive channel fails?

A: The internal voting and drive circuitry completes the channel switchover within 1-3 ms typical following a leg failure, preventing any significant drop in the 4-20 mA field actuator loop signal.

Q: Can this module be hot-swapped online without causing output variations?

A: Yes, the system architecture supports automatic switchover to an adjacent hot-spare module. The online insertion or extraction process executes without interrupting the active safety loop or causing spikes on the analog outputs.

Field Installation Guidelines

  • Mechanical Verification: Verify that the baseplate slot corresponds to Model 2481, 2483, or 2483A specifications. The integrated mechanical keying slots on the module chassis must align with the baseplate pins to permit insertion.
  • Chassis Insertion: Slide the module into the baseplate guides firmly until the high-density interface pins seat completely. Tighten the front panel retention screws to secure structural and grounding continuity.
  • Loop Wiring and Shielding: Route the 4-20 mA actuator lines using twisted-pair cables with overall shielding. Ground the cable shields explicitly at the external termination panel ground bus bar to prevent common-mode noise.
  • External Power Supply: Ensure the external loop power supply is regulated to 24 VDC nominal and remains strictly below the 32 VDC maximum threshold to protect the output drivers from overvoltage damage.
