TSX DET3242 Schneider Electric Modicon Momentum Datasheet

TSX DET3242 Schneider Electric Modicon Momentum Datasheet

Availability: 10 left in stock

Schneider Electric TSX DET3242 Modicon Momentum Series Configured for monitoring and controlling digital signals in Modicon Momentum PLC networks, the...

SKU: TSXDET3242

Manufacturer: Schneider
Product No.: TSXDET3242
Product Type: Digital I/O Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

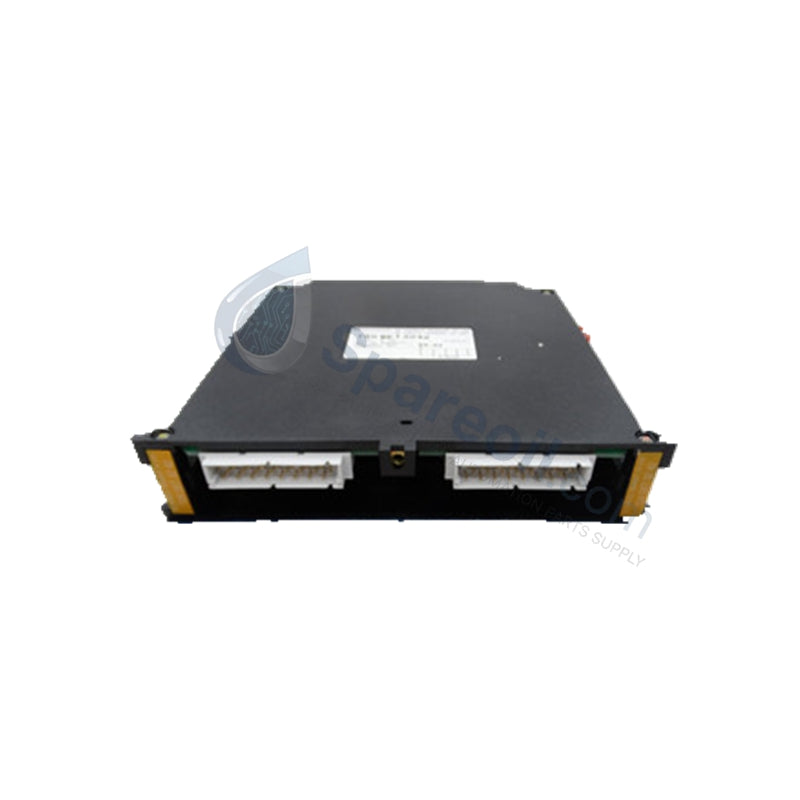

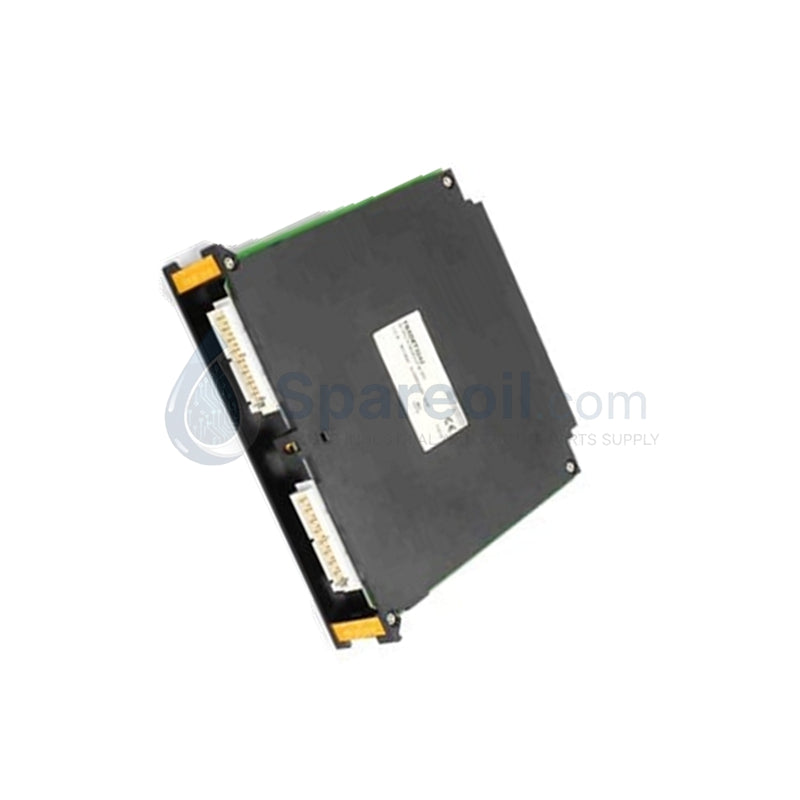

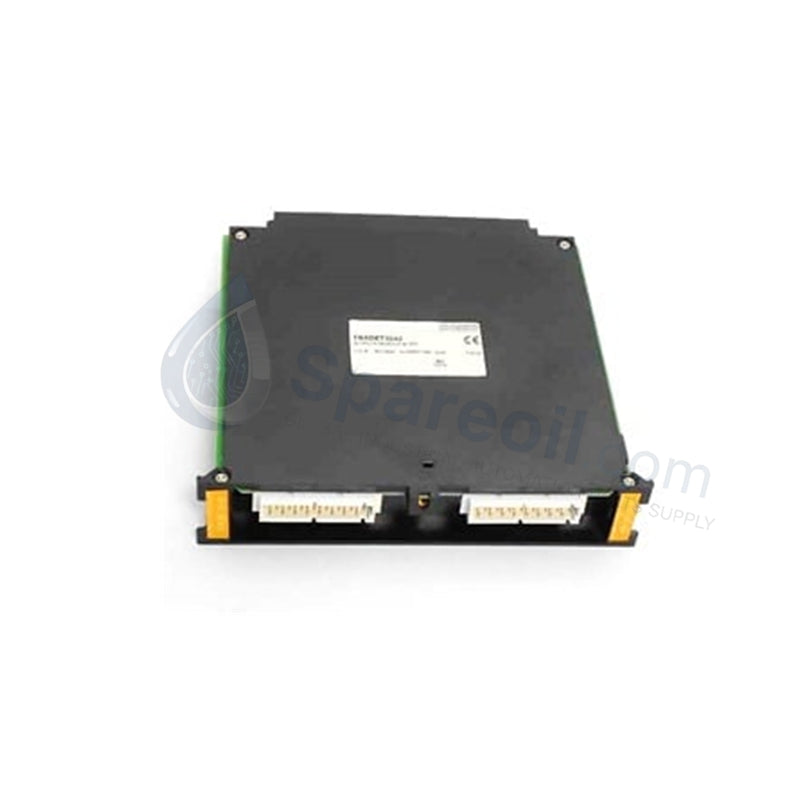

Schneider Electric TSX DET3242 Modicon Momentum Series

Configured for monitoring and controlling digital signals in Modicon Momentum PLC networks, the Schneider Electric TSX DET3242 (TSX DET3242 Digital I/O Module) provides direct physical/electrical execution. This hardware component processes 24 VDC discrete transitions, establishing interface links between field devices and the system backplane without modifying upstream network layout definitions.

Hardware Specifications

Parameter	Specification
Model	TSX DET3242 (TSX-DET-3242)
Brand	Schneider Electric
Origin	France
Weight	0.25 to 0.3 kg (0.88 lbs)
Dimensions	130 mm x 40 mm x 120 mm
Operating Temp	0 to +60 deg C
Power Consumption	24 VDC nominal internal draw
Channels	32 digital channels (configurable as inputs/outputs)
Signal Type	24 VDC
Input Characteristics	Logic 1 >= 15 VDC, Logic 0 <= 5 VDC
Output Characteristics	24 VDC, max. 0.5 A per channel
Isolation	Galvanic isolation between channels and system bus
Response Time	<= 1 ms
Storage Temperature	-40 to +85 deg C
Protection Class	IP20
Certifications	CE, UL, CSA, RoHS

Profinet / EtherNet/IP Deterministic Networks Integration

The TSX DET3242 interfaces directly with underlying communication adapters to achieve compatibility with Profinet / EtherNet/IP deterministic networks. Bus execution speeds are maintained by mapping the high-density 32-channel register layout onto the localized processor map in under 1 ms. This layout ensures predictable deterministic updates across remote drops while maintaining isolation between high-speed industrial network traffic and local field-side discrete electrical interfaces.

Frequently Asked Questions

Q: Can this module process 120 VAC discrete signals if the external field distribution loops are modified?

A: No. The TSX DET3242 is strictly designed for 24 VDC signal levels. Exposing the discrete input or output circuits to AC voltage thresholds will destroy the internal galvanic isolation circuitry and functional logic paths.

Q: How does the channel-to-channel configuration alter the physical backplane power budget?

A: The passive backplane interfaces directly with the master module adapter. While configuring channels as inputs or outputs alters field-side power distribution requirements, internal system bus power draw remains uniform under full operational I/O density scaling.

Q: Is hot-swapping supported for the TSX DET3242 module during active CPU operations?

A: No. Removing the module from its base during live bus operations will break the deterministic communication loop and trigger an immediate I/O bus fault within the connected controller.

Field Installation Guidelines

Enclosure Specifications: Mount the assembly horizontally or vertically inside an industrial control cabinet providing minimum IP20 ingress protection. Maintain 50 mm clearance from wiring ducts to allow appropriate heat dissipation.
Grounding Protocols: Ensure the DIN rail or panel mounting surface is cleanly bonded to the master enclosure grounding grid. Field wiring shields must be terminated at a single external grounding bar to suppress electromagnetic interference.
Wiring Conductors: Use copper conductors rated for the operating temperature range. Separate discrete 24 VDC I/O lines from high-voltage AC supply cables and variable frequency drive outputs to eliminate signal cross-talk.
