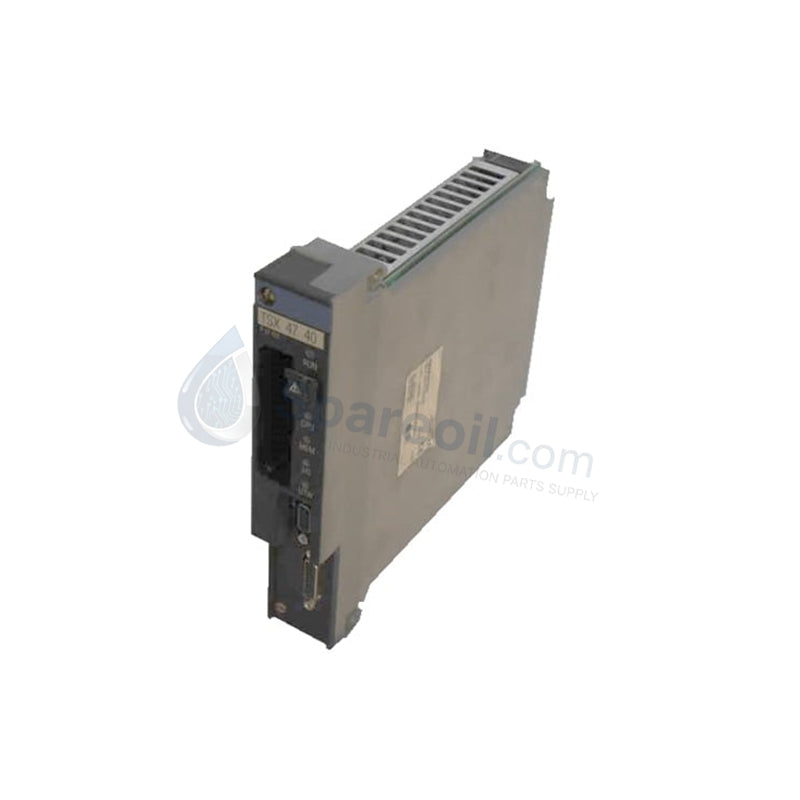

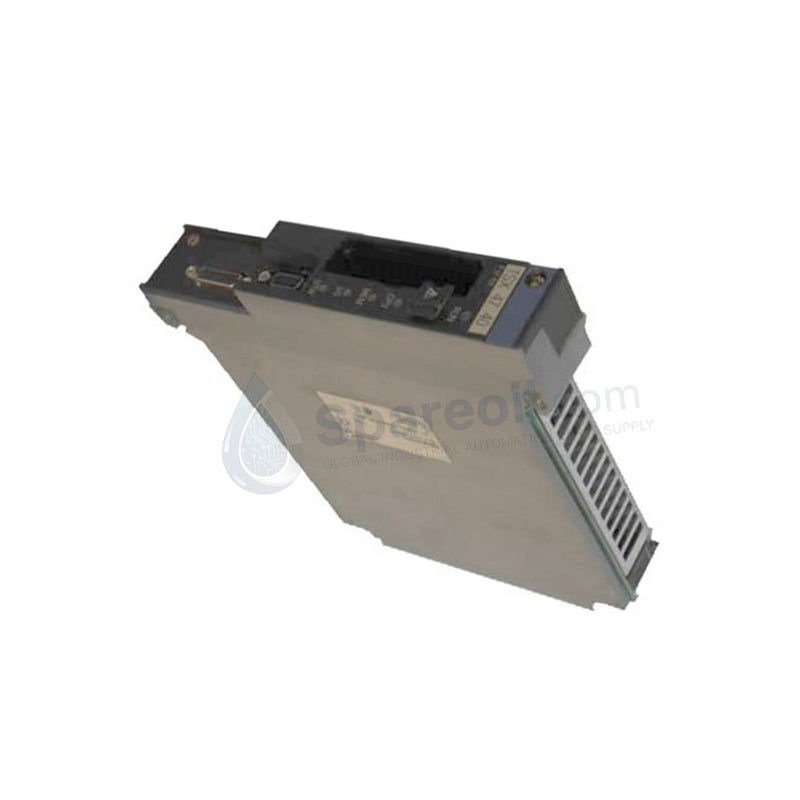

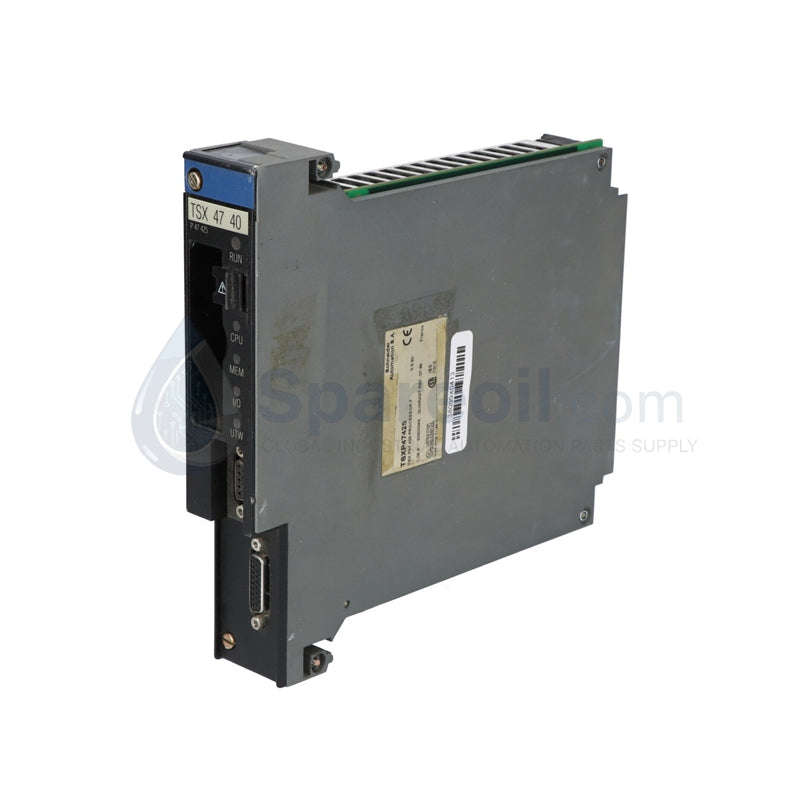

TSX P47425 Schneider Electric Power Supply | New & Original Stock

TSX P47425 Schneider Electric Power Supply | New & Original Stock

Availability: 10 left in stock

Schneider Electric TSX P47425 Modicon TSX Premium Series The Schneider Electric TSX P47425, also cataloged as the TSX-P474-25 Power Supply...

SKU: TSXP47425

Manufacturer: Schneider
Product No.: TSXP47425
Product Type: Power Supply Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 800g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Schneider Electric TSX P47425 Modicon TSX Premium Series

The Schneider Electric TSX P47425, also cataloged as the TSX-P474-25 Power Supply Module, operates as a dedicated hardware component for supplying regulated DC power within Modicon TSX Premium PLC systems. Configured for high-power distribution across the internal chassis backplane, this module directly executes raw AC-to-DC conversion loops, driving connected CPU and I/O modules without inline external step-down transformers.

Hardware Specifications

Parameter	Specification
Model	TSX P47425 (TSX-P474-25)
Brand	Schneider Electric
Origin	France
Weight	0.8 to 1.0 kg (2.60 lbs)
Dimensions	130 mm x 40 mm x 120 mm
Operating Temp	0 to +60 deg C
Power Consumption	600 W power rating
Input Voltage	100-240 V AC, 50/60 Hz
Output Voltage	24 VDC
Output Current	Up to 25 A (depending on load configuration)
Isolation	Galvanic isolation between input and output
Protection Matrices	Overload, short-circuit, and thermal protection
Storage Temperature	-40 to +85 deg C
Protection Class	IP20
Certifications	CE, UL, CSA, RoHS

Backplane Bus Communication Velocity Licences and Power Execution

The TSX P47425 establishes immediate electrical continuity upon mechanical insertion into the TSX Premium rack assembly. It energizes the communication traces, maintaining the exact voltage thresholds required to sustain standard backplane bus communication velocity across all active slots. By provisioning up to 25 A on the internal rail, the module mitigates downstream voltage sags during high-density I/O switching cycles, maintaining data bus signal integrity without forcing clock-cycle throttling or communication delays across remote sub-racks.

Frequently Asked Questions

Q: Does the TSX P47425 support hot-swapping under active rack backplane communication velocity?

A: No. Extraction or insertion of the primary power module while the AC input line is energized can generate severe voltage transients, causing data corruption on the system bus or permanent electrical damage to the master processor.

Q: What are the internal failure states if the total output current demand exceeds 25 A?

A: The module transitions into an overload protection state, folding back the 24 VDC output loop to prevent thermal destruction. Once the over-current condition is physically isolated, the system executes an automated recovery cycle depending on the specific hardware revision.

Q: Can this unit run on DC input voltage sources instead of the nominal 100-240 VAC range?

A: No. The internal rectifier and transformer stages are explicitly engineered for 50/60 Hz alternating current. Connecting a DC source to the primary input terminals will prevent power conversion and may damage the front-end input stage.

Field Installation Guidelines

Mounting Orientation: Slide the unit firmly into its designated power supply slot on the Modicon TSX Premium rack. Ensure the locking mechanisms lock securely to guarantee reliable grounding contact with the backplane frame.
Cabinet Environment: Install the complete rack assembly inside a clean, dry control enclosure providing an IP20 minimum rating. Maintain clear ventilation paths above and below the power module to prevent localized heat accumulation beyond the +60 deg C threshold.
Primary Power Wiring: Connect input power lines using conductors sized for the 600 W nominal rating. Route the incoming AC lines through dedicated wire ducts separated from low-voltage DC communication cables to prevent electro-magnetic induction.
