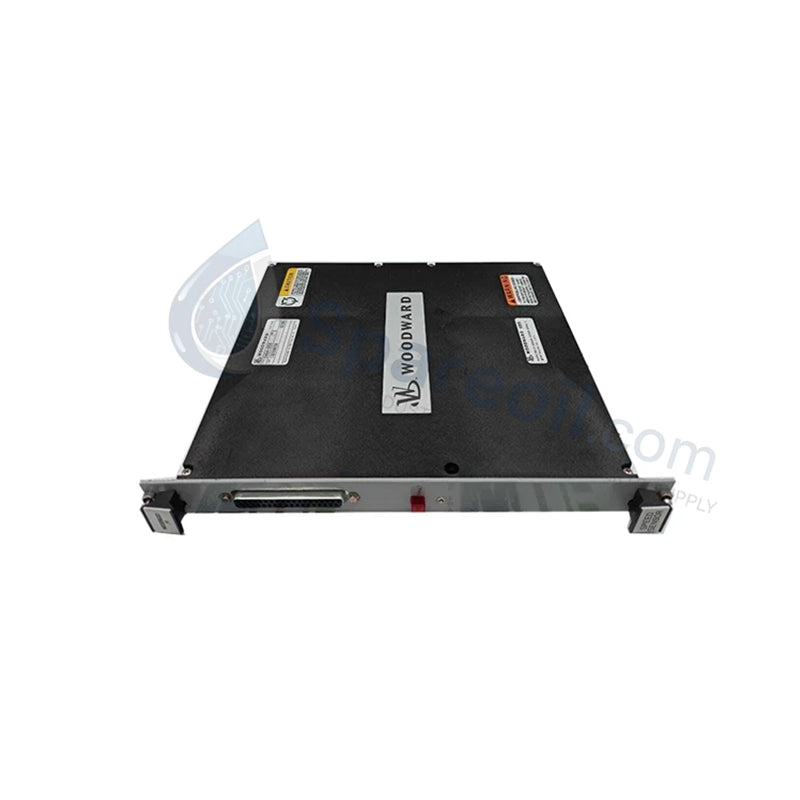

Woodward 5463-783 NetCon 5000 Turbine Control Module

Availability: 99 left in stock

Product Overview The Woodward 5463-783 functions as a high-density I/O interface within the NetCon 5000 control architecture. This module provides a versatile...

SKU: 5463-783

Manufacturer: Woodward
Product No.: 5463-783
Product Type: Discrete Input Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 400g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The Woodward 5463-783 functions as a high-density I/O interface within the NetCon 5000 control architecture. This module provides a versatile mix of discrete and analog channels, allowing operators to monitor sensors, switches, and binary devices in real-time. Specifically engineered for turbine automation and distributed control systems (DCS), the 5463-783 bridges the gap between field-level hardware and high-level control logic, ensuring instantaneous response times for critical industrial processes.

Technical Specifications

The 5463-783 combines multiple I/O types into a single modular footprint to maximize cabinet efficiency.

Attribute	Technical Data
Manufacturer	Woodward (USA)
Part Number	5463-783
Series	NetCon 5000
Digital Inputs	12 Configurable Channels
Analog Inputs	6 Configurable Channels
Digital Outputs	8 Channels
Operating Voltage	24 VDC (16–32 VDC Range)
Operating Temperature	-40°C to +70°C
Communication	Ethernet Support / Addressable Protocols
Dimensions	220 × 140 × 60 mm

Engineering Advantages

Hybrid I/O Versatility: Unlike standard single-purpose cards, the 5463-783 integrates 12 digital inputs, 6 analog inputs, and 8 digital outputs. This density allows engineers to consolidate multiple functions into one module, reducing hardware costs and cabinet wiring complexity.
Ruggedized Thermal Management: The module operates flawlessly in extreme temperatures ranging from -40°C to +70°C. This wide thermal window eliminates the need for expensive external cooling or heating units in most industrial enclosures.
Advanced Fault Protection: Built-in protection circuitry safeguards the module against voltage spikes and electromagnetic interference (EMI). This ensures signal stability even when installed near high-power turbine starters or variable frequency drives.
Seamless Network Integration: The module utilizes Ethernet-ready, addressable communication protocols. This enables fast data throughput to the central processor and simplifies remote diagnostics and module identification during system startups.
100% Brand New Guarantee: We supply only original, factory-sealed Woodward 5463-783 units. This guarantees maximum MTBF (Mean Time Between Failures) and ensures the hardware meets all original manufacturer specifications for critical safety systems.

FAQs

Q: Can the 5463-783 handle both analog and digital signals simultaneously?

A: Yes. The 5463-783 features a hybrid architecture with 12 discrete inputs, 6 analog inputs, and 8 digital outputs, allowing it to process different signal types concurrently within a single NetCon 5000 slot.

Q: Does the module require a specific power supply?

A: The module requires a standard industrial 24 VDC supply. It operates reliably within a broad input window of 16 to 32 VDC, protecting the system against common industrial power fluctuations.

Q: Is this module a direct fit for the Woodward NetCon 5000 series?

A: Yes. It belongs to the NetCon 5000 series and maintains full compatibility with Woodward's proprietary addressable protocols and Ethernet communication backplanes.

Q: How do I verify the authenticity of the module?

A: Every unit we provide is 100% Brand New and includes original Woodward labels, serial numbers, and factory packaging. We can provide documentation such as a Certificate of Origin (COO) upon request.
