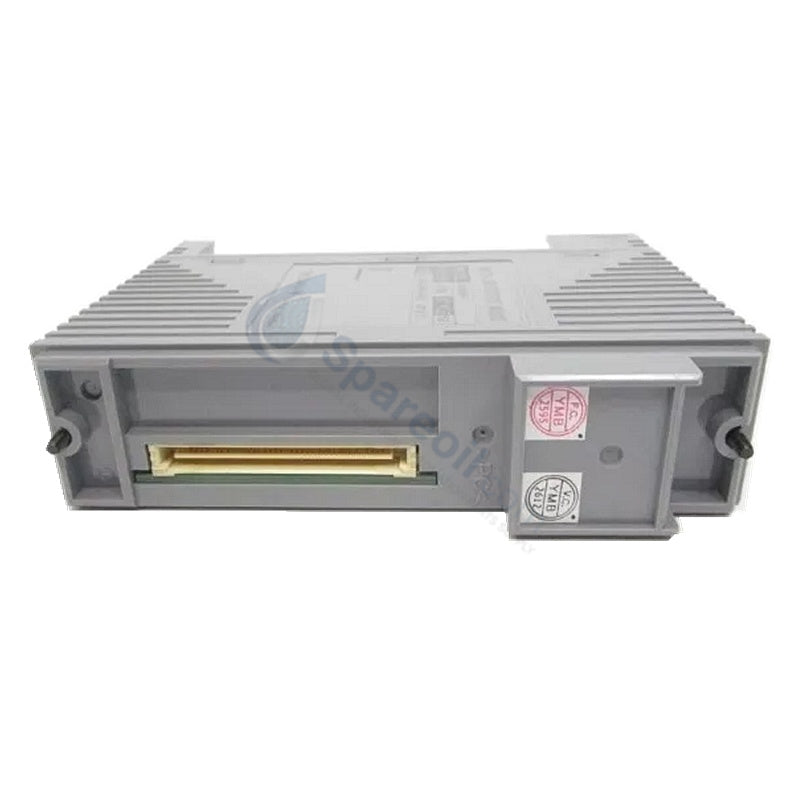

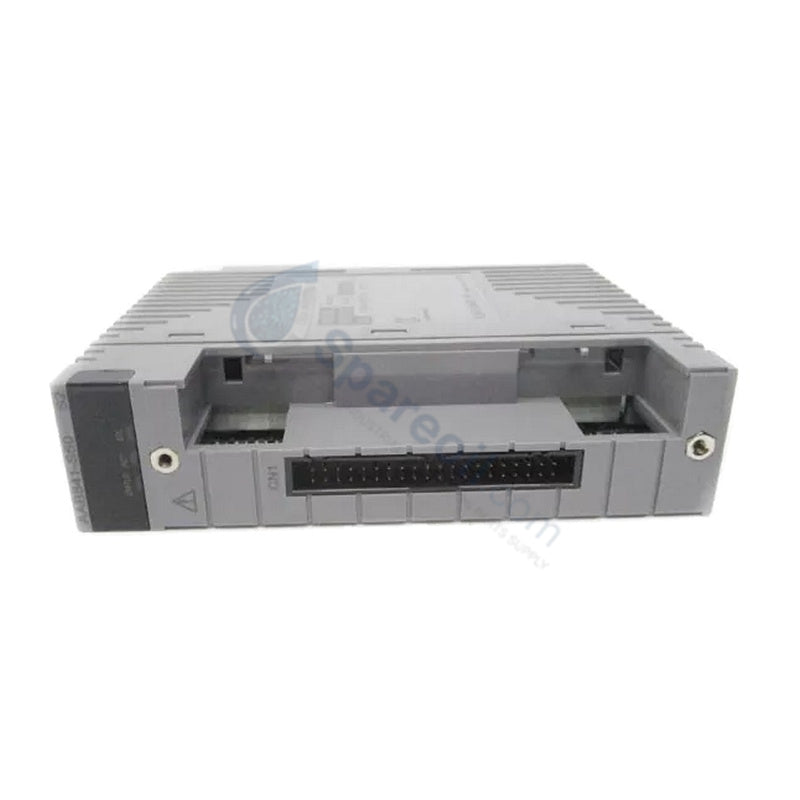

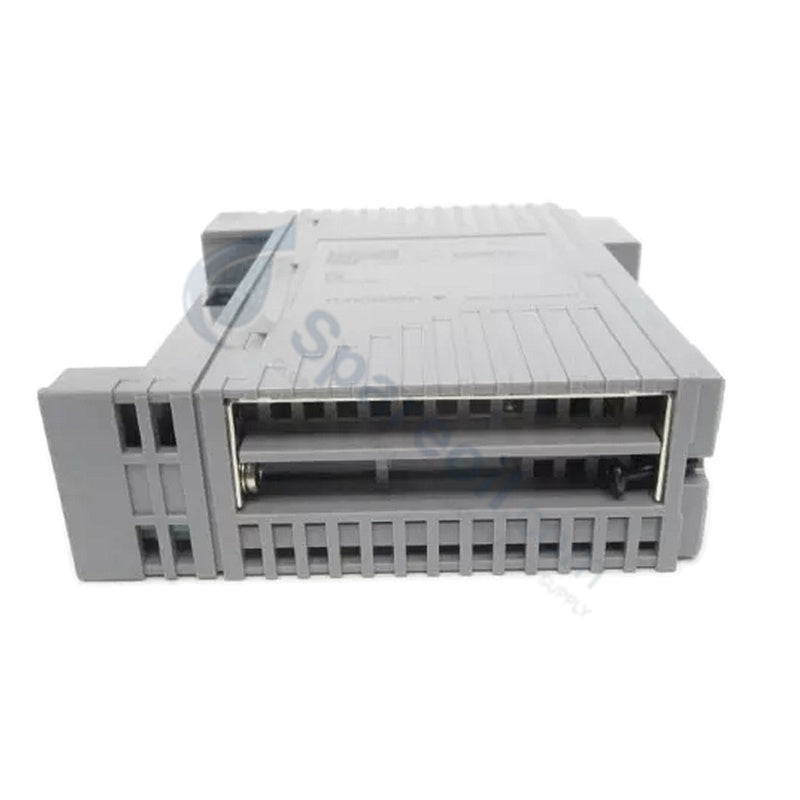

Yokogawa AAB841-S50 S2 CENTUM VP 16-Channel Analog Input Module

Yokogawa AAB841-S50 S2 CENTUM VP 16-Channel Analog Input Module

Availability: 20 left in stock

Yokogawa AAB841-S50 S2 Analog Input Module Configured for analog signal acquisition and process variable monitoring in CENTUM VP networks, the...

SKU: AAB841-S50 S2

Manufacturer: Yokogawa
Product No.: AAB841-S50 S2
Product Type: Analog Input Modules
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 400g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Yokogawa AAB841-S50 S2 Analog Input Module

Configured for analog signal acquisition and process variable monitoring in CENTUM VP networks, the Yokogawa AAB841-S50 S2 (AAB841 Analog Input Module) provides direct physical/electrical execution.

Suffix Breakdown & Model Matrix

Code Suffix	Option / Configuration	Technical Description
AAB841	Base Model	Analog Input Module for field transmitter signal acquisition
-S50	Module Configuration	Standard 16-channel isolated analog processing unit
S2	Revision / Option	Enhanced diagnostic and safety compliance version

Hardware Specifications

Parameter	Specification
Model	AAB841-S50 S2
Brand	Yokogawa
Origin	Japan
Weight	0.4 kg
Dimensions	130 mm x 107.5 mm x 32.8 mm
Operating Temp	-10 deg C to 60 deg C
Power Consumption	0.3 A at 24 VDC backplane supply
Input Channel Count	16 analog input channels
Supported Signal Ranges	4-20 mA DC, 1-5 VDC (software configurable)
Measurement Accuracy	+/-0.1% of full scale
Input Impedance	250 ohms minimum (current input), 1 Mohm minimum (voltage input)
Isolation Barrier	Channel-to-channel and channel-to-ground galvanic isolation
Response Time	100 ms maximum
Storage Temp	-40 deg C to 70 deg C
Operating Humidity	5% to 95% RH (non-condensing)

4-20 mA HART Loop Processing & Channel Isolation

The AAB841-S50 S2 processes 16 isolated analog input channels to interface pressure, temperature, and flow transmitters directly into CENTUM VP controller nodes. Integrating individual channel-to-channel optical galvanic isolation, the module eliminates ground loop interference and prevents field noise propagation across adjacent channels. Onboard circuit diagnostic routines monitor each loop continuously for open-circuit field wiring, out-of-range signal limits, and loop power drops. Precision signal conditioning maintains a +/-0.1% full-scale accuracy threshold across standard 4-20 mA HART and 1-5 VDC input paths, ensuring steady loop feedback during continuous process operations.

Frequently Asked Questions

Q: Does the AAB841-S50 S2 support hot-swapping inside an active CENTUM VP node?

A: Yes. The module supports online hot-replacement within compatible Yokogawa I/O racks, allowing technicians to swap hardware without interrupting power or signal processing on adjacent rack modules.

Q: What diagnostic conditions cause the AAB841-S50 S2 channel fault indicator to trip?

A: Channel fault logic trips upon detecting open field loop wiring, input signal levels falling below 3.8 mA (or rising above 20.5 mA), or when a hardware AD conversion failure occurs on that specific channel.

Q: How does the S2 revision code impact module functionality compared to standard revisions?

A: The S2 suffix designates an enhanced diagnostic hardware build that provides additional internal self-testing routines and elevated safety compliance standards required for integrated DCS/SIS safety instrumented loops.

Field Installation Guidelines

Slide the AAB841-S50 S2 vertically into the designated I/O slot of the node unit, verifying that the backplane bus connector fully seats before tightening the top and bottom panel locking screws. Connect field wiring through standard Yokogawa signal terminal blocks or KS connector interface cables, ensuring 4-20 mA current loops maintain an input impedance load of at least 250 ohms. Fasten cable shielding directly to the cabinet protective earth grounding bar using low-impedance grounding clamps. Keep ambient panel conditions within -10 deg C to 60 deg C with relative humidity non-condensing below 95%.
