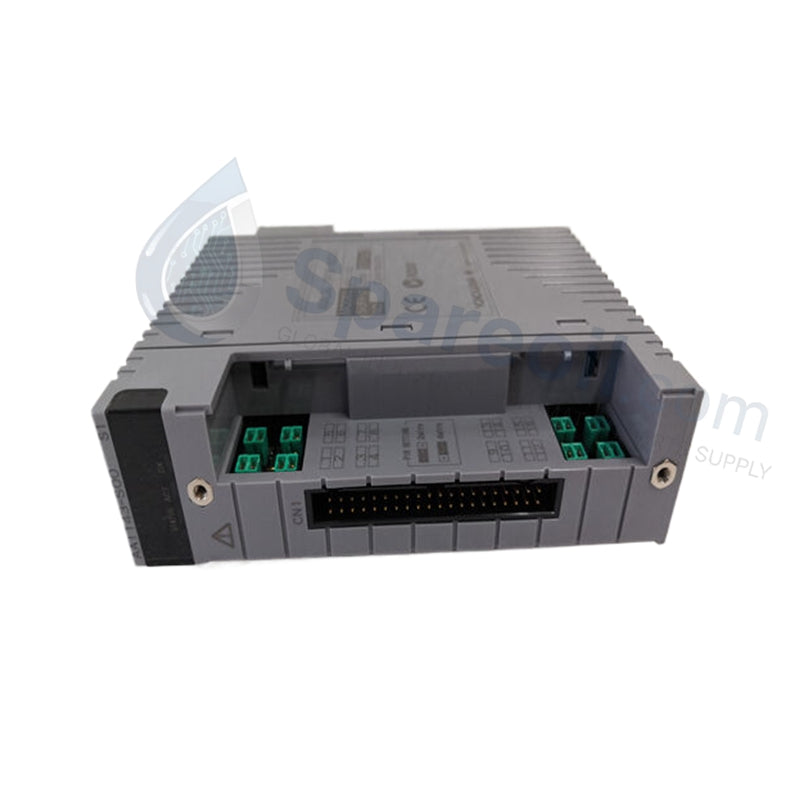

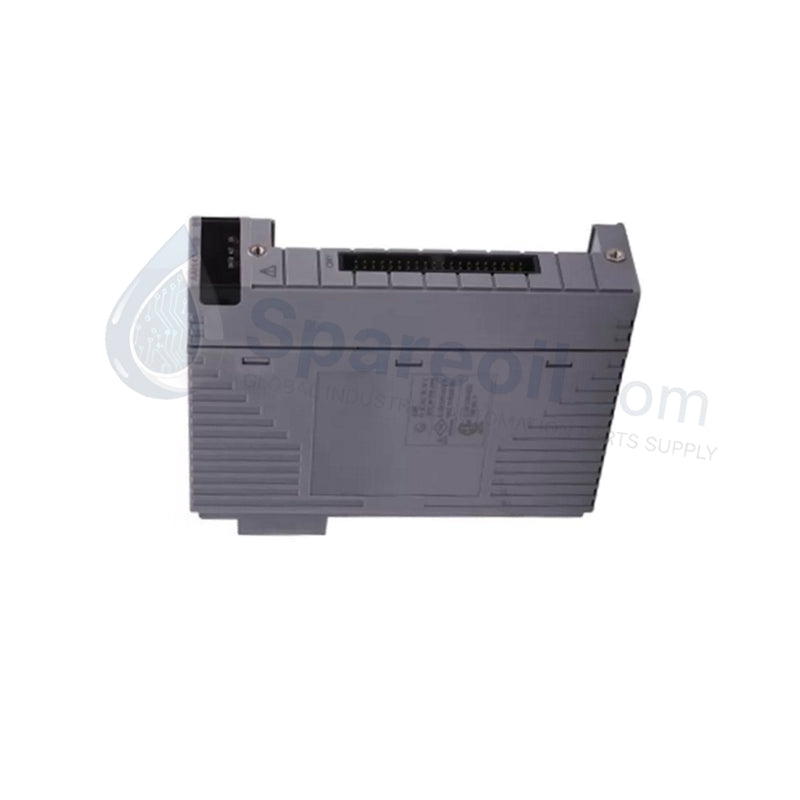

Yokogawa AAI143 Analog Input Card

The Yokogawa AAI143-S00, also cataloged as the AAI143 Analog Input Card, operates as a dedicated hardware component for 16-channel isolated analog signal acquisition within CENTUM VP, CENTUM CS 3000, and ProSafe-RS control platform platforms. The module interfaces directly with field transmitters to accept standard process current loops, digitizing physical variables for control layer execution.

Hardware Specifications

Parameter Specification
Model AAI143
Brand Yokogawa
Origin Japan
Weight 0.3 kg
Dimensions Standard Yokogawa I/O module profile
Operating Temp 0 to 60 deg C
Power Consumption 230 mA at 5 VDC, 540 mA at 24 VDC
Input Channels 16 channels, fully isolated
Input Signal Range 4-20 mA DC
Data Update Period 10 ms
Measurement Accuracy +/-16 uA (+/-0.1% of full scale)
Transmitter Power Supply 19.0 VDC or higher at 20 mA
Input Resistance Power ON: 270-350 Ohm; Power OFF: >= 500 kOhm
Withstanding Voltage 1500 VAC for 1 minute (Input to System)
Allowable Input Current 24 mA
Temperature Drift +/-16 uA / 10 deg C

Process Control & DCS Instrumentation Integration

The module incorporates an internal 4-20 mA HART loop protocol pass-through interface, allowing digital diagnostic data superimposed on the analog signal to reach management software layers. Instrument technicians configure channel-to-channel isolation circuits to mitigate common-mode voltages arising from distinct plant ground potentials. Furthermore, the embedded input circuitry supports both 2-wire and 4-wire transmitter configurations. Independent channel parameter assignments prevent electrical cross-talk and maintain signal loop integrity even during field-side short-circuit events.

Frequently Asked Questions

Q: Does the module support hot-swap capabilities under live backplane conditions?

A: Yes, the hardware design allows online replacement within compatible node units. The operator must ensure the replacement module firmware matches the existing configuration before insertion to prevent node disruption.

Q: How does the unit handle 2-wire vs 4-wire transmitter power allocation?

A: The hardware supplies loop power directly to 2-wire transmitters via its internal 19.0 VDC source. For 4-wire configurations, the internal power supply is bypassed, and the channels function purely as current sinks.

Field Installation Guidelines

  1. Mount the module horizontally onto the dedicated node unit slot. Ensure the top and bottom latch mechanisms click securely into the backplane connectors.
  2. Terminate all signal wiring using standard field cables. Keep analog signal lines separate from high-voltage AC power lines to minimize electromagnetic noise coupling.
  3. Ground the cable shields at a single point, preferably at the instrument enclosure side or the marshalling panel ground bar, to ensure consistent noise attenuation.
  4. Verify that total loop impedance for 2-wire transmitters remains within the specified operational limits under full 20 mA load.
