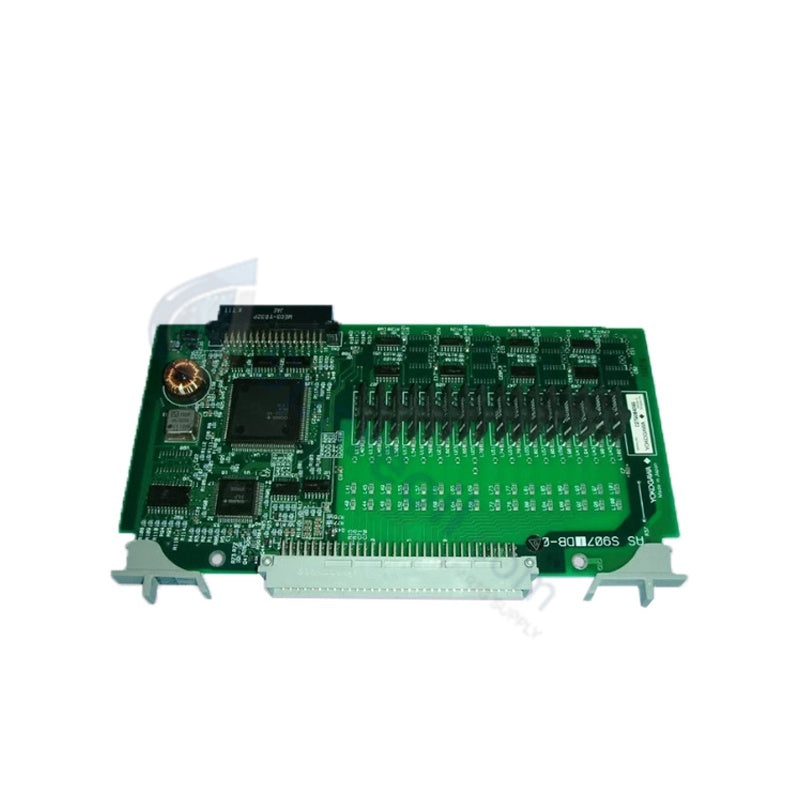

Yokogawa ADM11/CE1 CENTUM Digital Input Module
The Yokogawa ADM11/CE1, also cataloged as the ADM11 Digital Input Module, operates as a dedicated hardware component for discrete signal acquisition within Yokogawa CENTUM VP and CENTUM CS 3000 platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | ADM11/CE1 |
| Brand | Yokogawa |
| Origin | Japan |
| Weight | 0.113 kg to 0.5 kg |
| Dimensions | 150 mm x 25 mm x 100 mm |
| Operating Temp | 0 deg C to 60 deg C |
| Power Consumption | 1.5 W maximum (24 V DC via backplane) |
| System Compatibility | Yokogawa CENTUM VP / CENTUM CS 3000 DCS |
| Input Density | 16 discrete contact input channels |
| Input Signal Types | Dry contact or voltage-sensing (wet) contact |
| Signal Conversion | Photocoupler isolation with 16-bit processing |
| Minimum Pulse Width | 20 ms or less |
| Isolation Method | Field-to-system and channel-to-channel photocoupler isolation |
| System Standards | CE marking, EMC enhanced electromagnetic immunity |
4-20 mA HART Loop Protocol and Channel Isolation
The ADM11/CE1 module isolates field contacts using internal photocoupler circuitry to block ground loops across distributed plant networks. Galvanic channel-to-channel isolation decouples field switch returns from host DCS logic circuits, preventing high-voltage transients from degrading CPU backplane operation. Integrated diagnostic self-tests continuously monitor signal line integrity and contact response states, ensuring rapid conversion of raw discrete pulses into deterministic system logic.
Frequently Asked Questions
Q: Can the module accept both dry contact and wet contact field signals without external power conditioning?
A: Dry contact operation utilizes internal backplane sensing power, whereas wet voltage-sensing contacts require external field loop potential within specified voltage boundaries. Verify wiring polarity on the terminal block prior to energizing field loops.
Q: What precautions are necessary when hot-swapping the module inside an active Field Control Station rack?
A: Verify that the associated DCS node recognizes the module state before disengaging retaining screws. Personnel must handle the module using anti-static wrist straps to prevent electrostatic discharge from damaging onboard photocoupler components during hot insertion.
Field Installation Guidelines
Insert the ADM11/CE1 module into the target slot on the CENTUM FCS rack assembly. Press the module base into the backplane bus connector until seated, then tighten the upper and lower mounting screws to maintain grounding continuity under panel vibration.
Run input signal wiring through shielded twisted-pair cables separated from high-voltage AC power lines. Terminate drain wires to a single ground bar inside the control cabinet. Ensure dry contact wire runs do not exceed maximum cable resistance limits to retain valid minimum pulse detection.
