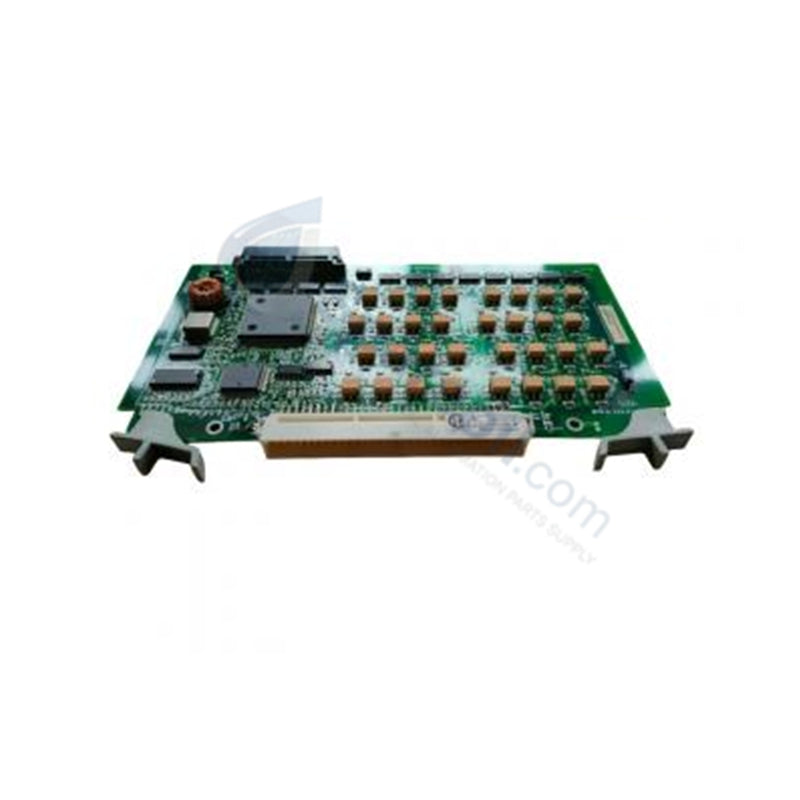

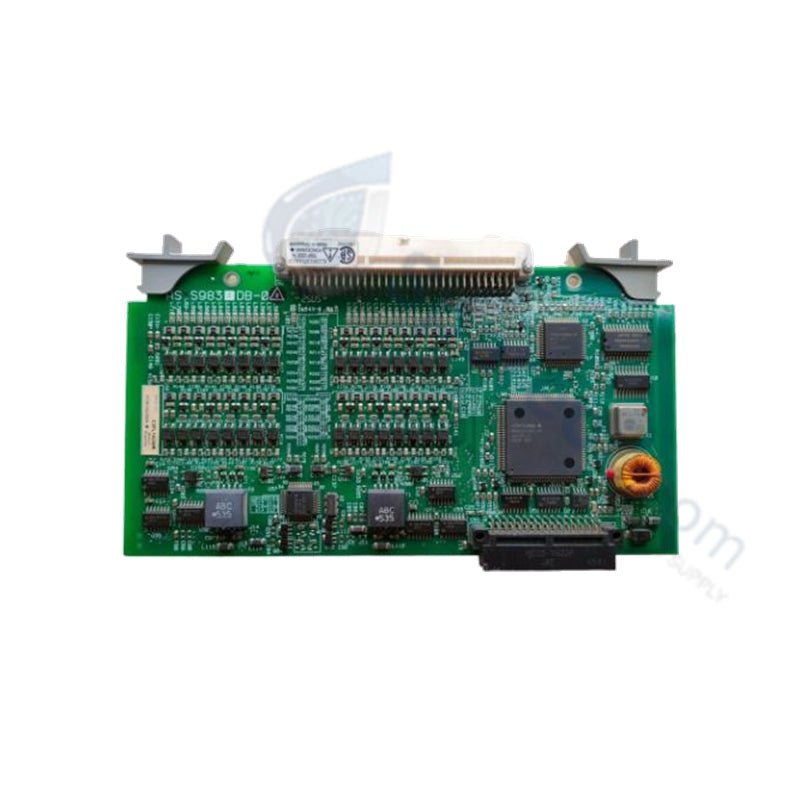

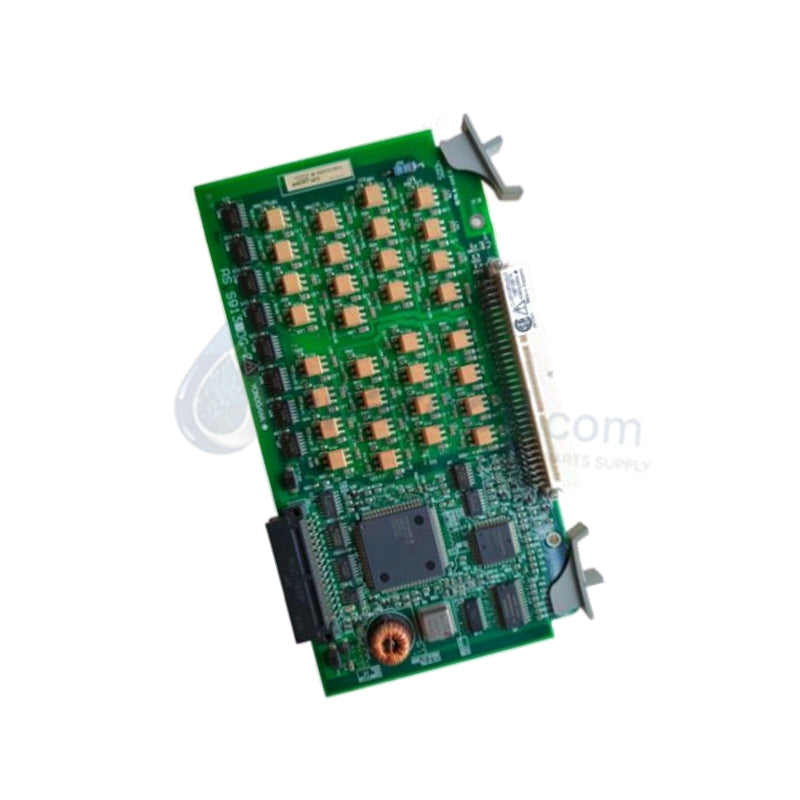

ADM52-2 S4 YOKOGAWA Contact Output I/O Card

YOKOGAWA ADM52-2 S4 Contact Output I/O Card Series

YOKOGAWA ADM52-2 S4 Contact Output I/O Card Series

Availability: 10 left in stock

YOKOGAWA ADM52-2 S4 CONTACT OUTPUT I/O CARD The YOKOGAWA ADM52-2 S4, also cataloged as the ADM52 Contact Output I/O Card,...

SKU: ADM52-2 S4

Manufacturer: Yokogawa
Product No.: ADM52-2 S4
Product Type: Contact Output Modules
Product Origin: Japan
Payment:T/T, Western Union
Weight: 200g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

YOKOGAWA ADM52-2 S4 CONTACT OUTPUT I/O CARD

The YOKOGAWA ADM52-2 S4, also cataloged as the ADM52 Contact Output I/O Card, operates as a dedicated hardware component for discrete signal execution within Centum and N-IO DCS platforms. This module provides the interface between control station digital logic and external process hardware, facilitating high-speed switching of field devices.

Hardware Specifications

Parameter	Specification
Model	ADM52-2 S4
Brand	YOKOGAWA
Origin	Japan
Weight	0.2 kg
Dimensions	12.7 cm x 2.5 cm x 20.3 cm
Operating Temp	0 deg C to 55 deg C
Power Consumption	2.5 W
Channel Count	16 points (dry contact)
Rated Voltage	Max 30 V DC / 250 V AC
Rated Current	Max 2 A per channel

Process Control Connectivity

The ADM52-2 S4 utilizes comprehensive channel-to-channel isolation to prevent electrical interference from propagation across the DCS backplane. This architecture ensures that transient voltages from external contact switching do not compromise the integrity of the process control loop. The module maintains galvanic isolation characteristics consistent with industrial standards, preventing ground loops when interfacing with field actuators and solenoid valves.

Frequently Asked Questions

Q: Does the ADM52-2 S4 support hot-swapping within the I/O nest?

A: Yes, the module supports hot-swapping provided that the system configuration is set to permit module removal without triggering a system-wide trip in the redundant controller pair.

Q: Are the contact outputs rated for inductive load switching?

A: The outputs are rated for 2 A; however, when switching inductive loads, external surge suppression (such as flyback diodes or RC snubber circuits) is required to prevent contact erosion and back-EMF damage to the module internal circuitry.

Field Installation Guidelines

Ensure the I/O nest power is stable at 24 V DC before inserting the module into the designated slot.
Align the module card edges precisely with the backplane guide rails to prevent pin misalignment during the engagement of the connector.
Secure the module using the integrated front-panel locking screws to maintain proper mechanical stability and grounding contact with the chassis.
Verify that all field wiring is shielded and that cable shields are terminated at the designated earth bus bar to minimize EMI interference.
Confirm that the loop current does not exceed the 2 A maximum rating per channel during commissioning.
