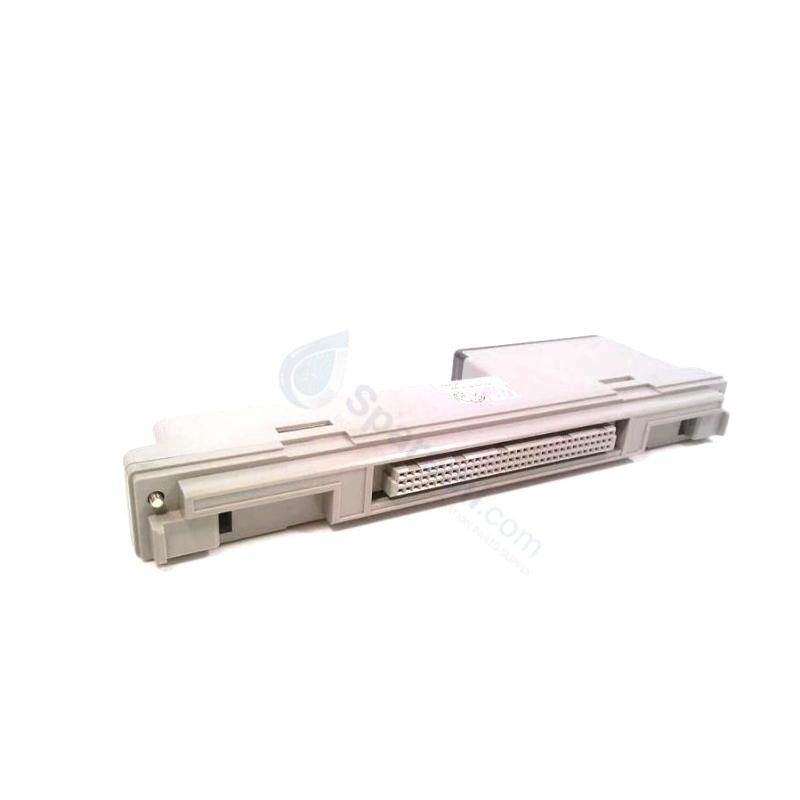

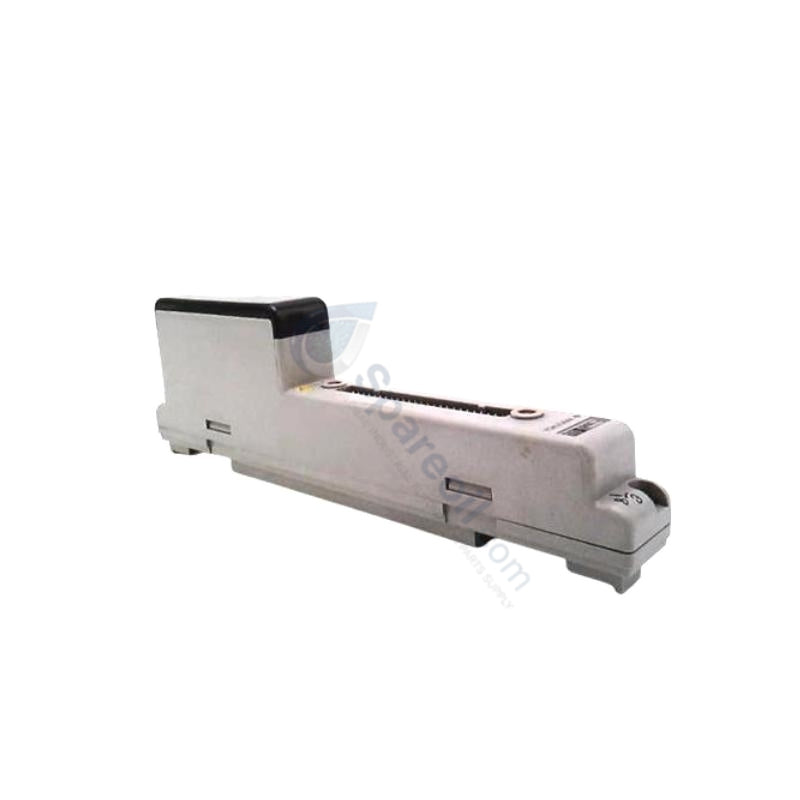

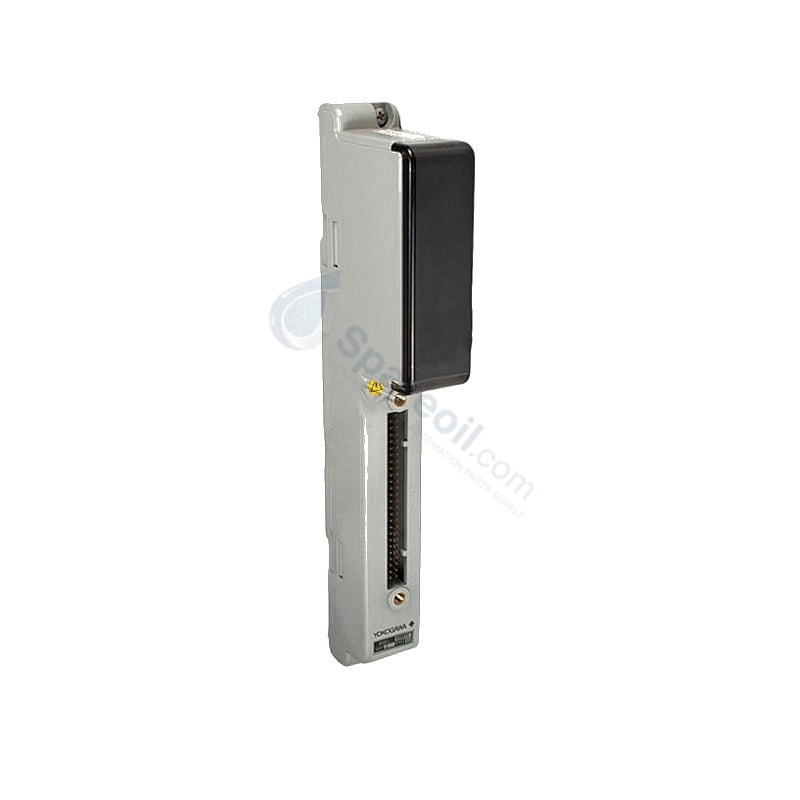

Yokogawa ADM52C-2-S3 Contact Output Module

Configured for discrete ON/OFF signal routing and field device switching in CENTUM VP platforms, the Yokogawa ADM52C-2-S3 (ADM52C Contact Output Module) provides direct physical/electrical execution.

Suffix Breakdown & Model Matrix

Code Suffix Option / Configuration Technical Description
ADM52C Base Model Contact Output Module for process control switching
-2 System Configuration Dual-redundant configuration support variant
-S3 Style Code Style 3 hardware revision level

Hardware Specifications

Parameter Specification
Model ADM52C-2-S3
Brand Yokogawa
Origin Japan
Weight 0.29 kg
Dimensions 25 mm x 229 mm x 76 mm
Operating Temp -10 deg C to 60 deg C
Power Consumption 5 W (relay variant) / 600 mA at 5 VDC (transistor variant)
Channel Density 32 output points
Output Contact Ratings 250 VAC at 2 A (relay) / 30 VDC at 100 mA max (transistor)
Isolation Scheme Optical isolation between channels and system backplane
Response Speed Less than 1 ms
Common Structure Common minus connection shared every 16 points
Pulse Control Range 0.1 s to 7200 s with 20 ms pulse resolution
Interface Connection KS9 or KS10 connector cable assembly
Storage Temp -20 deg C to 70 deg C
Operating Humidity 5% to 95% RH (non-condensing)

Galvanic Isolation & Process Field Loop Protocol

The ADM52C-2-S3 integrates high-density 32-point discrete output circuitry designed to manage field solenoids, control valves, and interlock relays across distributed process loops. Optical isolation barriers protect internal system logic from field-side voltage surges, isolating individual channels from backplane processing buses. The module executes configurable pulse-width modulation from 0.1 s to 7200 s at 20 ms resolution, enabling precise timing adjustments for batch operations. Common ground points segment every 16 channels to isolate wiring groups, while onboard logic supports hold-action modes during active online module maintenance to prevent uncontrolled field device tripping.

Frequently Asked Questions

Q: How does the ADM52C-2-S3 preserve output field states during online system updates?

A: The module utilizes a hardware-level hold-action mechanism that maintains the last valid ON/OFF output state across all 32 channels while controller maintenance or firmware synchronization takes place.

Q: What interface cabling is required to connect the ADM52C-2-S3 to field terminal blocks?

A: Terminal routing requires standard Yokogawa KS9 or KS10 connector cables attached directly to the module front connector, mating with designated terminal boards.

Q: What are the primary electrical load differences between the relay and transistor variants?

A: The relay contact option handles load voltages up to 250 VAC at 2 A per point, whereas the transistor contact option manages DC switching up to 30 VDC with a maximum load limit of 100 mA per point.

Field Installation Guidelines

Insert the ADM52C-2-S3 vertically into the assigned slot of the AMN32T I/O module nest until the card connector seats firmly into the backplane bus. Fasten the retention screws at the top and bottom of the front panel to guarantee vibration-proof grounding. Secure the KS9 or KS10 cable assembly to the front terminal block and route signal wires away from high-voltage AC power lines to minimize electromagnetic interference. Verify that external load currents remain strictly within specified parameters (2 A for relay, 100 mA for transistor) and ensure proper grounding to the cabinet earth bar in accordance with standard plant wiring procedures.
