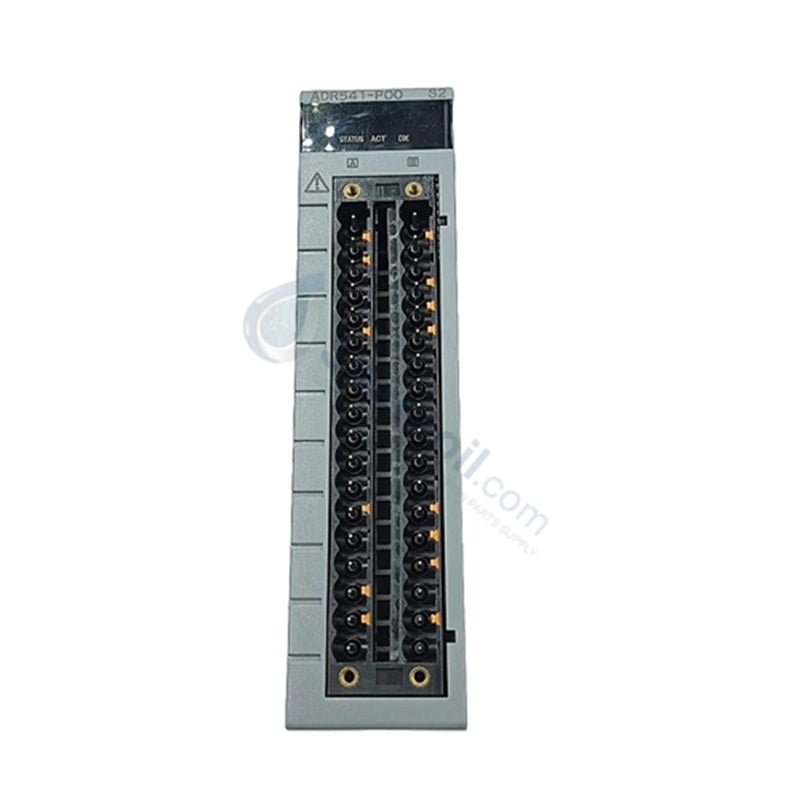

Yokogawa ADR541-P53 S2 CENTUM VP Relay Output Module

Availability: 99 left in stock

Yokogawa ADR541-P53 S2 Relay Output Module The Yokogawa ADR541-P53 S2, also cataloged as the ADR541 Relay Output Module, operates as...

SKU: ADR541

Manufacturer: Yokogawa
Product No.: ADR541
Product Type: Relay Output Modules
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

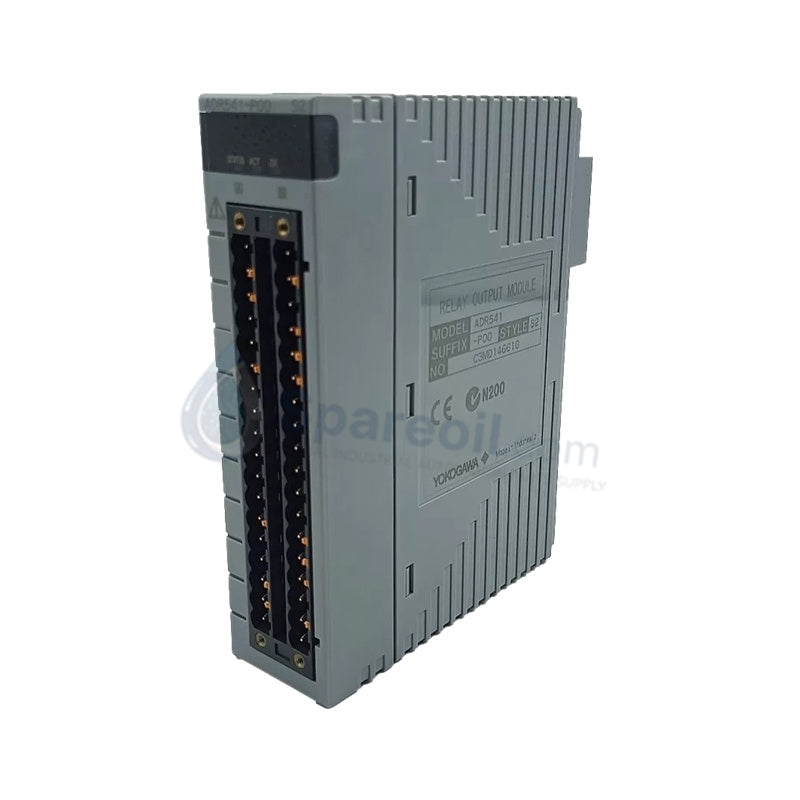

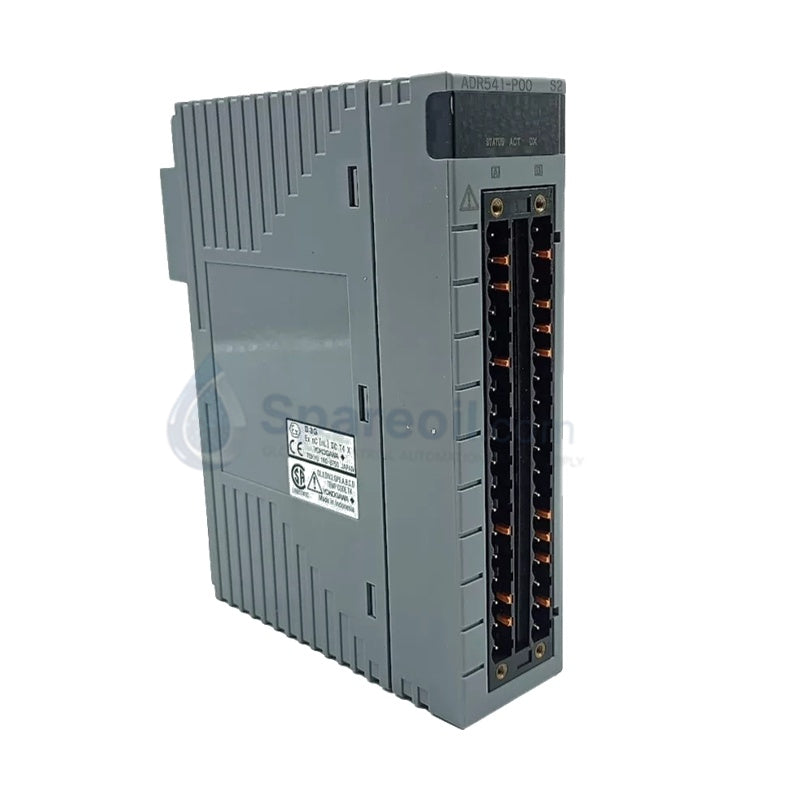

Yokogawa ADR541-P53 S2 Relay Output Module

The Yokogawa ADR541-P53 S2, also cataloged as the ADR541 Relay Output Module, operates as a dedicated hardware component for discrete field device actuation within Yokogawa CENTUM CS, CENTUM VP, and STARDOM DCS networks. The hardware module manages 16 independent electromechanical Form A (SPST) contact closures, switching discrete power loads to drive external solenoid valves, interlock components, and motor starter coils.

Hardware Specifications

Parameter	Specification
Model	ADR541-P53 S2
Brand	Yokogawa
Origin	USA
Weight	0.5 kg
Dimensions	25 mm x 203 mm x 152 mm
Operating Temp	-10 to +55 deg C
Power Consumption	Max. 780 mA at 5 VDC
Output Channels	16 relay output channels
Relay Configuration	Electromechanical Form A (SPST-NO)
Rated Switching Voltage	24-110 VDC / 100-240 VAC (50/60 Hz)
Resistive Load Rating	2.0 A per channel at 24 VDC or 220 VAC
Inductive Load Rating	0.6 A per channel at 24 VDC / 1.0 A per channel at 220 VAC
Isolation Voltage	2 kV AC (field-to-system), 1.35 kV AC (between commons)
Actuation Latency	Response time less than or equal to 12 ms (status output)

Process Control & DCS Instrumentation Integration

The ADR541-P53 S2 coordinates field actuator sequencing by executing ON/OFF state changes, adjustable pulse configurations ranging from 40 ms to 7200 s, and time-proportioning control commands. Galvanic isolation boundaries are engineered between the output loops and the inner system bus at 2 kV AC, preventing electrical surges and field ground loop potentials from affecting the master control processors. The module architecture interfaces directly into the DCS rack backplane, relying on internal microcode to translate discrete system variables into mechanical contact actions while enforcing continuous diagnostic cross-checks on the coil control lines.

Frequently Asked Questions

Q: How does the module handle high-energy inductive kickback during relay de-energization?

A: The internal electromechanical contacts require external transient voltage suppressors or RC snubber networks installed directly across the inductive load terminals. This external suppression limits arcing, stabilizes contact impedance, and prevents degradation of the 100,000-operation minimum mechanical life cycle.

Q: What is the backplane behavior of the ADR541-P53 S2 during a full system processor communication failure?

A: The module references its configured internal safety parameters when backplane bus data frames drop. Depending on the system engineering choices defined during download, the 16 Form A relays will either hold their last commanded electrical state or drop out to an open, unpowered fail-safe condition.

Q: Can different voltage levels be switched simultaneously across the 16 output channels?

A: Yes, but only across distinct isolated common groups. While the module architecture permits mixing AC and DC voltages within specified limits, the channels sharing a physical common terminal must utilize identical voltage levels to satisfy the 1.35 kV AC isolation specification between groups.

Field Installation Guidelines

Mount the ADR541-P53 S2 directly into the dedicated slot position of the compatible Yokogawa I/O rack framework. Ensure the pressure clamp terminals or specialized AKB334 interface cable assemblies are mated securely to eliminate contact resistance paths.

Route the external AC and DC actuator power loops through separate wire trays to suppress electromagnetic field coupling into adjacent low-voltage analogue sensor cables. Terminate all field wiring shielding at the dedicated plant instrument ground grid bar, ensuring single-point isolation configurations are maintained. Maintain uniform airflow spacing across the rack chassis housing to ensure localized temperatures do not cross the -10 deg C to +55 deg C operating threshold.
