ADV151-E63 S2 Yokogawa Digital Input Module

Yokogawa ADV151-E63 S2 CENTUM VP Digital Input Module

Yokogawa ADV151-E63 S2 CENTUM VP Digital Input Module

Availability: 20 left in stock

Yokogawa ADV151-E63 S2 Digital Input Modules Configured for high-density field signal processing in CENTUM VP platforms, the Yokogawa ADV151-E63 S2...

SKU: ADV151-E63-S2

Manufacturer: Yokogawa
Product No.: ADV151-E63-S2
Product Type: Digital Input Modules
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 450g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

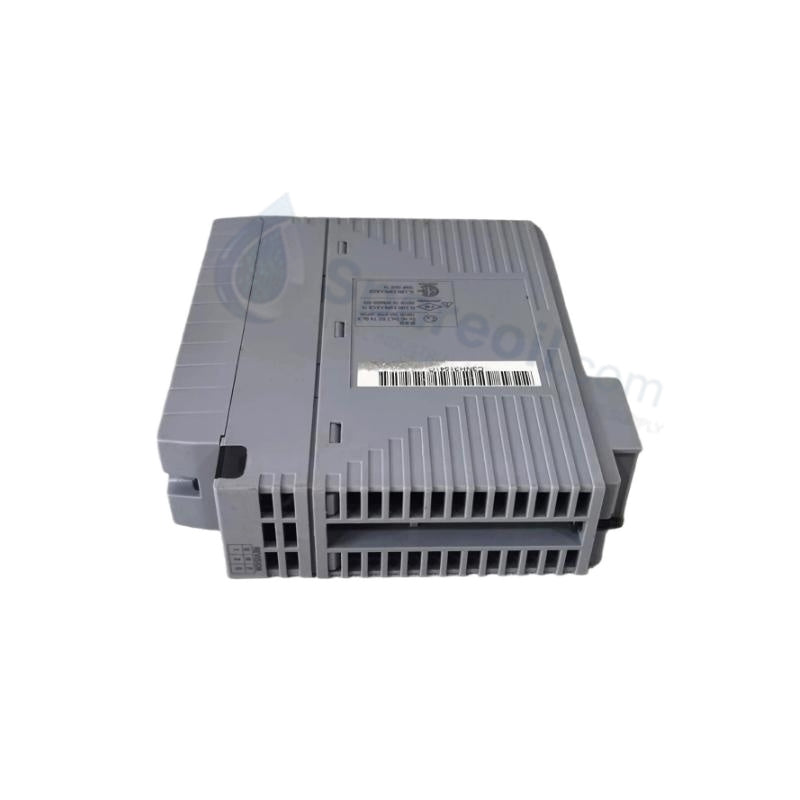

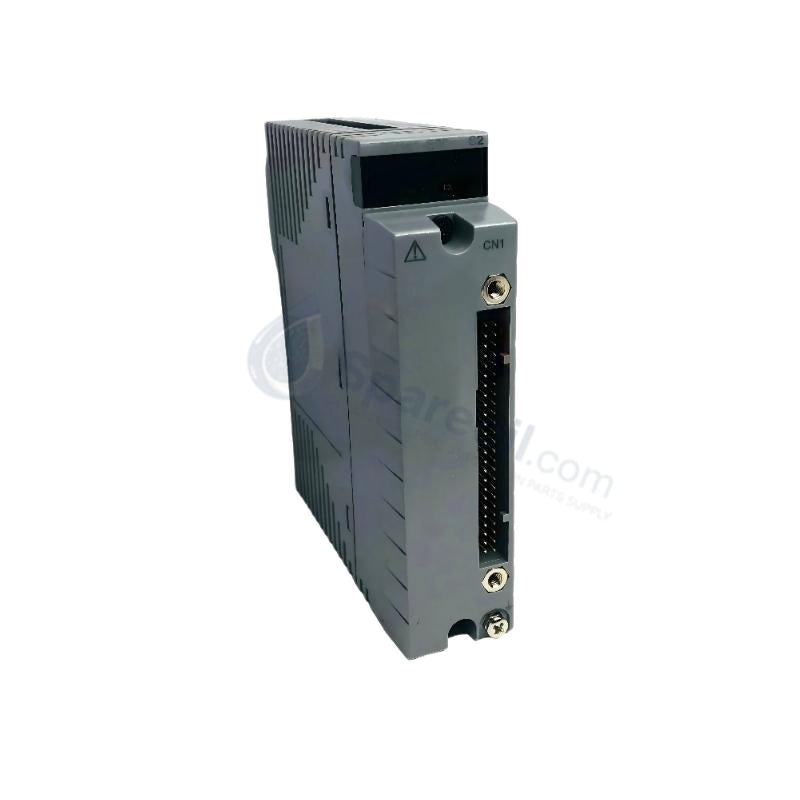

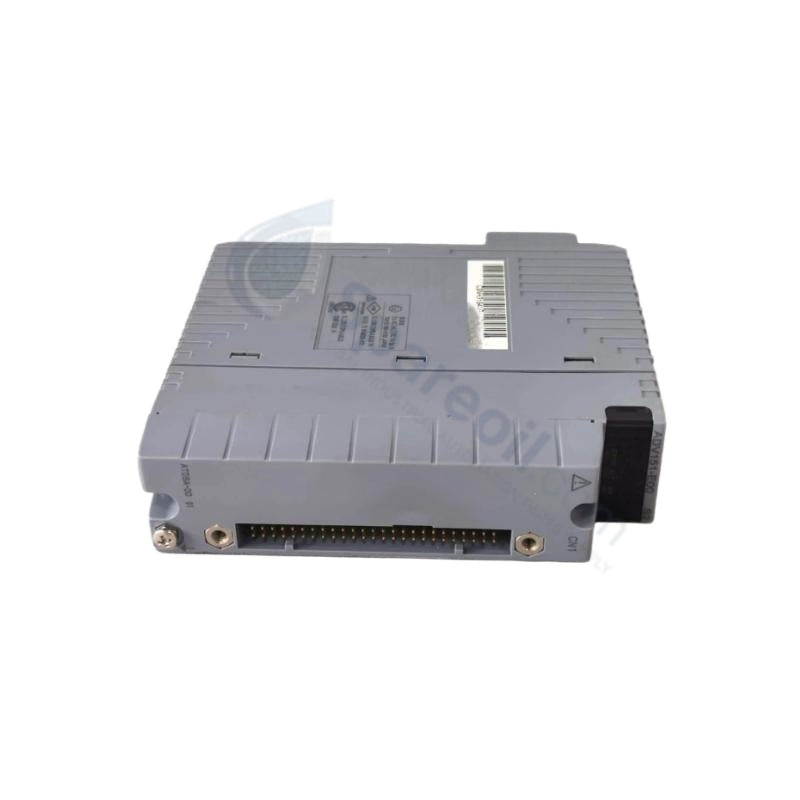

Yokogawa ADV151-E63 S2 Digital Input Modules

Configured for high-density field signal processing in CENTUM VP platforms, the Yokogawa ADV151-E63 S2 (ADV151 Digital Input Module) provides direct physical/electrical execution. The hardware routes discrete field voltages and process analog signals across isolated channels to execute real-time status acquisition for system logic execution. Incorporating ISA Standard G3 conformal coating and standard backplane connectivity, the module processes field inputs while providing 1500 VAC galvanic isolation.

Hardware Specifications

Parameter	Specification
Model	ADV151-E63 S2
Brand	Yokogawa
Origin	Japan
Weight	0.45 - 0.63 kg (3.00 lbs shipping weight)
Dimensions	51 mm x 254 mm x 114 mm
Operating Temp	-20 to 70 deg C (G3 standard compliant)
Power Consumption	400 mA (5 VDC), 200 mA (24 VDC)
Channel Capacity	16 / 32 channels (configuration dependent)
Input Signal Types	Voltage (+/-10 VDC), Current (4-20 mA DC)
Input Resistance	250 Ohm (current), >= 1 MOhm (voltage)
Signal Accuracy	+/-0.1% of full scale
Signal Resolution	12 to 16 bits
Response Time	<= 100 ms
Isolation Voltage	1500 VAC between input terminals and system logic for 1 minute

4-20 mA HART Loop Protocol and Channel Isolation

Yokogawa DCS platforms rely on strict isolation barriers to prevent field transients from impacting central system processors. The ADV151-E63 S2 incorporates 1500 VAC withstand isolation between field input terminals and internal backplane logic bus lines. When integrated with 4-20 mA loops or HART transmitter networks, this channel-to-channel isolation mitigates common-mode ground loop noise and maintains signal integrity across analog monitoring loops.

Frequently Asked Questions

Q: What isolation rating protects system logic from field-side voltage transients? A: The module provides 1500 VAC isolation for 1 minute between input terminals and the backplane logic interface.

Q: Does the module support active redundant configurations in live systems? A: Yes, the unit supports dual-redundant operation and online hot-swapping to enable module replacement without interrupting continuous process monitoring.

Q: What input impedance levels apply when connecting current or voltage devices? A: Current loop connections exhibit a 250 Ohm input resistance, while voltage input configurations present a high input impedance of >= 1 MOhm.

Field Installation Guidelines

Power down backplane rack slots or verify active redundant module operation prior to inserting or removing hardware.
Verify mechanical keying on the rack slot interface to ensure exact pin alignment and prevent connector terminal damage.
Terminate signal cables or cable adapters using proper terminal tightening torque to ensure secure electrical contact.
Route 4-20 mA signal wires through dedicated low-voltage instrument trays separated from high-voltage AC conductors.
Ground signal cable drain shields at a single point on the cabinet protective earthing bar to eliminate circulating ground loops.
