ADV151-P10 S2 Yokogawa Digital Input Module

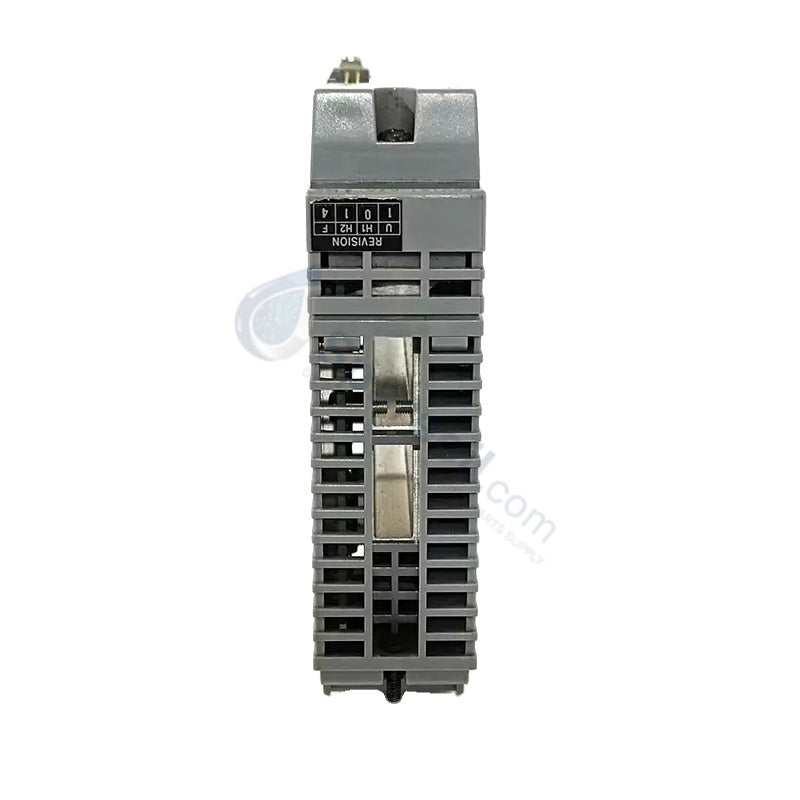

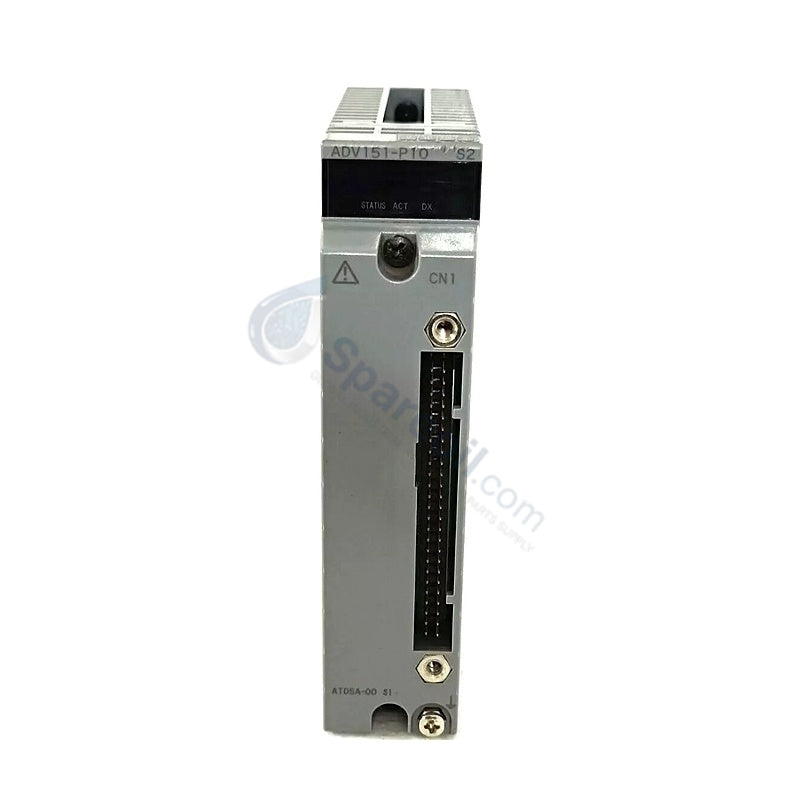

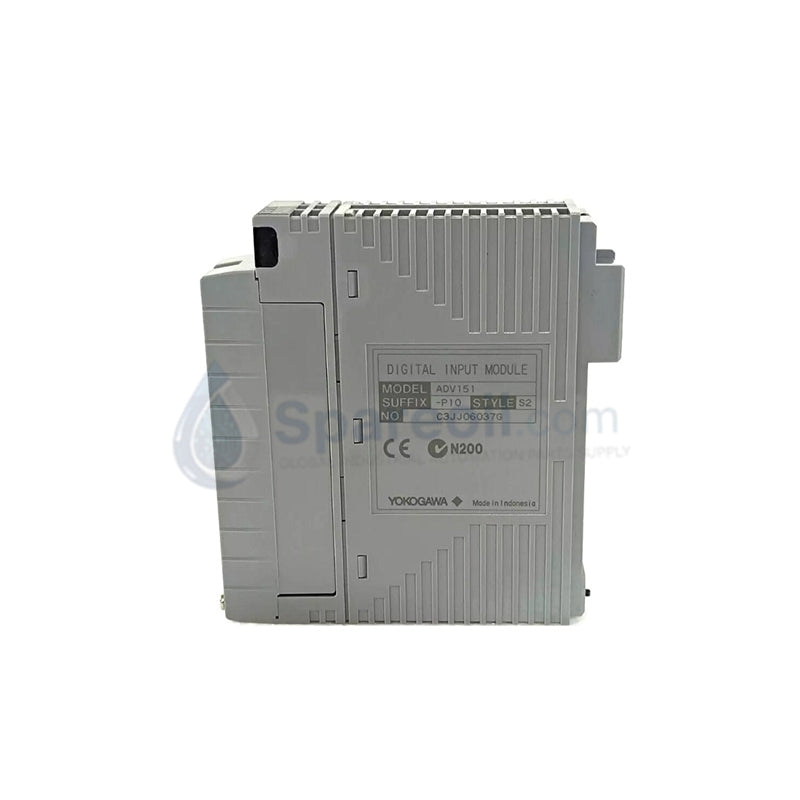

Yokogawa ADV151-P10 S2 CENTUM VP Digital Input Module

Yokogawa ADV151-P10 S2 CENTUM VP Digital Input Module

Availability: 20 left in stock

Yokogawa ADV151-P10 S2 Digital Input Module The Yokogawa ADV151-P10 S2, also cataloged as the ADV151 Digital Input Module, operates as...

SKU: ADV151-P10-S2

Manufacturer: Yokogawa
Product No.: ADV151-P10-S2
Product Type: Digital Input Modules
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Yokogawa ADV151-P10 S2 Digital Input Module

The Yokogawa ADV151-P10 S2, also cataloged as the ADV151 Digital Input Module, operates as a dedicated hardware component for discrete signal acquisition within CENTUM VP control system platforms.

Hardware Specifications

Parameter	Specification
Model	ADV151-P10 S2
Brand	Yokogawa
Origin	Indonesia
Weight	0.3 kg
Dimensions	Compact modular rack mount
Operating Temp	-20 deg C to +70 deg C
Power Consumption	200 mA at 5 VDC, 30 mA at 24 VDC
Input Channels	16 / 32 digital inputs
Rated Input Voltage	24 VDC
Input Voltage Range	ON >= 15 VDC, OFF <= 5 VDC
Input Current	4 to 7 mA per channel
Isolation	1500 VAC withstand between field and system logic
Response Time	<= 5 ms

Channel-to-Channel Isolation & DCS Connectivity

The module employs optoelectronic galvanic isolation rated at 1500 VAC to break ground loops and prevent transient voltage spikes between field contact circuits and the system backplane logic. Designed for seamless co-location with 4-20 mA HART loop protocol instruments and high-density field I/O wiring, the internal circuitry isolates noise interference across each discrete processing path. Diagnostic LEDs mounted on the front panel provide real-time visual status monitoring for input activation state and module health.

Frequently Asked Questions

Q: Can this module be extracted or replaced while the system rack is powered?

A: Yes, the unit supports online hot-swap operations. Operators can perform card removal and insertion while the DCS backplane remains energized without disturbing adjacent operational I/O cards.

Q: What environmental temperature range does the Style S2 variant support?

A: The S2 suffix designates an extended operating temperature capability rated from -20 deg C to +70 deg C, allowing installation in harsh control environments.

Field Installation Guidelines

Align the module guides with the designated slot in the CENTUM VP rack and slide the card inward until the backplane connectors seat completely. Secure all terminal blocks or interface cables according to channel polarity and pin assignments. Connect all cable shields to the dedicated cabinet grounding bar at a single point to prevent ground potential variations. Route 24 VDC field input wiring away from high-voltage power conduits inside enclosure wireways to minimize electromagnetic noise coupling.
