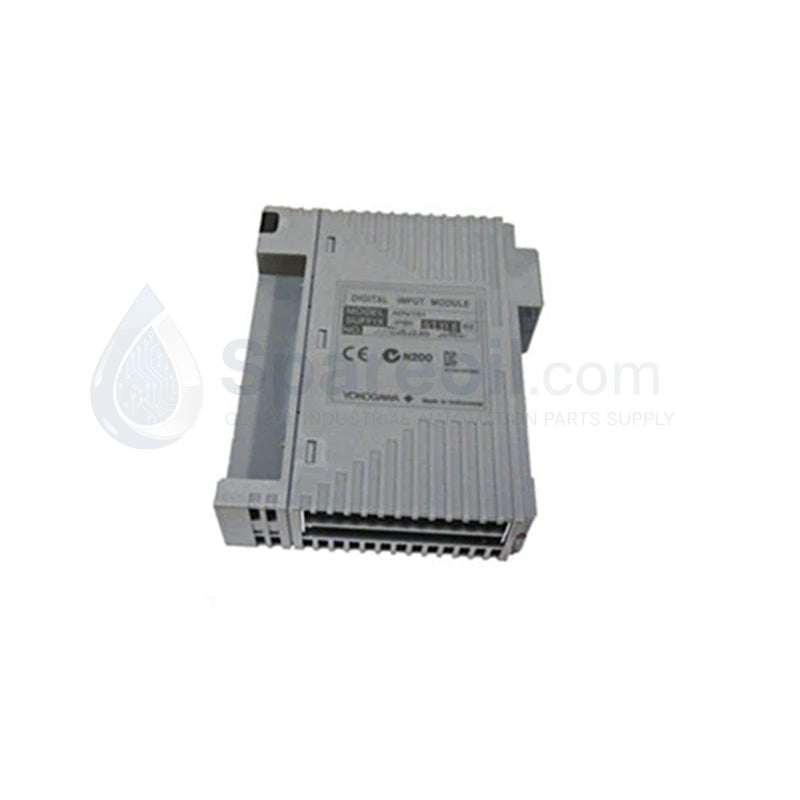

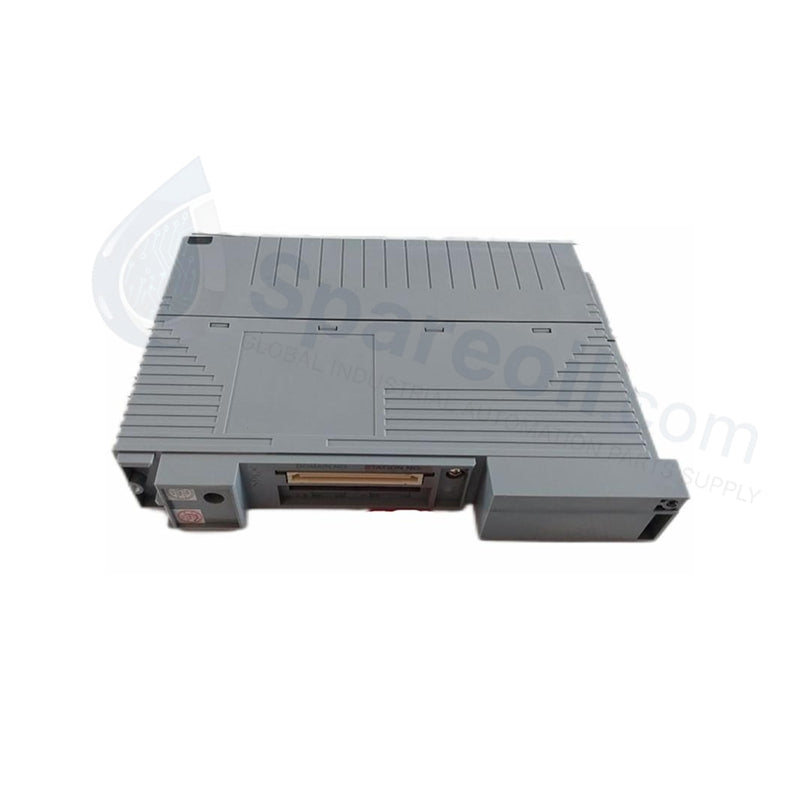

YOKOGAWA ADV151-P50 Digital Input Module
Configured for discrete status signal acquisition in CENTUM VP FIO subsystems, the YOKOGAWA ADV151-P50 (ADV151-P50 Digital Input Module) provides direct electrical monitoring of field-side binary devices.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | ADV151-P50 |
| Brand | YOKOGAWA |
| Origin | USA |
| Weight | 0.24 kg |
| Dimensions | 3.2 cm x 10.7 cm x 7.6 cm |
| Operating Temp | 0 to 50 deg C |
| Power Consumption | 0.6 A at 24 V DC |
| Channel Density | 32 discrete inputs |
| Signal Type | 24 V DC ON/OFF voltage input |
| Update Cycle | 100 ms |
DCS Process Control and Signal Isolation
The ADV151-P50 module facilitates high-density digital status monitoring within the Yokogawa CENTUM VP process control network. The module architecture implements robust channel-to-channel and channel-to-system isolation, effectively mitigating common-mode electrical noise and protecting the internal bus from field-side voltage transients. Furthermore, the unit supports redundant configuration schemes, permitting secondary modules to track state changes in parallel for fault-tolerant operation. This capability ensures that critical safety interlocks and machine status bits remain accurate even during individual module diagnostic errors.
Frequently Asked Questions
Q: Does the ADV151-P50 support hot-swapping while the FIO node remains energized?
A: Yes, the hardware supports hot-swapping. Operators must disconnect field-side wiring from the terminal board before extraction to prevent accidental shorts or unexpected signal state transitions.
Q: Is this module compatible with 120 V AC field inputs?
A: No, the ADV151-P50 is rated specifically for 24 V DC inputs. Applying AC voltage will cause permanent damage to the input optocouplers and signal conditioning circuitry.
Q: How does the module indicate an open-wire fault condition?
A: The module continuously monitors input current levels. If the circuit current falls below the operational threshold, the module flags the specific channel status as invalid within the Field Control Station (FCS) diagnostic registers.
Field Installation Guidelines
Ensure the module slides securely into the designated FIO node slot until the locking mechanism engages. Maintain the ambient temperature between 0 and 50 deg C and humidity levels below 90% non-condensing to prevent hardware degradation. Connect field device conductors to the terminal blocks using shielded cabling. Ground the cable shields at the instrument cabinet earth bar to reduce electromagnetic interference. Avoid routing input signal bundles alongside high-voltage power lines or variable frequency drive cables, as this proximity increases the likelihood of inductive noise. Finally, verify that the 24 V DC power supply rails are regulated and free from excessive ripple before energizing the module.
