ADV159-P00 S1 YOKOGAWA Digital Input Module

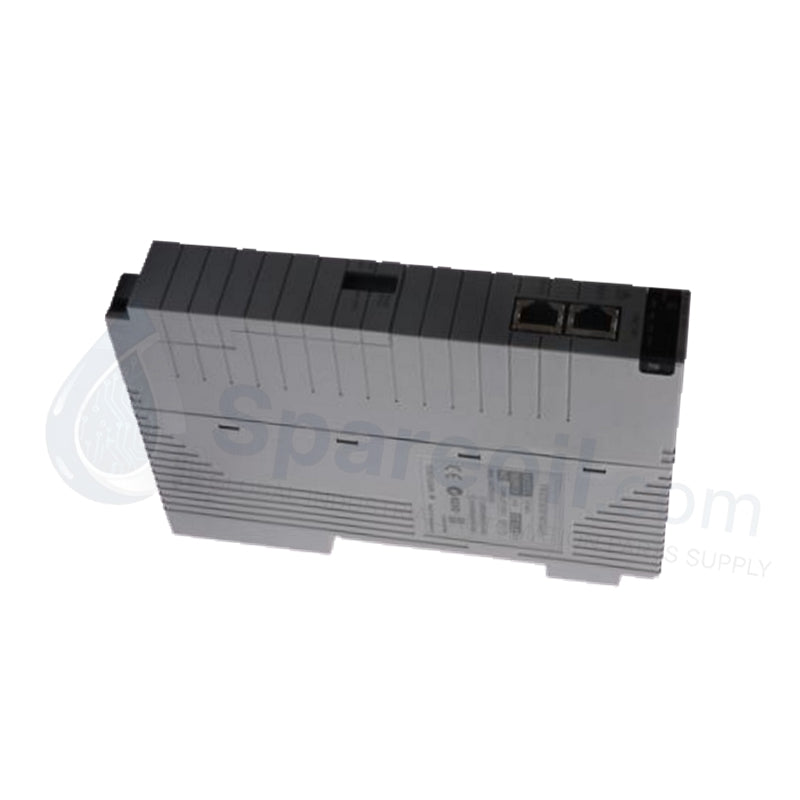

YOKOGAWA ADV159-P00 S1 Digital Input Module

YOKOGAWA ADV159-P00 S1 Digital Input Module

Availability: 10 left in stock

YOKOGAWA ADV159-P00 S1 Digital Input Module The YOKOGAWA ADV159-P00 S1, also cataloged as the ADV159-P00 Digital Input Module, operates as...

SKU: ADV159-P00

Manufacturer: Yokogawa
Product No.: ADV159-P00
Product Type: Digital Input Modules
Product Origin: Japan
Payment:T/T, Western Union
Weight: 400g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

YOKOGAWA ADV159-P00 S1 Digital Input Module

The YOKOGAWA ADV159-P00 S1, also cataloged as the ADV159-P00 Digital Input Module, operates as a dedicated hardware component for discrete signal acquisition and logic state conversion within CENTUM VP and CS 3000 distributed control systems (DCS).

Suffix Breakdown & Model Matrix

The ADV159 series nomenclature defines hardware configuration and signal processing capabilities. The "P00" suffix denotes the standard module type with native support for pushbutton input detection. The "S1" suffix identifies the specific hardware revision, ensuring compatibility with established field interface bus architectures.

Hardware Specifications

Parameter	Specification
Model	ADV159-P00 S1
Brand	YOKOGAWA
Origin	Japan
Weight	0.40 kg
Dimensions	120 mm x 90 mm x 40 mm
Operating Temp	-10 deg C to +55 deg C
Power Consumption	330 mA (5 VDC system bus)
Input Density	32 isolated channels
Isolation	500 VAC (1 min)

Process Control and Channel-to-Channel Isolation

The CENTUM VP architecture utilizes the ADV159-P00 to bridge field-side discrete instrumentation with system-level control logic. The module provides channel-to-system and channel-to-channel isolation, effectively mitigating common-mode noise and ground loops in high-density process environments. It supports 4-20 mA HART loop protocol principles indirectly by monitoring discrete status changes from field-mounted transmitters and limit switches. The module design facilitates I/O density scaling through its plug-in form factor, allowing for high-speed signal processing with an input response time of 8 ms for status inputs and 20 ms for pushbutton inputs. Furthermore, the module supports dual-redundant configurations, providing fault tolerance for safety-critical interlock schemes in large-scale plant operations.

Frequently Asked Questions

Q: Does the ADV159-P00 support hot-swapping during active process operations?

A: Yes, the module is designed for hot-swapping within the Yokogawa I/O nest. This allows for maintenance or module replacement without requiring a system shutdown or disruption to active control loops, provided that site-specific safety protocols are followed.

Q: How does the module handle the different response times for status versus pushbutton inputs?

A: The module internal logic distinguishes between standard discrete status signals and momentary pushbutton inputs. Status inputs are sampled with an 8 ms response time, whereas pushbutton input modes utilize a 20 ms debounce and pulse-width detection filter to ensure accurate operator command registration.

Q: Is this module compatible with both sink and source field wiring configurations?

A: The ADV159-P00 is engineered to support 24 VDC sink and source configurations, providing the necessary flexibility to interface with various discrete field devices such as dry contacts, proximity sensors, and pilot relays.

Field Installation Guidelines

Mounting: Secure the module into the designated slot of the I/O nest. Ensure the module is fully inserted until the connector engages with the backplane, then lock the retention mechanism to prevent loosening from vibration.
Signal Wiring: Terminate field discrete inputs to the high-density KS cable connector. Verify the wiring polarity matches the sink/source configuration requirements of the specific field device to avoid signal inversion or electrical damage.
Shielding: Ensure that cable shields are properly grounded at the cabinet entry point to maintain the module's 500 VAC withstanding voltage rating and protect against external electromagnetic interference.
Validation: Use the CENTUM VP engineering workstation to perform a loop test. Confirm that the status of each discrete field device is correctly updated in the DCS database before authorizing the module for operational use.
