ADV169-P50 Yokogawa Digital Input Module

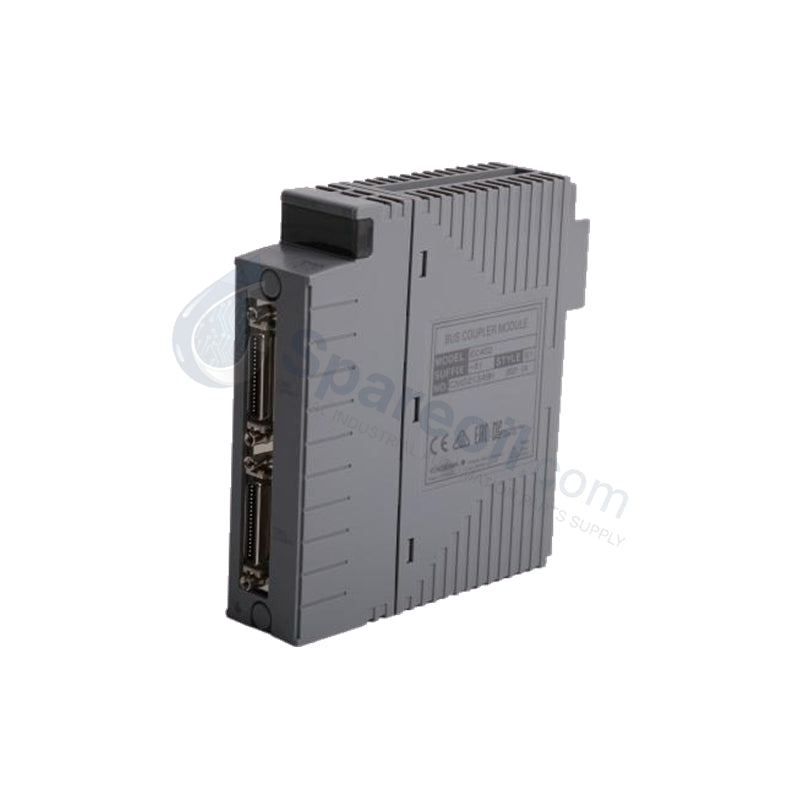

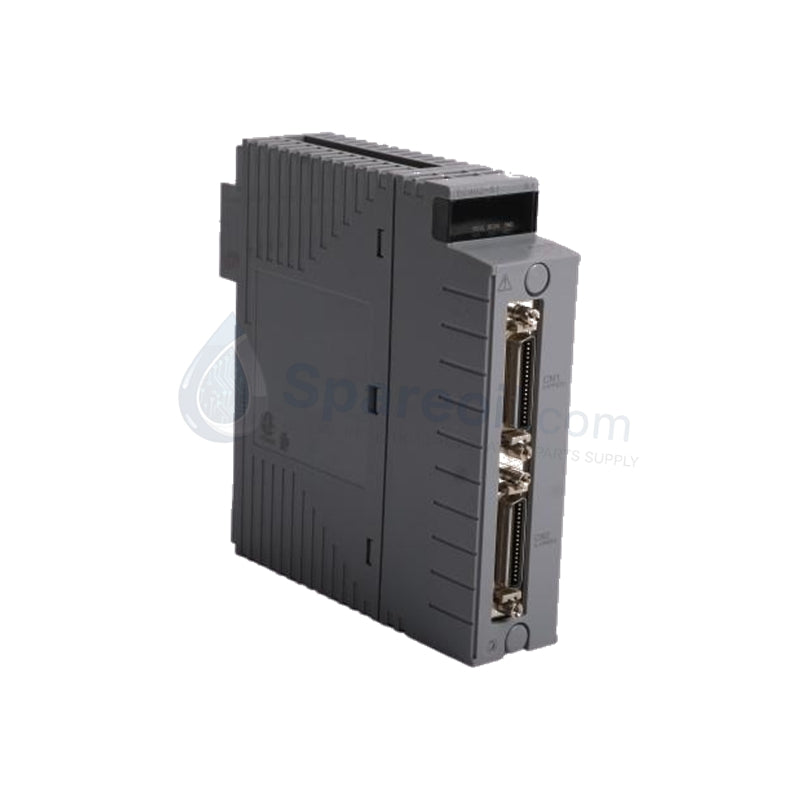

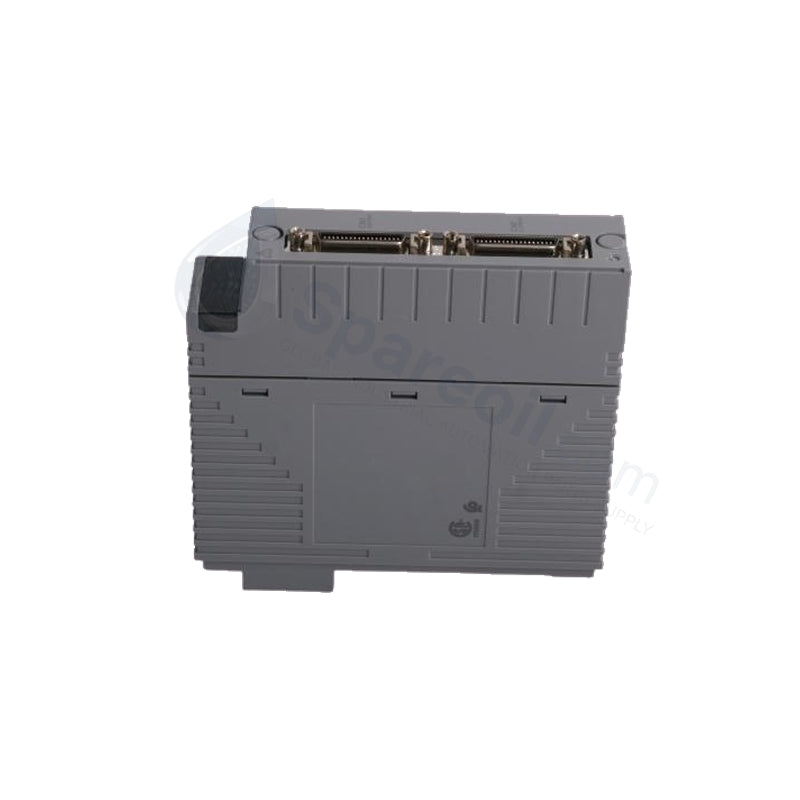

Yokogawa ADV169-P50 CENTUM VP 64-Channel Digital Input Module

Yokogawa ADV169-P50 CENTUM VP 64-Channel Digital Input Module

Availability: 10 left in stock

Yokogawa ADV169-P50 CENTUM VP Digital Input Module Configured for high-density signal acquisition in CENTUM VP control systems, the Yokogawa ADV169-P50...

SKU: ADV169-P50

Manufacturer: Yokogawa
Product No.: ADV169-P50
Product Type: Digital Input Modules
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Yokogawa ADV169-P50 CENTUM VP Digital Input Module

Configured for high-density signal acquisition in CENTUM VP control systems, the Yokogawa ADV169-P50 (ADV169 Digital Input Module) provides direct physical/electrical execution across 64 isolated input channels. The hardware processes 24 VDC discrete signals from field switches, proximity sensors, and interlock contacts via ST6 architecture integration. Channel isolation grouped in 16-channel common negative-side banks prevents stray potential differences from disrupting internal backplane logic. The module incorporates Sequence of Events (SOE) timestamp logging capabilities to resolve transient state sequences during automated plant operations.

Suffix Breakdown & Model Matrix

Base Code	Option Code	Description
ADV169		Digital Input Module (64-channel, 24 VDC, ST6-compatible)
	-P	With status and pushbutton input functions
	5	Basic type with dual-redundancy support
	0	Always 0

Hardware Specifications

Parameter	Specification
Model	ADV169-P50
Brand	Yokogawa
Origin	Japan
Weight	0.30 kg
Dimensions	130 x 120 x 30 mm
Operating Temp	-20 to +60 deg C
Power Consumption	4.0 W maximum (800 mA at 5 VDC)
Input Type	Digital Input (dry contact or DC voltage input)
Number of Channels	64 channels
Signal Isolation	Galvanic isolation per channel bank (2 kV AC withstand)
Rated Input Voltage	24 VDC
Input ON Voltage	18 to 26.4 VDC
Input OFF Voltage	5.0 VDC or lower
Nominal Input Current	4.1 mA per channel
Response Time	8 ms maximum
Mounting Type	Field Control Unit (FCU) base plate
Protection Rating	IP20

Channel Isolation & Loop Signal Conditioning

Engineered for demanding 4-20 mA HART loop protocol plant networks and dense I/O cabinets, the module features galvanic isolation across every 16-channel common bank to suppress common-mode electrical noise. The internal input circuitry processes status signals with dynamic debounce filtering to eliminate contact bounce errors. By isolating field-side voltage spikes from the internal system bus, the module prevents ground loops from compromising backplane communication integrity across distributed control nodes.

Frequently Asked Questions

Q: Does the ADV169-P50 support hot-swapping during live node execution?

A: Technicians can hot-swap the module without powering down the node base plate or interrupting adjacent I/O cards. However, field power supplies connected via the dedicated KS9 interface cable must remain stable to prevent transient trips on field devices.

Q: How does the channel isolation operate across the 64 inputs?

A: Channels group into four isolated banks of 16 inputs each. Every bank shares a common ground terminal, providing galvanic isolation up to 2 kV AC between separate banks and the backplane logic.

Field Installation Guidelines

Power down all field-side 24 VDC loops connected to the terminal block before inserting or removing the KS9 signal cable.
Align the module card guide rails with the designated slot on the Field Control Unit base plate.
Slide the card into the slot until the top and bottom lock levers engage the chassis frame with a mechanical click.
Fasten dedicated KS9 cable assemblies securely to the front connector interface, ensuring locking screws are tightened hand-tight.
Connect field cable shielding to the main cabinet grounding bar using a low-impedance grounding clamp. Maintain a single grounding point to avoid ground loops.
Verify that high-voltage AC cables maintain a minimum clearance distance of 200 mm from the digital input field wiring harness.
