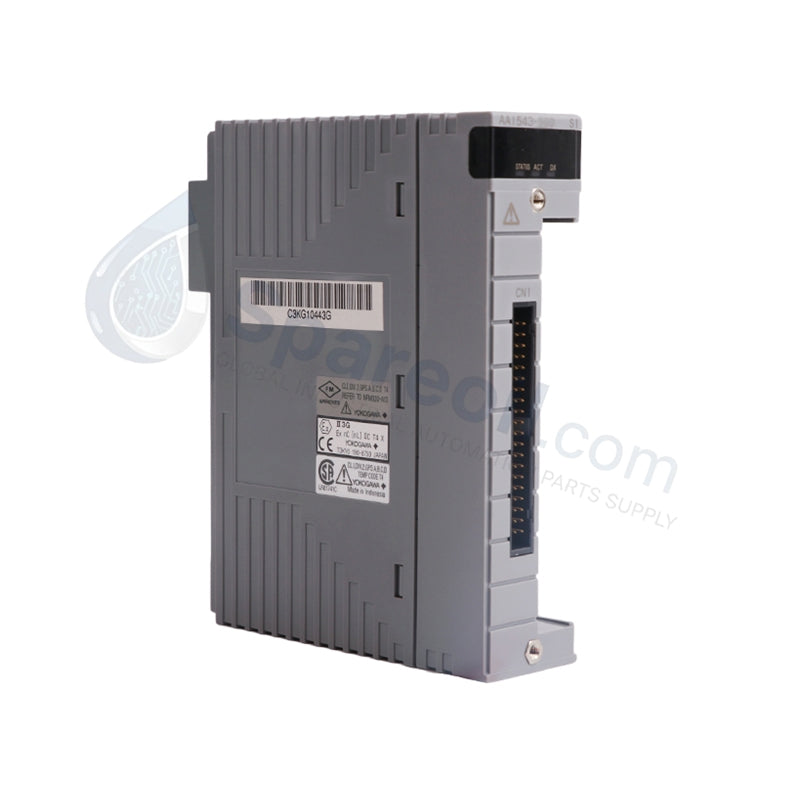

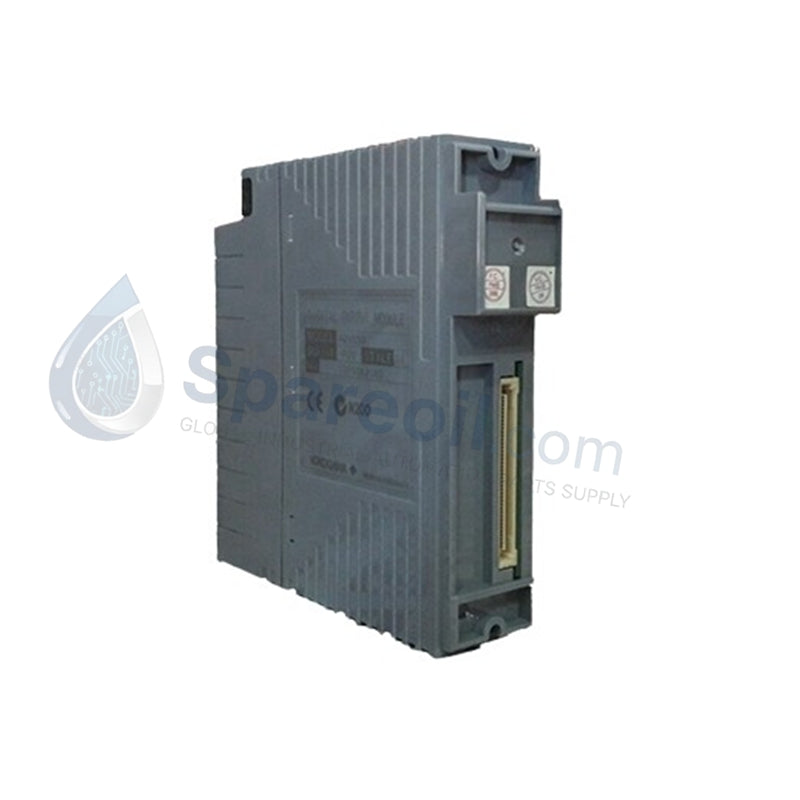

Yokogawa ADV551-P10 Digital Output Module

Configured for discrete signal execution in CENTUM VP platforms, the Yokogawa ADV551-P10 (ADV551-P10 Digital Output Module) provides direct physical electrical switching for field-side actuator control.

Suffix Breakdown & Model Matrix

The ADV551-P10 designation denotes the standard module configuration. The secondary suffix /D5A00 specifies the base assembly, supporting a high-density 32-channel architecture. Users must verify the field wiring terminal board compatibility, as the /D5A00 configuration requires specific pressure-clamp or MIL-type connector interfaces to maintain signal integrity during pulse-width modulated (PWM) or continuous discrete operations.

Hardware Specifications

Parameter Specification
Model ADV551-P10/D5A00
Brand Yokogawa
Origin Japan
Weight 0.2 kg
Dimensions 107.5 x 130 x 32.8 mm
Operating Temp 0 deg C to +60 deg C
Power Consumption 4 W
Output Type Current-sink voltage output
Rated Voltage 24 VDC (20.4–26.4 VDC)
Channel Count 32 channels
Response Time <= 10 ms (Pulse/time-proportioning)

Process Control and Signal Integrity

The ADV551-P10 architecture incorporates channel-to-channel isolation and galvanic separation from the system bus to mitigate electrical noise propagation. In high-density DCS configurations, this isolation prevents ground loops when driving external inductive loads such as solenoid valves or pilot relays. To ensure precise output timing, the module utilizes internal optical coupling, providing a 2 kV AC dielectric withstand voltage for 1 minute. The integration of 4-20 mA HART loop protocol compatibility in associated analog subsystems allows this digital module to function as the primary logic trigger for redundant safety or control loops within the Yokogawa CENTUM VP ecosystem.

Frequently Asked Questions (FAQ)

Q: Is the ADV551-P10 capable of hot-swapping during active DCS operation?

A: Yes. The module supports hot-swapping, allowing for extraction and replacement without powering down the carrier or disrupting communication on the system bus. Ensure the slot is properly keyed before full insertion.

Q: What are the primary limitations when utilizing the module for pulse-width modulation?

A: When operating in pulse/time-proportioning mode, the response time is constrained to <= 10 ms. Verify that the field device switching frequency does not exceed the mechanical or electrical limits defined by the 8 ms minimum pulse width parameter.

Field Installation Guidelines

  • Environmental Conditions: The module must be installed in a climate-controlled enclosure providing at least IP20 ingress protection. Avoid areas with extreme vibration or condensation that may exceed 95% RH.

  • Mounting: Seat the module firmly into the designated rack slot. Ensure the latching mechanism is fully engaged to establish a low-impedance connection with the backplane bus.

  • Grounding and Shielding: To prevent EMI/RFI coupling, terminate field cable shields at the designated ground bar within the cabinet. Maintain separation between 24 VDC power lines and low-voltage signal cabling.

  • Wiring: Utilize appropriate ferrule-terminated wiring for pressure-clamp terminals to prevent strand fraying and intermittent high-resistance connections. Verify voltage levels at the terminal block before finalizing the module connection to ensure the source remains within the 20.4 VDC to 26.4 VDC range.
