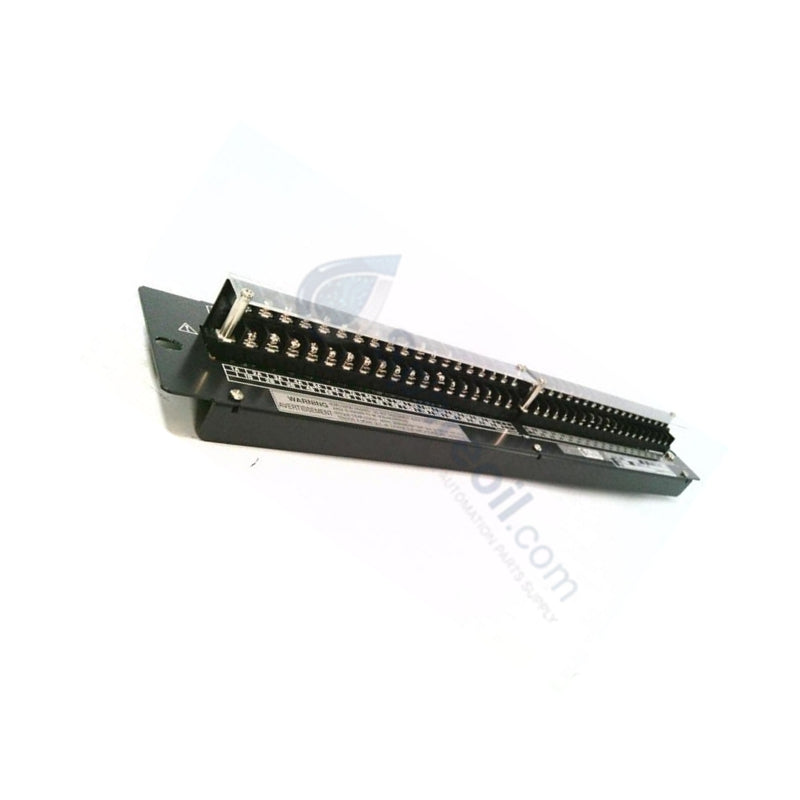

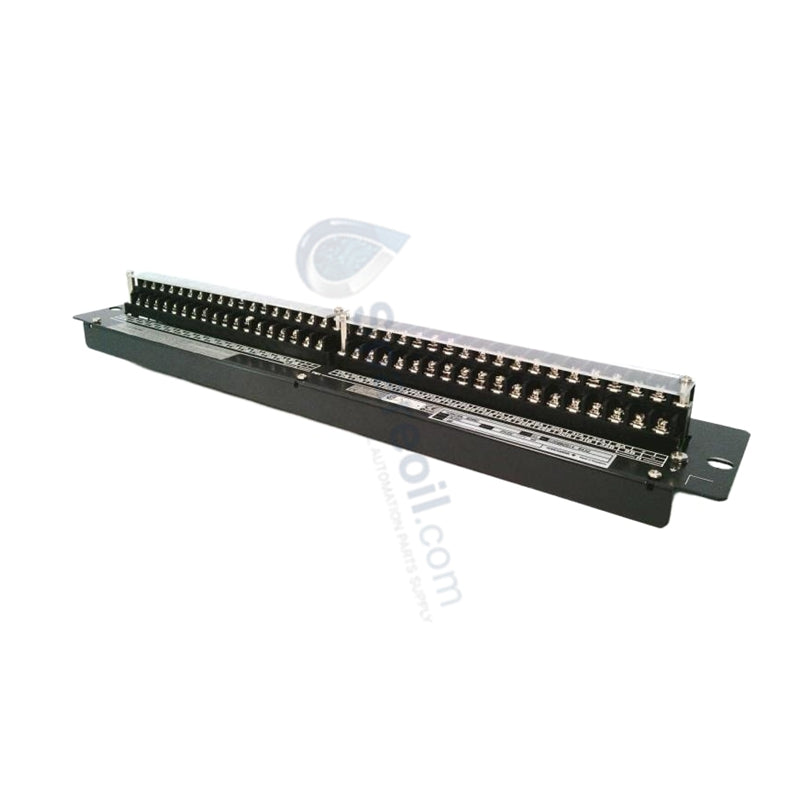

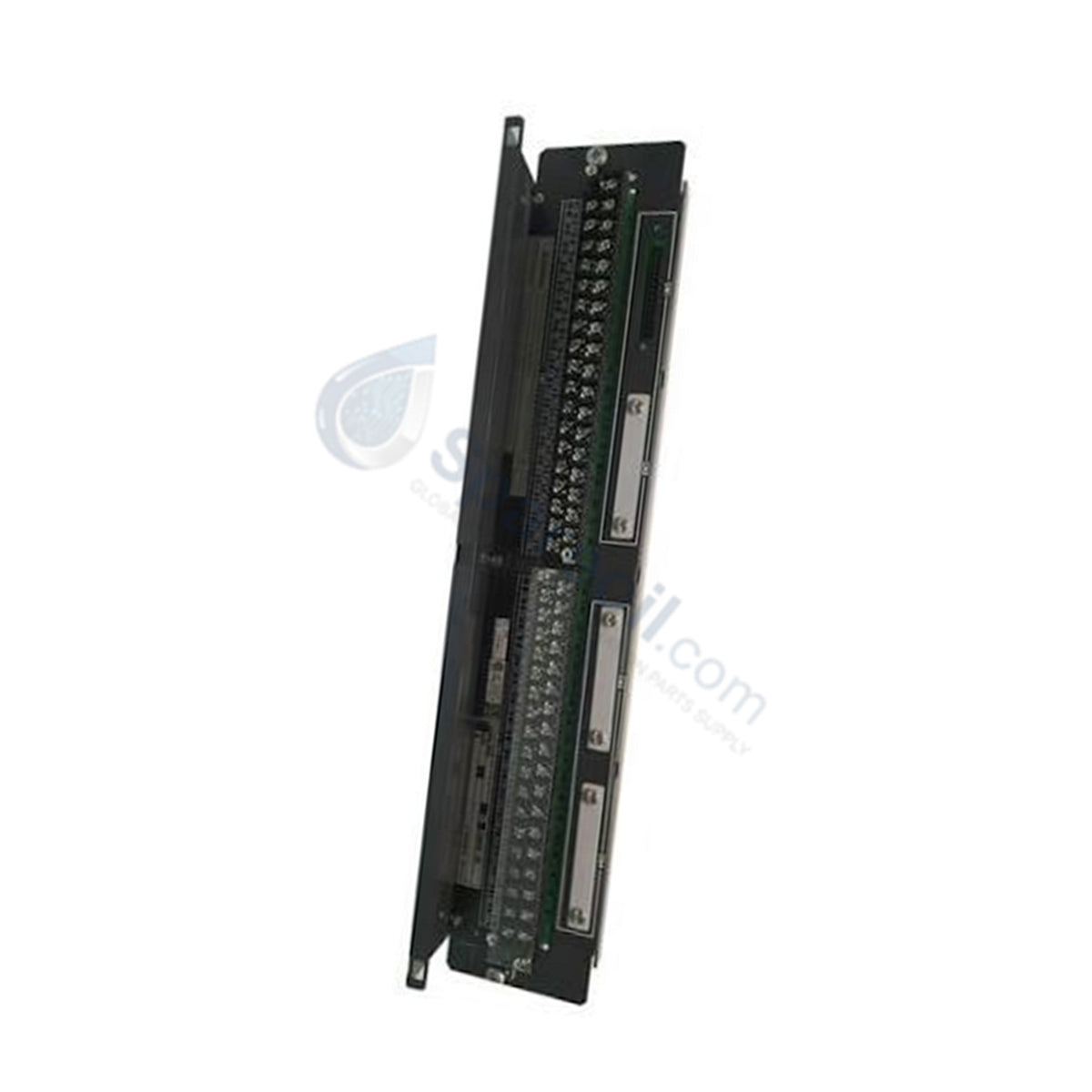

Yokogawa AED5D-01 CENTUM VP ESB Bus Interface Module

Availability: 10 left in stock

Yokogawa AED5D-01 Duplex ESB Bus Interface Module Configured for high-speed node interconnection in CENTUM CS 3000 and CENTUM VP control...

SKU: AED5D-01

Manufacturer: Yokogawa
Product No.: AED5D-01
Product Type: Communication Modules
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Yokogawa AED5D-01 Duplex ESB Bus Interface Module

Configured for high-speed node interconnection in CENTUM CS 3000 and CENTUM VP control platforms, the Yokogawa AED5D-01 (AED5D Duplex ESB Bus Interface Module) provides direct physical/electrical execution across distributed process networks.

Suffix Breakdown & Model Matrix

The catalog identifier string AED5D-01 specifies a fixed hardware generation and functional revision within the Yokogawa ESB bus interface series:

AED5D: Base hardware code for Duplex ESB Bus Interface Module / Terminal Board interface assembly.
-01: Hardware revision suffix specifying updated internal optical isolation circuits and enhanced bus transceiver components.

Hardware Specifications

Parameter	Specification
Model	AED5D-01
Brand	Yokogawa
Origin	Japan
Weight	0.30 kg
Dimensions	120 x 28 x 90 mm
Operating Temp	0 to +55 deg C
Power Consumption	~5 W
Communication Protocol	Enhanced Serial Bus (ESB)
Bus Architecture	Duplex redundant network design
Data Transfer Rate	Up to 125 Mbps
Input Power Supply	24 VDC
Galvanic Isolation	Optical isolation (bus-to-system interface)
Max Voltage / Current Rating	250 V AC/DC, 5 A per terminal point

DCS Process Control & Network Bus Interfaces

The AED5D-01 interface module manages dual-channel serial communication between Field Control Units (FCUs) and remote I/O nodes via the Enhanced Serial Bus (ESB) protocol operating at transfer speeds up to 125 Mbps. Integrated optical isolation barriers sever physical ground paths between external network trunks and internal controller backplane buses, providing complete channel-to-channel isolation that prevents EMI coupling and localized electrical faults from disrupting system operations. Furthermore, the module handles dual-redundant bus arbitration, continuously validating signal integrity across both communication channels to maintain uninterrupted data transmission during field wiring line breaks or single transceiving port failures.

Frequently Asked Questions

Q: How does the duplex ESB bus architecture react to a cable rupture on a single bus line?

A: The hardware logic automatically isolates the damaged cable segment and routes data traffic across the secondary redundant line within microseconds without losing data frames or interrupting control logic cycles.

Q: Can maintenance personnel hot-swap an AED5D-01 module during active system operation?

A: Yes, in a fully redundant ESB bus node configuration, a faulty module can be removed and replaced without powering down the field control station or interrupting adjacent node communications.

Q: What power source supplies the optical isolation circuits within the AED5D-01 module?

A: The module draws operational power directly from the internal 24 VDC system supply rail provided by the host controller rack.

Field Installation Guidelines

Align the module card edges with the backplane guide rails of the designated FCU or I/O node slot and push firmly until the locking lever snaps into place.
Secure all ESB bus cable connectors using the integrated retaining thumbscrews to ensure constant electrical contact under vibration.
Route ESB bus cables in separate grounded metallic conduits, keeping a minimum clearance of 100 mm from high-voltage AC lines.
Connect the cable shield drain wire directly to the cabinet functional earth terminal bar to ensure effective high-frequency noise dissipation.
Verify that ambient airflow around the module rack remains unblocked to prevent thermal accumulation above the +55 deg C operating limit.
