AFV30D-S41151/HKU Yokogawa Field Control Unit

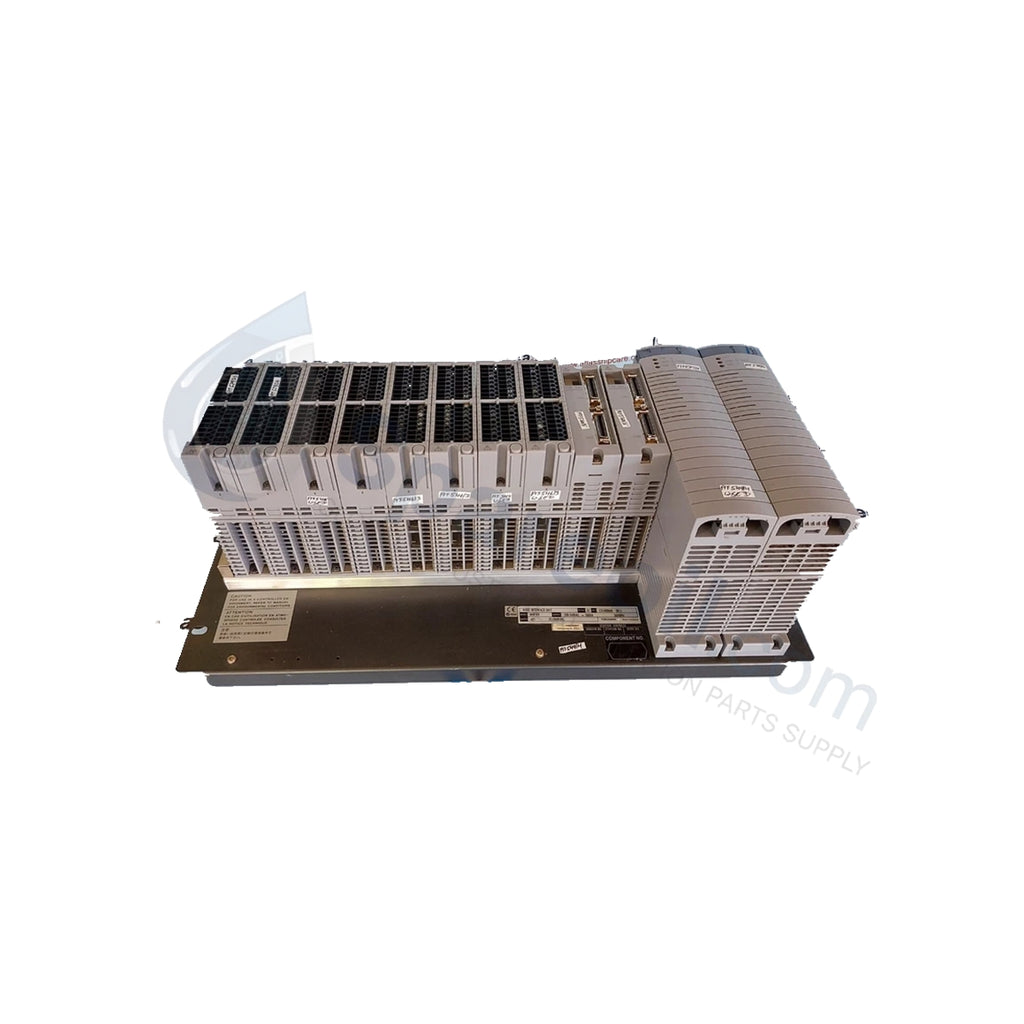

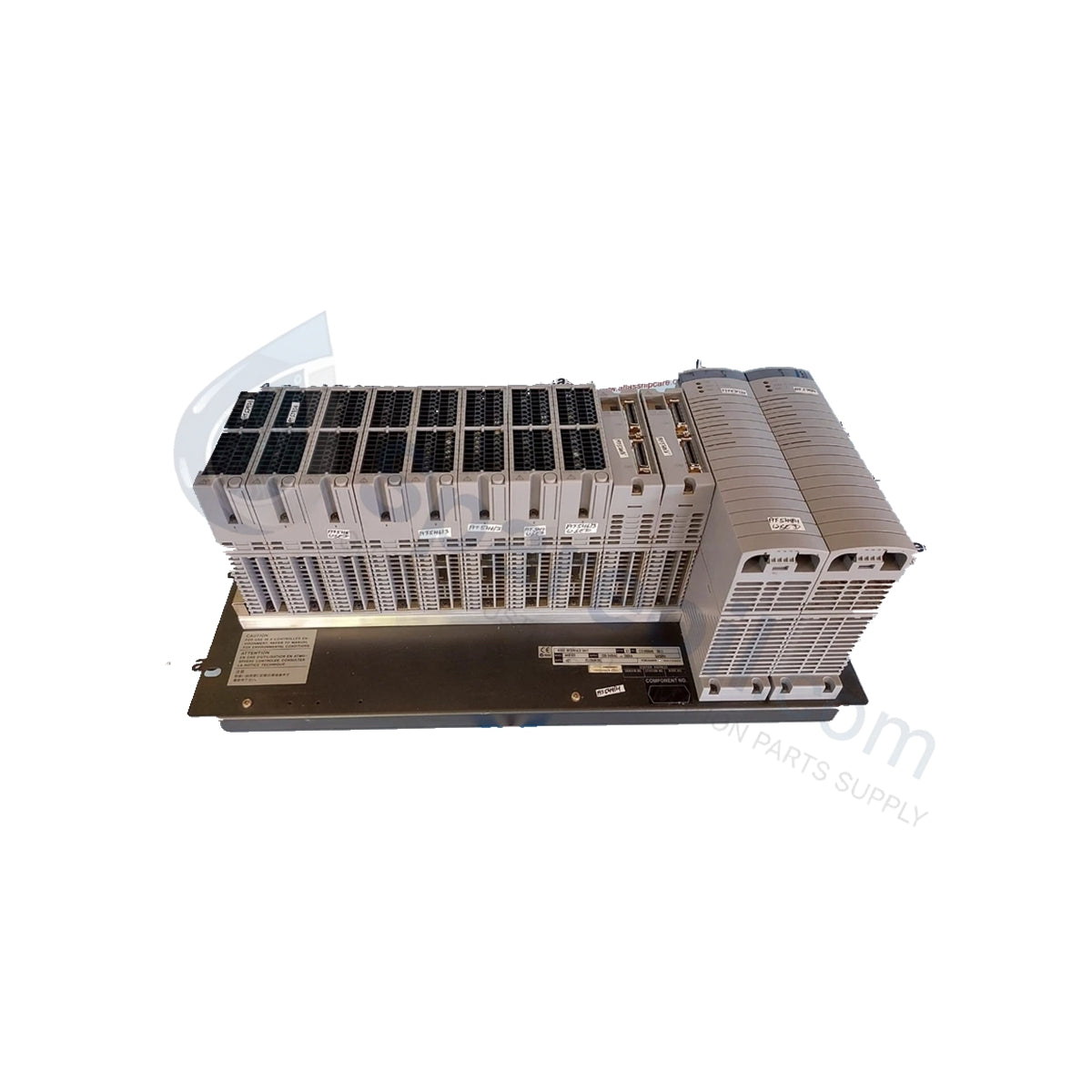

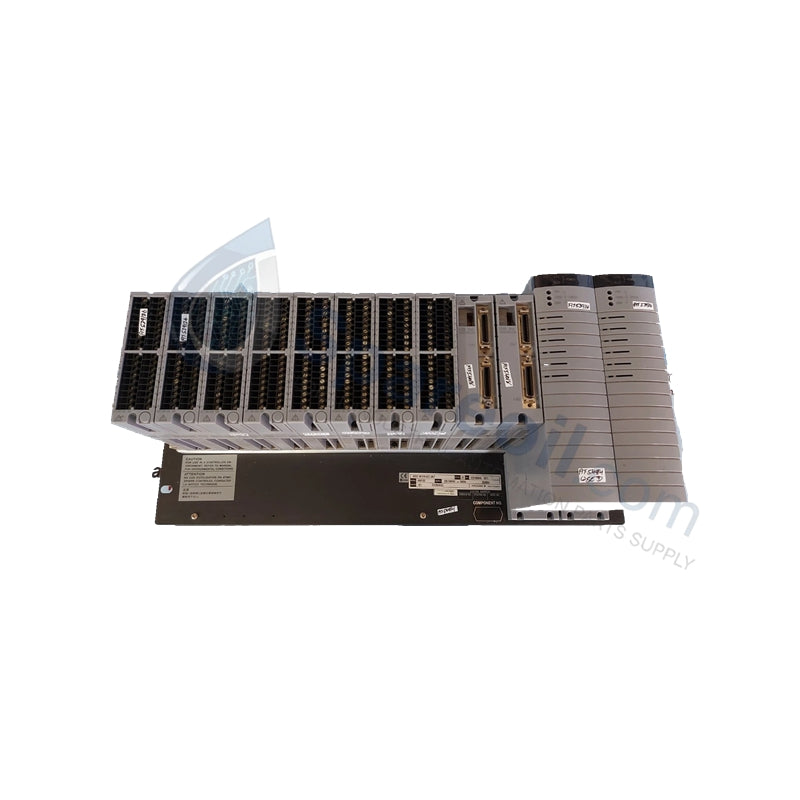

Yokogawa AFV30D-S41151/HKU Duplexed Field Control Unit DCS Module

Yokogawa AFV30D-S41151/HKU Duplexed Field Control Unit DCS Module

Availability: 10 left in stock

Yokogawa AFV30D-S41151/HKU Field Control Unit The Yokogawa AFV30D-S41151/HKU, also cataloged as the AFV30D-S41151 Field Control Unit, operates as a dedicated...

SKU: AFV30D-S41151/HKU

Manufacturer: Yokogawa
Product No.: AFV30D-S41151/HKU
Product Type: Field Control Units
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Yokogawa AFV30D-S41151/HKU Field Control Unit

The Yokogawa AFV30D-S41151/HKU, also cataloged as the AFV30D-S41151 Field Control Unit, operates as a dedicated hardware component for high-availability regulatory and sequence control within CENTUM VP platforms. Configured for duplexed operation, this unit provides direct physical execution of logic processing, utilizing a dual-CPU architecture to ensure deterministic control execution and seamless redundancy management for critical industrial processes.

Suffix Breakdown & Model Matrix

Model	Description
AFV30D	Base Model: Duplexed Field Control Unit (FCS)
-S41151	Standard Configuration: Vnet/IP Interface & FIO Support
/HKU	Ordering Option: Specialized Hardware Finish/Region Specification

Hardware Specifications

Parameter	Specification
Model	AFV30D-S41151/HKU
Brand	Yokogawa
Origin	China
Weight	0.5 kg
Dimensions	130 mm x 140 mm x 32 mm
Operating Temp	0 deg C to +55 deg C
Power Consumption	~10 W
Control Capacity	Up to 10,000 function blocks

DCS Process Control and Connectivity

The AFV30D-S41151/HKU maintains deterministic communication via redundant Vnet/IP Ethernet ports, isolating critical control traffic from standard network overhead. The controller architecture utilizes high-speed industrial processors to manage up to 1,000 control loops with a minimum 1 ms scan cycle. To maintain process stability, the unit enforces strict channel-to-channel isolation on associated I/O modules, preventing common-mode noise from entering the control bus. Integrated cold junction compensation (CJC) protocols are supported for high-precision temperature loop monitoring, while the internal battery-backed SRAM ensures data retention during transient power loss events.

Frequently Asked Questions

Q: Does the unit support hot-swapping while the duplexed pair is active?

A: Yes, the AFV30D-S41151/HKU allows for the online replacement of a single CPU module. The redundant partner continues to execute the control strategy, and the replacement unit will automatically synchronize its memory once inserted.

Q: How is the Vnet/IP redundancy maintained during communication faults?

A: The controller continuously validates the health of both Ethernet ports. In the event of a link failure or packet loss on the primary interface, the control logic executes an instantaneous failover to the secondary port without interrupting the scan cycle.

Q: Is the LFS1700 control function permanently embedded?

A: The LFS1700 control function is a logical execution environment hosted by the CPU. The application strategy is loaded into the module’s flash memory, which remains active provided the hardware configuration matches the intended control architecture.

Field Installation Guidelines

Mounting and Bonding: Secure the control unit into the designated FCS baseplate. Ensure the rack-mount chassis maintains a low-impedance connection to the cabinet earth bus to ensure effective EMI shielding and support the controller's noise immunity specifications.
Wiring and Termination: Use high-quality shielded Ethernet cabling for all Vnet/IP network connections. Route data cables through dedicated conduits, maintaining physical separation from high-voltage AC lines to prevent induced signal interference.
Power Redundancy: Connect redundant power sources to the controller's power terminals. Ensure both sources meet the specified 24 V DC requirements to allow for continuous operation during a single power supply failure.
Thermal Management: Maintain a clear vertical path for airflow around the module to support natural convection cooling. Do not exceed the 55 deg C operating limit, as elevated temperatures can reduce the lifespan of the battery-backed SRAM components.
