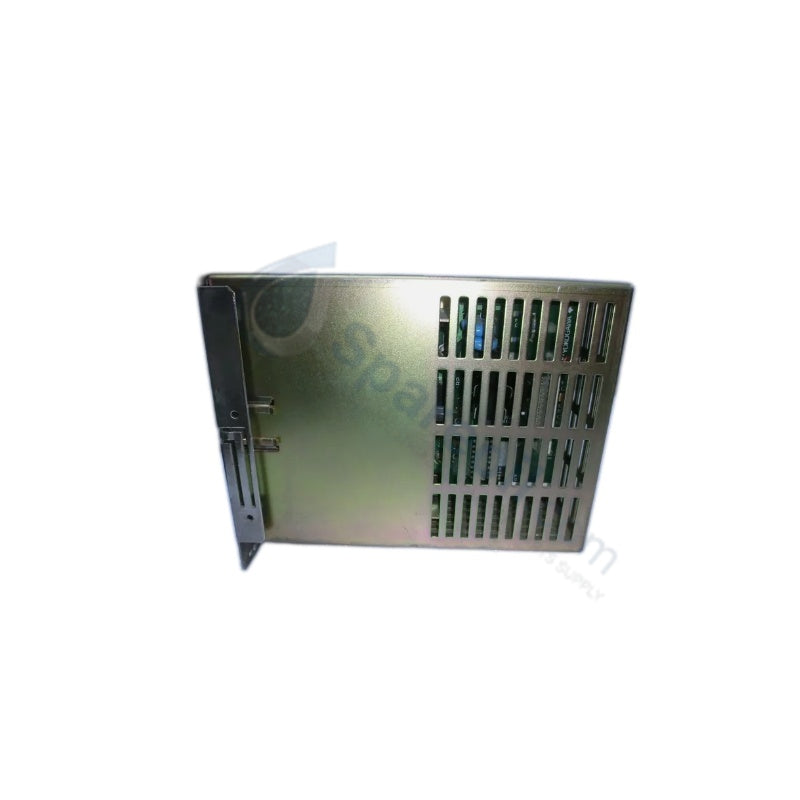

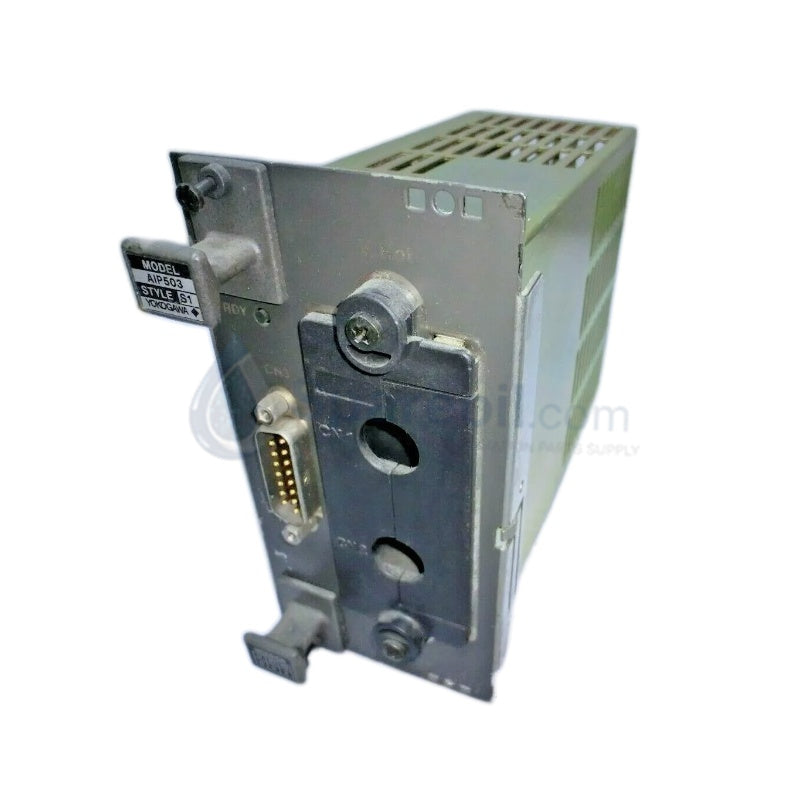

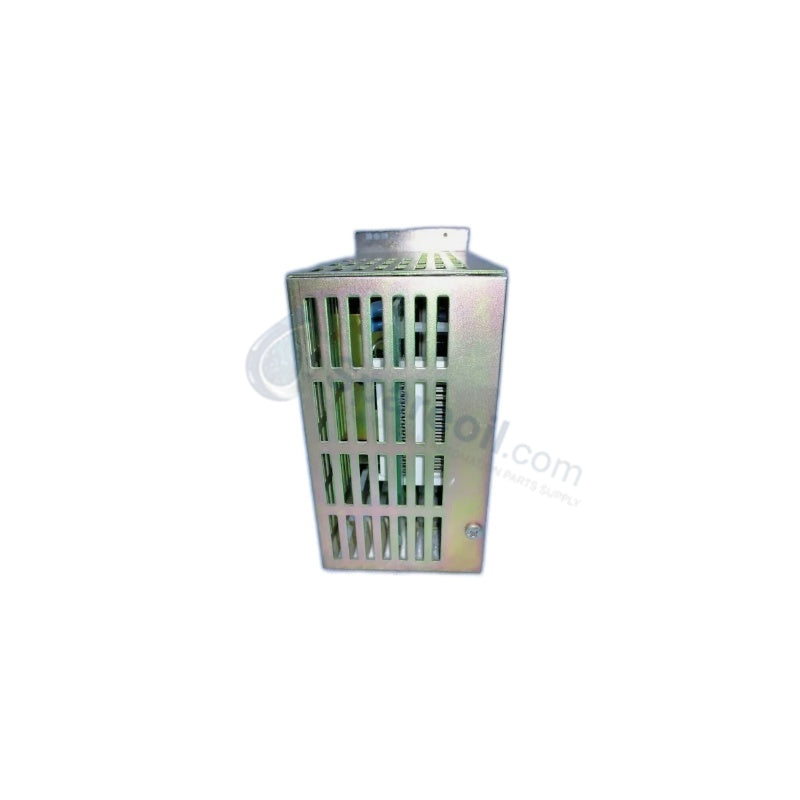

Yokogawa AIP503-S1 V-NET Coupler Module

The Yokogawa AIP503-S1, also cataloged as the AIP503 V-NET Coupler Module, operates as a dedicated hardware component for signal coupling and bidirectional data transmission within CENTUM CS and CENTUM VP networks. The module provides real-time data link execution between Field Control Stations (FCS), Human Interface Stations (HIS), and remote I/O nodes. Utilizing dual-redundant V-NET communication paths, the hardware maintains continuous bus synchronization while insulating signal drops across coaxial and bus-level control topologies.

Suffix Breakdown & Model Matrix

Suffix / Option Code Technical Specification / Configuration Details
AIP503 Base model designation for V-NET Coupler Communication Interface Module
S1 Standard option suffix specifying hardware revision level and standard circuit board component assembly

Hardware Specifications

Parameter Specification
Model AIP503-S1
Brand Yokogawa
Origin Japan
Weight 1.75 lbs (0.79 kg)
Dimensions 7.6 cm x 15.2 cm x 17.8 cm (76 x 152 x 178 mm)
Operating Temp 0 to +55 deg C
Power Consumption 5 W
Network Interface V-NET (10BASE-5) / system bus interface
Power Supply 24 VDC (system supplied)
System Compatibility CENTUM VP, CENTUM CS, ProSafe-RS
Redundancy Dual-redundant bus paths
Relative Humidity 5 to 95% RH (non-condensing)

Process Control & DCS Instrumentation Characteristics

Operating within distributed control system (DCS) architectures, the unit enforces deterministic signal propagation across the V-NET control bus. Channel-to-channel isolation prevents electrical ground loops and common-mode transients from disrupting data transfers between Field Control Units (FCUs) and supervisory stations. In dual-redundant network configurations, the module executes continuous line monitoring, switching signal paths within microsecond thresholds if primary signal attenuation or cable discontinuity occurs.

Frequently Asked Questions

Q: How does the AIP503-S1 maintain bus signal integrity across coaxial network segments?

A: The coupler module incorporates impedance-matched transformer isolation circuits that prevent signal reflections and suppress high-frequency noise interference across the coaxial V-NET bus line.

Q: Is hot-swapping supported for the AIP503-S1 during active system operation?

A: Yes, in redundant V-NET configurations, the module can be replaced while the secondary coupler handles active control bus traffic, preventing system downtime or interruption to field control stations.

Q: What power source energizes the internal circuitry of the coupler module?

A: The module receives 24 VDC directly from the backplane power rail within the module mounting unit, consuming approximately 5 W during standard operation.

Field Installation Guidelines

  1. Power down the specific rack slot or verify that the active control channel has transferred to the secondary redundant coupler before inserting the unit into the chassis slot.
  2. Align the printed circuit board edges with the chassis guide slots and push the module firmly until the backplane connector locks into position.
  3. Tighten the faceplate retaining screws firmly to complete chassis grounding and prevent mechanical disconnects under vibration.
  4. Connect the V-NET coaxial interface cables using standard BNC connectors, ensuring proper termination resistors are installed at the physical ends of the bus segment.
  5. Ensure a minimum clearance of 100 mm above and below the cabinet rack to allow natural convection airflow, maintaining operating temperatures between 0 and +55 deg C.
