AIP830-001/EIM Yokogawa CENTUM VP Datasheet & Technical Manual

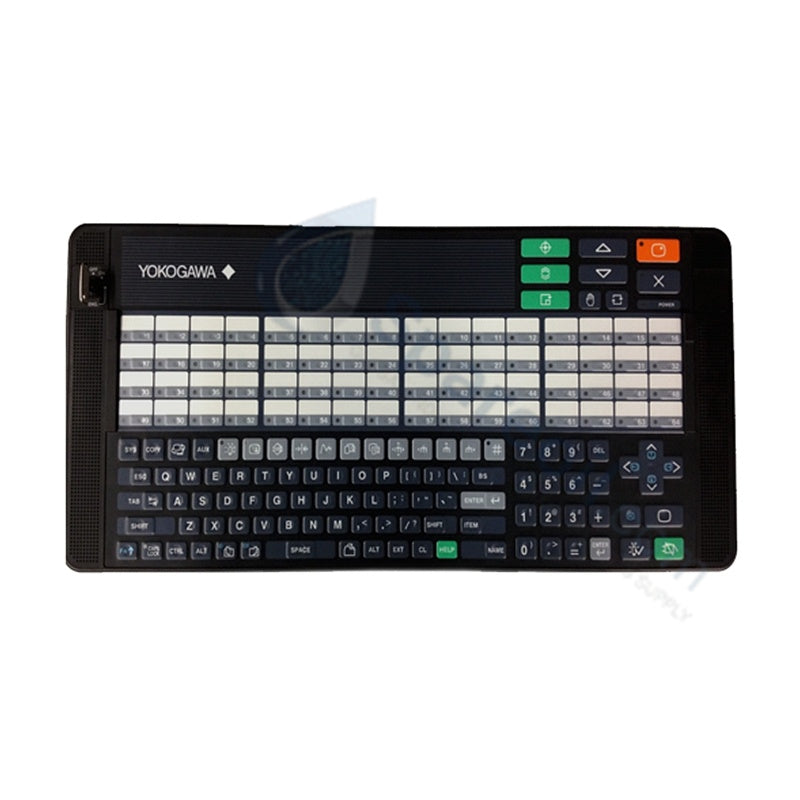

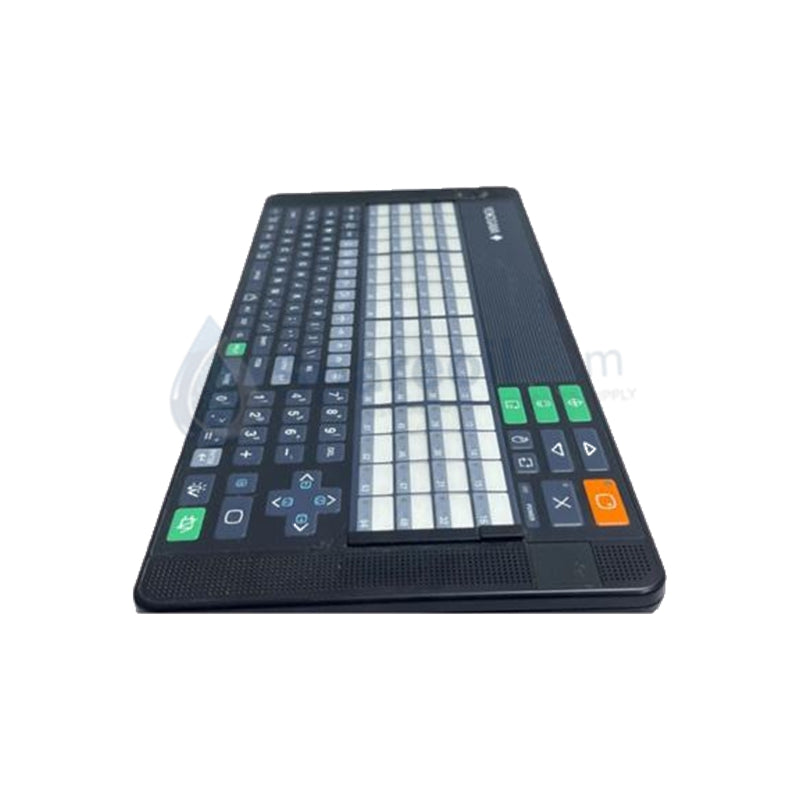

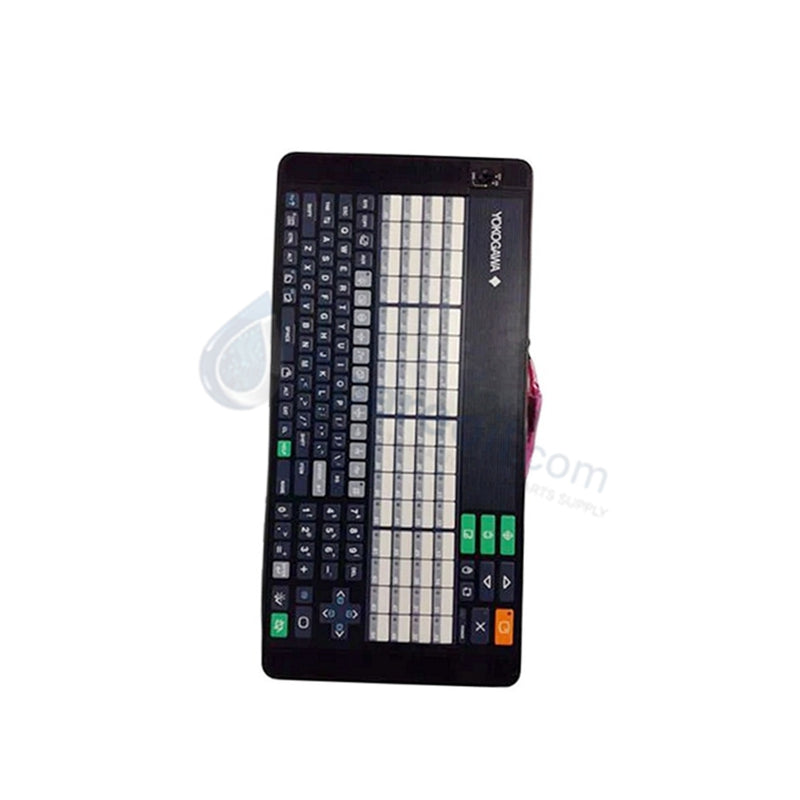

Yokogawa AIP830-001/EIM CENTUM VP Operation Keyboard

Yokogawa AIP830-001/EIM CENTUM VP Operation Keyboard

Availability: 20 left in stock

Yokogawa AIP830-001/EIM Operation Keyboard The Yokogawa AIP830-001/EIM, also cataloged as the AIP830 Operation Keyboard, operates as a dedicated hardware component...

SKU: AIP830-001-EIM

Manufacturer: Yokogawa
Product No.: AIP830-001-EIM
Product Type: Operation Keyboards
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 900g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Yokogawa AIP830-001/EIM Operation Keyboard

The Yokogawa AIP830-001/EIM, also cataloged as the AIP830 Operation Keyboard, operates as a dedicated hardware component for single-loop operator action input and direct alarm state acknowledgment within CENTUM VP Human Interface Stations (HIS).

Suffix Breakdown & Model Matrix

Code	Option / Specification	Description
AIP830	Base Model	Operation Keyboard for Single-loop Operation
-0	Mode Selection	Without Mode selection switch
0	Key Type	Operation confirmation key Type A
1	Fixed Code	Always 1
/EIM	Option Code	With English Instruction Manual

Hardware Specifications

Parameter	Specification
Model	AIP830-001/EIM
Brand	Yokogawa
Origin	Japan
Weight	2.0 kg (Net), 3.0 kg (Shipping)
Dimensions	500 x 225 x 44 mm
Operating Temp	5 to 40 deg C
Power Consumption	5 VDC +/-5%, 1.0 A max (Bus-powered)
System Compatibility	CENTUM VP, ProSafe-RS HIS
USB Interface	2 x USB Type-A Ports (USB 2.0 Full-Speed, USB 1.1 Audio)
Key Layout	64 User-definable function keys + Dedicated operation keys
Alarm Output	Built-in speaker for buzzer and audio alarm tones
Interface Cable	2.3 m cable length
Ingress Protection	Standard console-mount industrial rating

Process Control and DCS Connectivity

Configured for Yokogawa CENTUM VP consoles, the AIP830-001/EIM interfaces directly with operator stations via dual USB lines. The hardware channels deterministic tactile keystroke signals while driving real-time audio enunciator responses through the internal speaker. Built-in optoelectronic loop isolation within the HIS motherboard suppresses high-frequency electrical noise, maintaining channel-to-channel isolation and loop communication integrity across distributed process control nodes.

Frequently Asked Questions

Q: How is power provided to the AIP830-001/EIM keyboard?

A: The keyboard operates as a bus-powered USB device receiving 5 VDC at up to 1 A directly from the host Human Interface Station USB ports.

Q: What functionality do the dual USB connections serve on this keyboard?

A: One USB port handles USB 2.0 Full-Speed key code transmission, while the second USB port manages USB 1.1 audio signals for the integrated alarm speaker.

Field Installation Guidelines

Position the AIP830-001/EIM keyboard on a stable, flat operator console surface or secure it using the optional VESA mounting bracket. Connect both USB Type-A cables directly to designated USB root hub ports on the host CENTUM VP Human Interface Station. Route the 2.3 m connection cable away from high-voltage AC wiring or power supply conduits to avoid electro-magnetic interference. Ensure ambient temperatures remain between 5 deg C and 40 deg C during active operation.
