AIP831-111 Yokogawa CENTUM VP Datasheet & Technical Manual

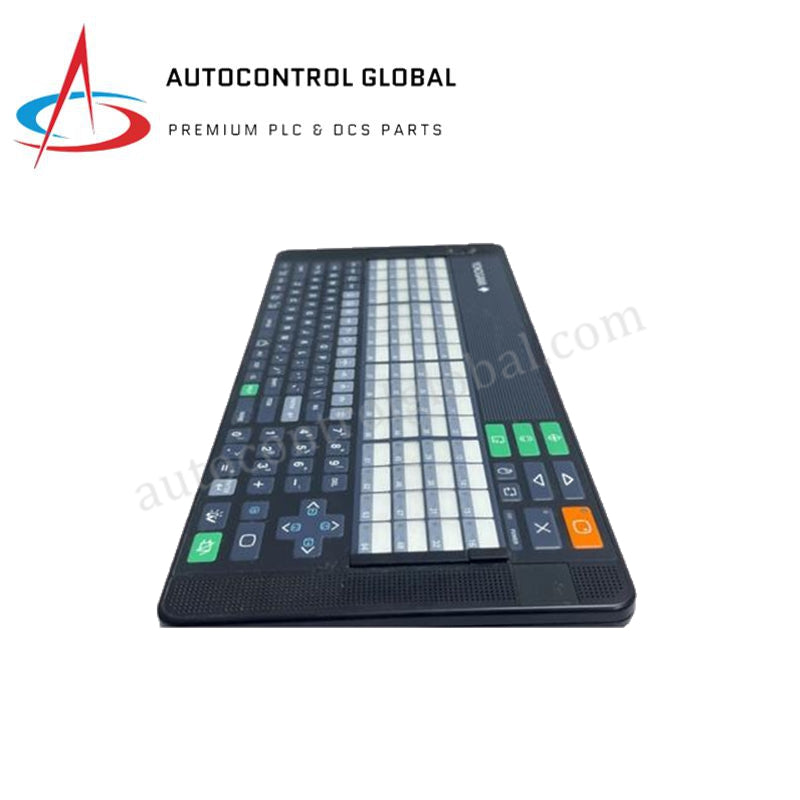

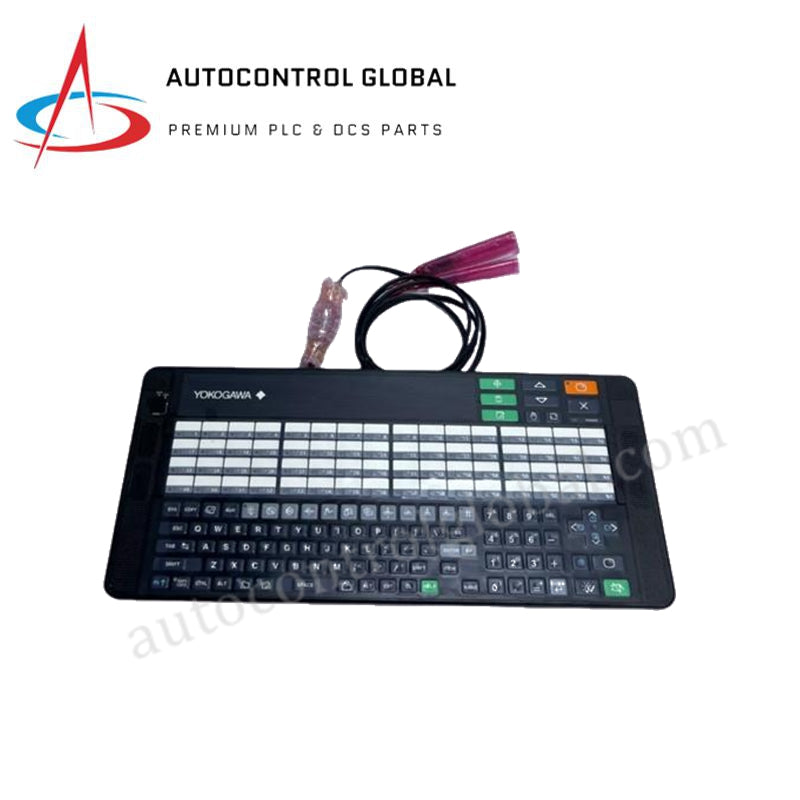

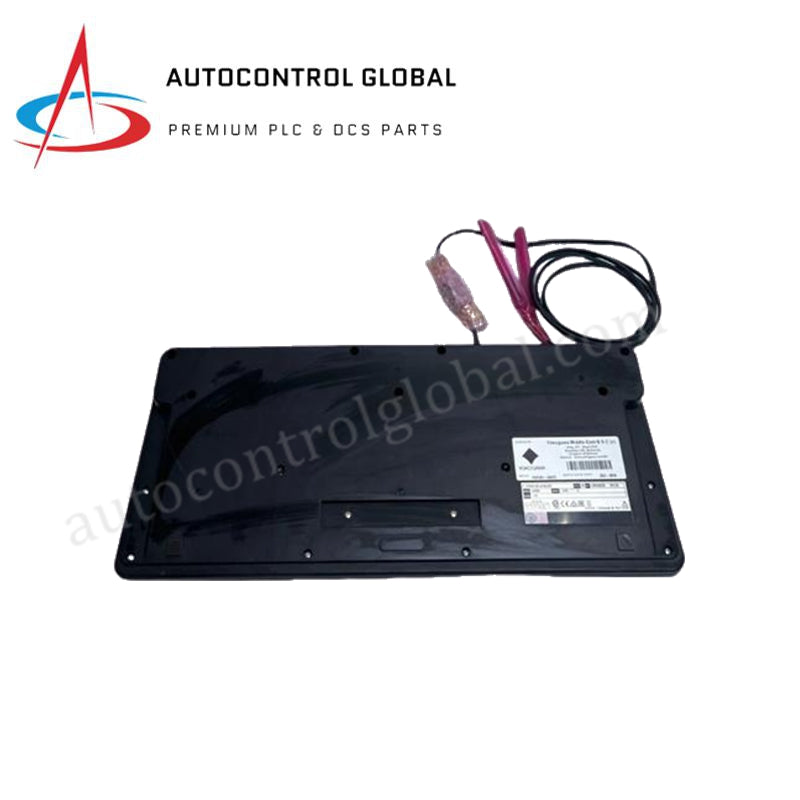

Yokogawa AIP831-111 CENTUM VP HIS Eight-Loop Operation Keyboard

Yokogawa AIP831-111 CENTUM VP HIS Eight-Loop Operation Keyboard

Availability: 20 left in stock

Yokogawa AIP831-111 Operation Keyboard The Yokogawa AIP831-111, also cataloged as the AIP831 Operation Keyboard, operates as a dedicated hardware component...

SKU: AIP831-111

Manufacturer: Yokogawa
Product No.: AIP831-111
Product Type: Operation Keyboards
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Yokogawa AIP831-111 Operation Keyboard

The Yokogawa AIP831-111, also cataloged as the AIP831 Operation Keyboard, operates as a dedicated hardware component for real-time process loop interaction within CENTUM VP Human Interface Station (HIS) platforms.

Suffix Breakdown & Model Matrix

Code Suffix	Option / Configuration	Technical Description
AIP831	Base Model	Operation Keyboard for Eight-loop Simultaneous Operation
-1	Mode Switch	Integrated with Mode selection switch
1	Key Type	Operation confirmation key Type B
1	Fixed Code	Standard fixed designation code (always 1)

Hardware Specifications

Parameter	Specification
Model	AIP831-111
Brand	Yokogawa
Origin	Japan
Weight	2.0 kg (without VESA bracket), 2.5 kg (with VESA bracket)
Dimensions	Standard desktop / VESA mount enclosure
Operating Temp	5 deg C to 40 deg C
Power Consumption	5 VDC +/- 5% at 1 A maximum (bus-powered via USB)
Control Capacity	Eight-loop simultaneous operation
Host Interface	USB 2.0 Type A x2 (direct connection to PC required)
Audio Interface	USB 1.1 compliant integrated speaker and buzzer alarms
Touch Sensor Type	Capacitive touch keys (bare-hand operation only)
Chassis Color	Black (Munsell No. N1.5)
Installation Category	IEC 61010-1 Class I
Storage Temp	-20 deg C to 60 deg C
Operating Humidity	20% to 80% RH (non-condensing)

Process Control Loop Highlight & Interface Integration

The AIP831-111 interfaces directly with CENTUM VP Desktop Type HIS hardware via dedicated dual USB connections to execute simultaneous multi-loop adjustments. Channel-to-channel selection on the operator matrix correlates to target instrument faceplates, driving visual identification directly within the CENTUM VP software environment. Optical indication modes flag active control blocks, while local USB speaker and buzzer circuitry respond to system-level alarm states without depending on external sound card hardware. Signal transmission relies on native USB bus communication, eliminating external power supply requirements while isolating process monitoring operations across discrete control loops.

Frequently Asked Questions

Q: Does the AIP831-111 touch-sensor array support operation while wearing industrial protective gloves?

A: No. The capacitive touch-sensor key matrix is calibrated for bare-hand touch operation only and will not register keypress events through standard industrial safety gloves.

Q: Can the AIP831-111 be routed through an unpowered USB hub or extension dock?

A: No. The keyboard draws up to 1 A at 5 VDC over the USB interface and must connect directly to the root USB Type A ports of the HIS workstation host PC to maintain electrical compliance and stable audio alarm execution.

Q: What software package dependency is required for full key mapping and audio notification functionality?

A: Operation requires the CENTUM VP software suite (VP6H1140 or LHS1140) installed on the host HIS PC to bind the faceplate highlight functions and custom audio alarm triggers to the key matrix.

Field Installation Guidelines

Mount the AIP831-111 on a flat desktop surface or secure it using a standard VESA mounting bracket. Ensure the chosen VESA bracket assembly and mounting surface are structurally rated to withstand a static mechanical load of at least 10 kg. Route both USB cables directly to the primary host PC ports, avoiding intermediate extension leads to prevent voltage drop below the 4.75 VDC threshold. Maintain a minimum ambient operating boundary between 5 deg C and 40 deg C with relative humidity below 80% non-condensing. Ensure chassis grounding aligns with IEC 61010-1 Class I protective earth standards.
