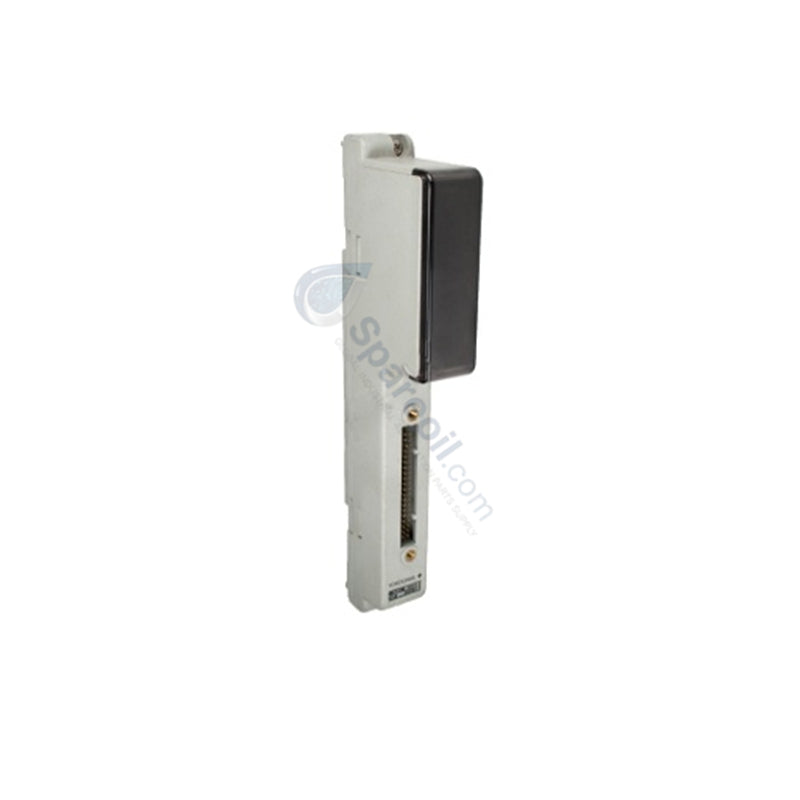

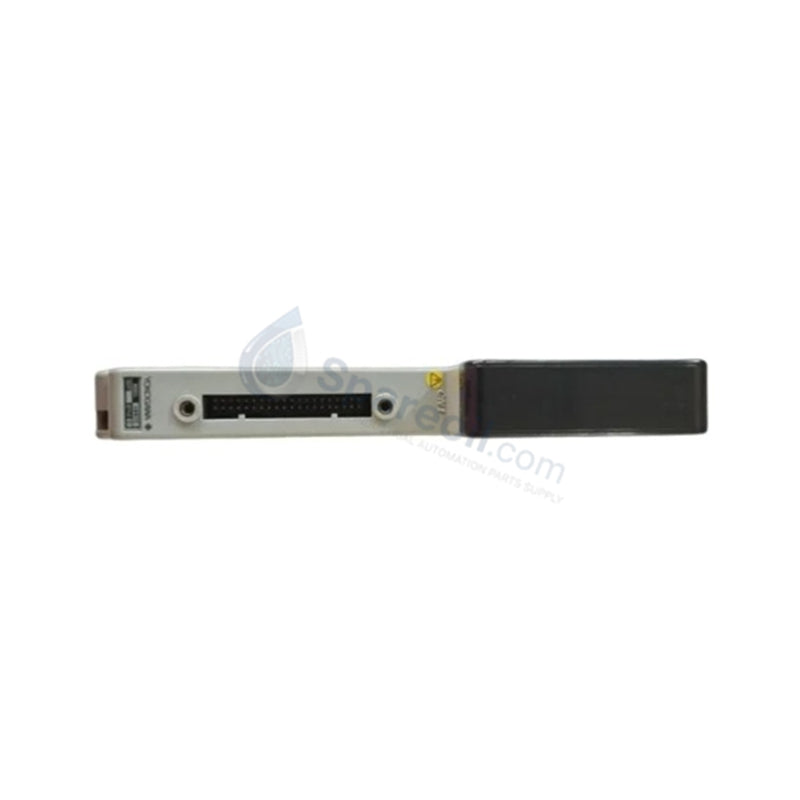

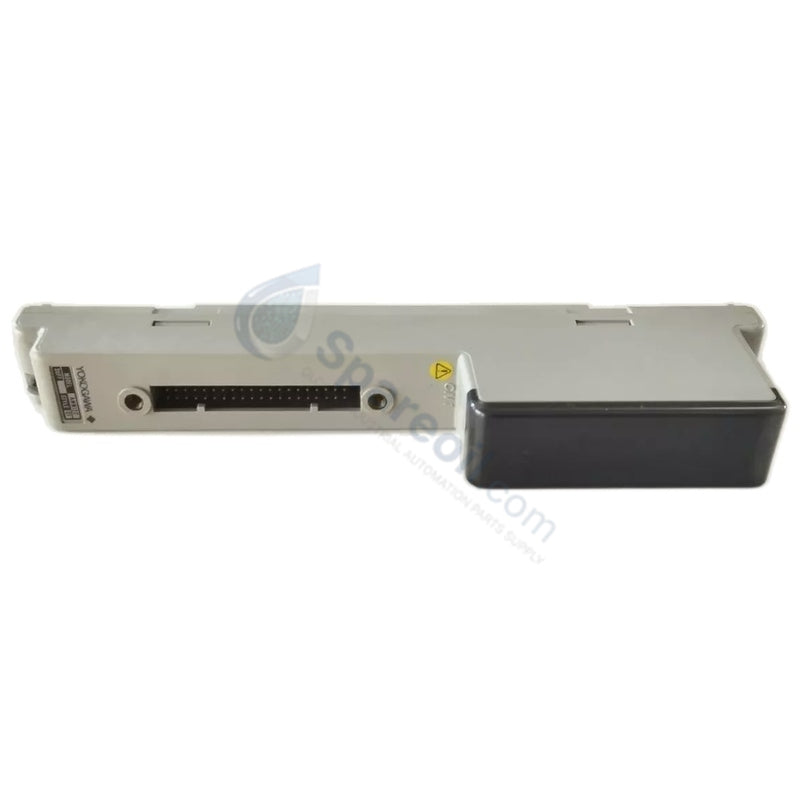

Yokogawa AMM12C/ZCT CENTUM Remote I/O Module

The Yokogawa AMM12C/ZCT, also cataloged as the AMM12C Voltage Input Multiplexer Module, operates as a dedicated hardware component for analog voltage signal routing and multiplexing within Yokogawa CENTUM Remote I/O platforms.

Hardware Specifications

Parameter Specification
Model AMM12C/ZCT
Brand Yokogawa
Origin Japan
Weight 0.3 kg
Dimensions Standard CENTUM rack/wall mount footprint
Operating Temp 0 deg C to 60 deg C
Power Consumption Standard backplane power allocation
Channel Density 16 voltage input channels
Signal Interface M4 screw terminals for I/O signal, power, and ground
Shield Connection M3 screw terminal
Connection Cable KS2 (CN1, CN2)
Pneumatic Interface Rc 3/8 female screw x 2 (air inlet hole)
Redundancy Architecture Dual-redundant configuration support
Mounting Format Horizontal rack or wall mounting

Channel-to-Channel Isolation and Differential Voltage Processing

The AMM12C/ZCT voltage input multiplexer sequences up to 16 differential analog inputs across a shared sampling bus inside the CENTUM DCS node. Galvanic channel-to-channel isolation suppresses common-mode noise and prevents ground loops between remote sensors and host processing units. Onboard multiplexing logic cycles through field inputs while maintaining precise signal conditioning and noise filtering before transferring conversion data over the internal system backplane.

Frequently Asked Questions

Q: How are cable shields properly terminated on the AMM12C/ZCT terminal block?

A: Fasten signal cable drain wires directly to the dedicated M3 shield ground screw terminal. Maintain single-point grounding at the cabinet frame to prevent circulating ground loops across field lines.

Q: Can the module operate in a dual-redundant configuration without interrupting active channel scans?

A: Yes, dual-redundant pairing allows parallel signal tracking over dual KS2 interface cables (CN1, CN2). If one communication channel or module fails, the secondary hardware path maintains uninterrupted input scanning to the DCS processor.

Field Installation Guidelines

Mount the unit horizontally on a standard equipment rack or flat enclosure wall. Secure all mechanical chassis fasteners and ensure the air inlet female connectors (Rc 3/8 female thread) remain clear of obstructions to facilitate proper cabinet airflow.

Route I/O signals, system power, and protective earth wires to their corresponding M4 screw terminals. Torque connections according to standard field terminal specifications. Plug KS2 interface cables into ports CN1 and CN2, using cable tie anchors to reduce mechanical strain on the board connectors.
