AMM52 S4 YOKOGAWA Analog Input Module

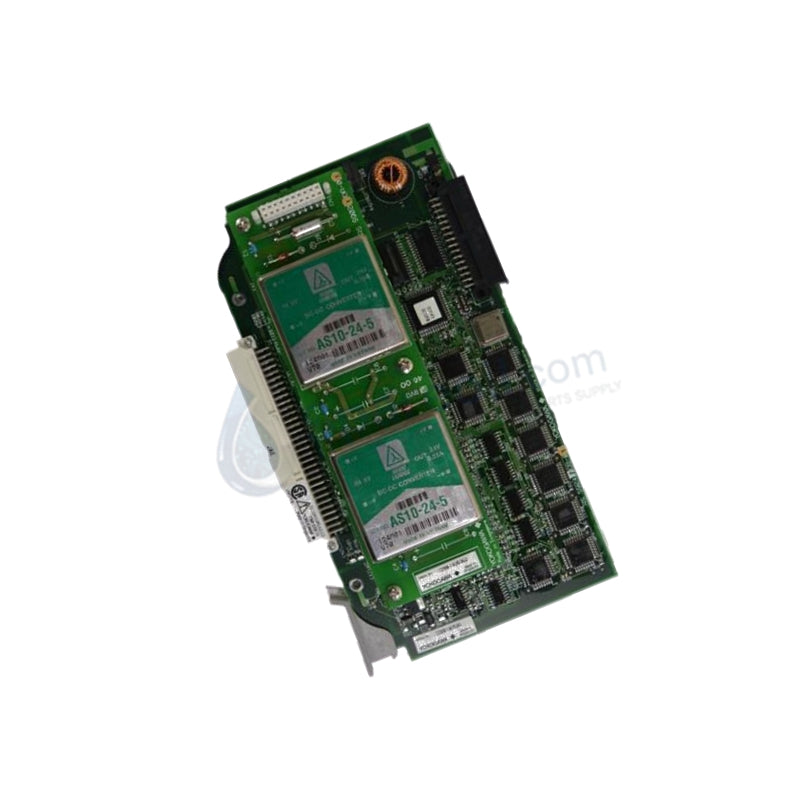

YOKOGAWA AMM52 S4 CENTUM VP 32-Channel Analog Input Module

YOKOGAWA AMM52 S4 CENTUM VP 32-Channel Analog Input Module

Availability: 99 left in stock

YOKOGAWA AMM52 S4 Analog Input Module The YOKOGAWA AMM52 S4, also cataloged as the AMM52 Analog Input Module, operates as...

SKU: AMM52 S4

Manufacturer: Yokogawa
Product No.: AMM52 S4
Product Type: Analog Input Modules
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 2200g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

YOKOGAWA AMM52 S4 Analog Input Module

The YOKOGAWA AMM52 S4, also cataloged as the AMM52 Analog Input Module, operates as a dedicated hardware component for 32-channel signal acquisition and digitization within CENTUM VP control systems.

Hardware Specifications

Parameter	Specification
Model	AMM52 S4
Brand	YOKOGAWA
Origin	Japan
Weight	2.2 kg
Dimensions	482.6 mm x 132.5 mm x 3U
Operating Temp	0 deg C to 50 deg C
Power Consumption	0.6 A (at 24 VDC)
Channel Density	32 Channels
Resolution	16-bit

DCS Process Control Integration

The AMM52 S4 implements 4-20 mA HART loop protocol compatibility to facilitate intelligent device diagnostics alongside primary process variable acquisition. Each channel maintains channel-to-channel isolation to suppress ground loops and electromagnetic interference inherent in long-distance field cabling. Cold junction compensation (CJC) is provided for thermocouple inputs, ensuring precise temperature measurement within the specified accuracy window. The module architecture supports integration into Vnet/IP field control stations, delivering digitized process data for deterministic execution within the controller environment.

Frequently Asked Questions

Q: Does the AMM52 S4 support field-side power supply for 2-wire transmitters?

A: The module architecture requires external loop power for 2-wire transmitters, as the channel interface is primarily designed for signal measurement and galvanic isolation rather than high-current loop excitation.

Q: How does the module execute cold junction compensation (CJC) for thermocouples?

A: CJC is managed via a dedicated onboard thermal sensing element located at the terminal board interface, allowing the module firmware to apply software-based offset correction to the raw thermocouple millivolt input.

Q: Is the 100 ms update cycle configurable per channel?

A: No, the 100 ms update cycle is a fixed scanning parameter for the module's internal A/D converter sweep across all 32 channels.

Field Installation Guidelines

Confirm the module revision is compatible with the existing FIO node backplane before physical insertion.
Verify that all field signal shields are terminated to the cabinet ground bus bar to maintain the integrity of the channel-to-channel isolation.
Ensure the module is seated fully into the backplane connector; verify the locking mechanism is engaged to prevent vibration-induced intermittent connections.
When wiring thermocouple inputs, minimize thermal gradients across the terminal block to ensure CJC accuracy.
Check that the cabinet-level 24 VDC supply rail is within limits before applying power to the FIO subsystem.
