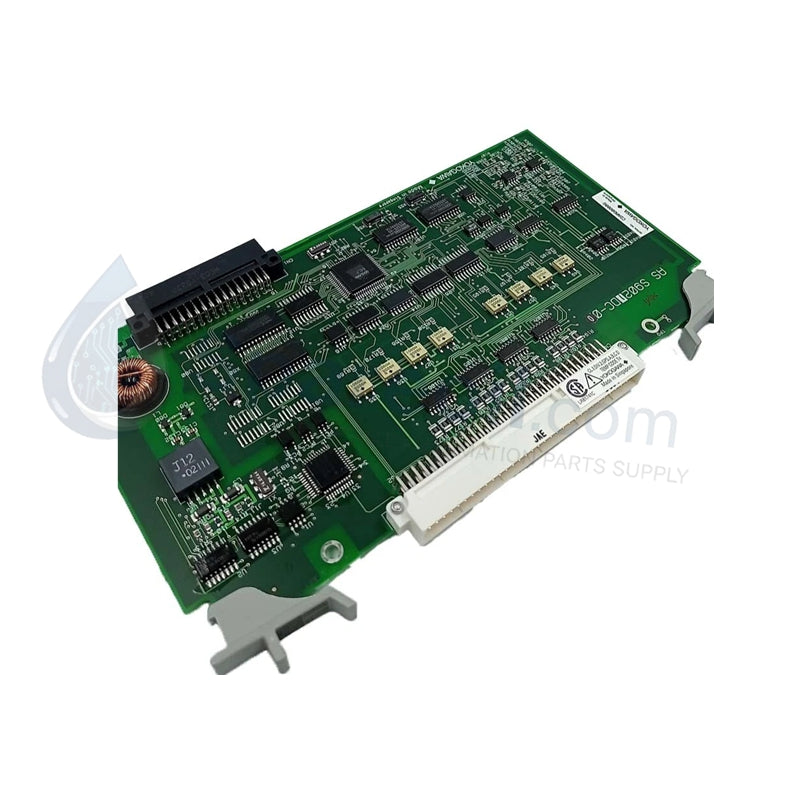

Yokogawa AMM52 High-Density Analog Input Module

Configured for high-density signal acquisition in CENTUM VP and CS 3000 systems, the Yokogawa AMM52-S4 (AMM52 Analog Input Module) provides direct physical and electrical execution for 32 isolated 4-20 mA DC channels.

Hardware Specifications

Parameter Specification
Model AMM52-S4
Brand Yokogawa
Origin Japan
Weight 0.35 kg
Dimensions 2.2 cm x 12.4 cm x 12.6 cm
Operating Temp 0 to +60 deg C
Power Consumption 500 mA at 5 VDC (System Logic)
Channels 32 Isolated Inputs
Accuracy +/- 0.1 percent of full scale
Isolation 500 VAC (field to logic)

Process Control and DCS Instrumentation Integrity

The AMM52-S4 module employs high-density multiplexing to interface directly with the FIO subsystem, ensuring deterministic performance within Vnet/IP control architectures. Each of the 32 channels features individual galvanic isolation to mitigate ground loop interference and suppress common-mode noise. The architecture maintains a nominal input resistance of 250 Ohm, optimized for standard 4-20 mA loop protocols. By minimizing signal path impedance and employing high-resolution A/D conversion, the module ensures that critical process variables are digitized with consistency, maintaining signal integrity across the entire scan cycle.

Frequently Asked Questions

Q: Does the AMM52-S4 support backward compatibility with older Style S2/S3 hardware versions?

A: Yes, the AMM52-S4 is engineered for backward compatibility within existing FIO node configurations. However, verify the current firmware version of the Field Control Station (FCS) to ensure full recognition of the 32-channel density mapping.

Q: What are the primary thermal considerations for installing this high-density module?

A: Due to the 32-channel density, ensure proper clearance in the I/O cabinet to facilitate convective cooling. Maintain an ambient cabinet temperature within the specified range of 0 deg C to +60 deg C to prevent drift in conversion accuracy.

Field Installation Guidelines

  1. Power down the FIO node or confirm the specific slot supports hot-swapping before insertion.
  2. Align the module with the backplane connector and depress the locking tabs until an audible click confirms positive mechanical engagement.
  3. Terminate 4-20 mA field signals using shielded twisted-pair cabling to minimize electromagnetic interference (EMI) pickup.
  4. Ground cable shields at the designated cabinet grounding rail; do not daisy-chain shields between independent analog loops to prevent cross-talk.
  5. Verify terminal tightness for all field connections to ensure stable 250 Ohm loop resistance and prevent intermittent open-circuit faults.
