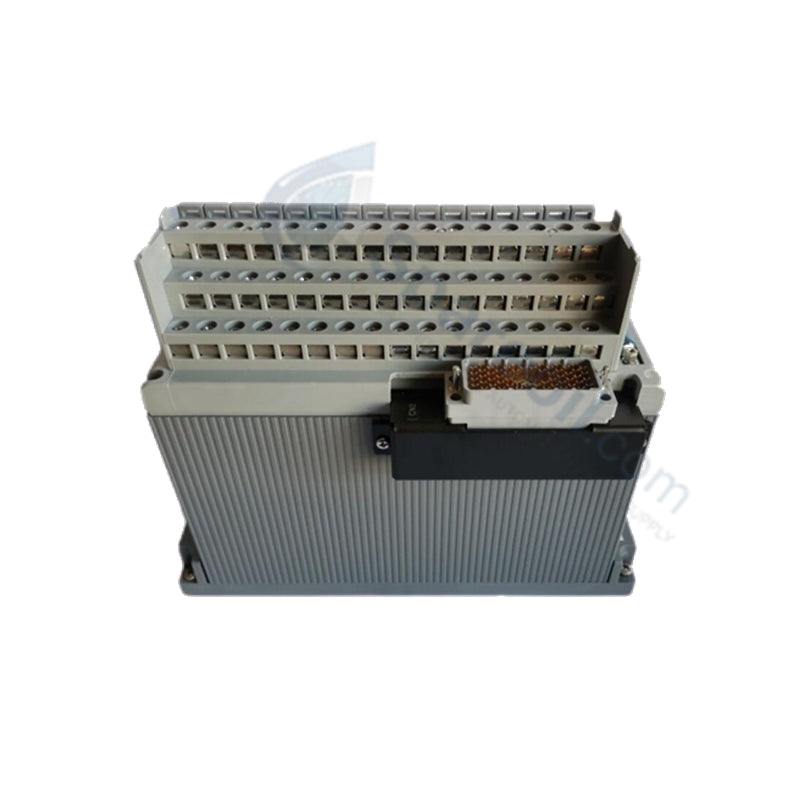

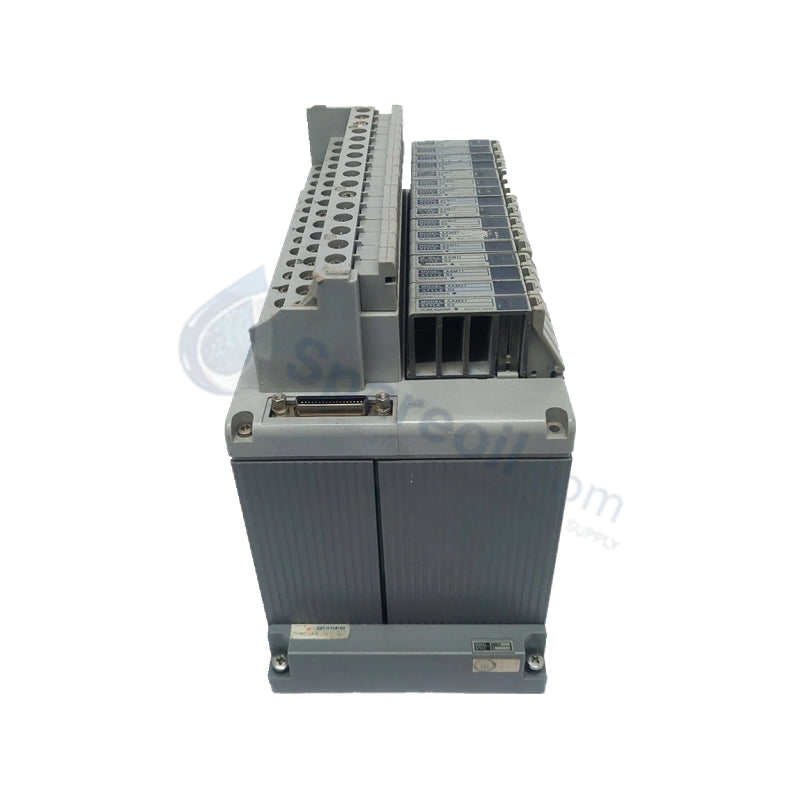

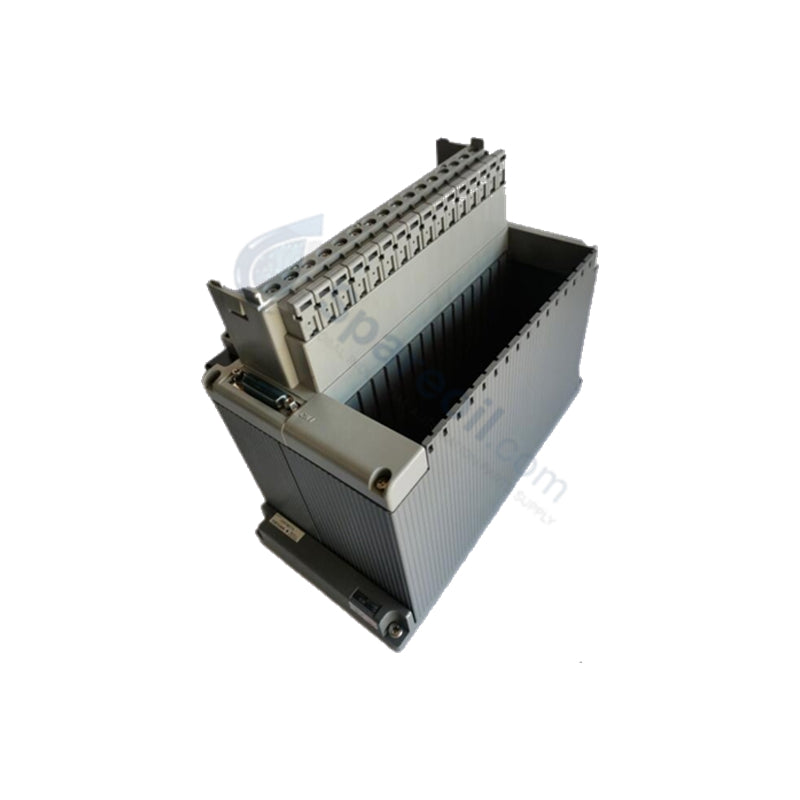

Yokogawa AMN11 Analog I/O Nest

Configured for high-speed signal distribution in CENTUM CS 1000 and CS 3000 systems, the Yokogawa AMN11 (AMN11 Analog I/O Nest) provides direct physical/electrical execution of module housing, backplane connectivity, and power distribution for analog I/O cards.

Hardware Specifications

Parameter	Specification
Model	AMN11
Brand	Yokogawa
Origin	USA
Weight	1.5 - 1.9 kg
Dimensions	125 x 130 x 248 mm
Operating Temp	Consult host FCS/Node specifications
Power Consumption	5.0 V DC (sourced from interface unit)
System Compatibility	CENTUM CS 1000 / 3000
Signal Capacity	Voltage, current, and RTD inputs
Mounting	I/O Expansion Rack / FCS

Process Control and Signal Marshalling Connectivity

The AMN11 nest acts as the structural and electrical backbone for analog signal marshalling within the CENTUM CS architecture. It enforces channel-to-channel isolation by maintaining strict physical separation and impedance control for the I/O signals processed by the installed modules. The nest design ensures consistent cold junction compensation (CJC) pathing when hosting thermocouple-capable modules, which is vital for maintaining temperature measurement accuracy. By providing a stable low-voltage DC bus, the AMN11 facilitates the integration of diverse signals—ranging from 4-20 mA HART loops to resistance temperature detector (RTD) inputs—without compromising the integrity of the host control logic or introducing ground-induced noise.

Frequently Asked Questions

Q: Is the AMN11 nest compatible with CENTUM VP or ProSafe-RS control stations?

A: No, the AMN11 is specifically engineered for the CENTUM CS 1000 and 3000 series platforms. It lacks the backplane pin-out configuration required for compatibility with modern CENTUM VP or ProSafe-RS hardware.

Q: Does the nest provide active conditioning for the analog signals hosted within it?

A: No, the AMN11 is a passive housing and distribution interface. All signal conditioning, filtering, and scaling functions are performed by the individual analog input/output modules seated within the nest, not by the nest itself.

Field Installation Guidelines

Structural Mounting: Secure the AMN11 nest into the designated Field Control Station (FCS) rack or I/O expansion unit. Ensure the mounting bolts are tightened to prevent chassis vibration, which could cause intermittent contact at the backplane interface.
Backplane Interface: When inserting analog modules into the nest, verify that the guide rails are aligned. Press the module firmly until the interface connector seats completely into the nest backplane to establish a secure power and data link.
Grounding: Connect the nest frame to the cabinet ground bus bar. A low-impedance ground path is required to maintain the effectiveness of the module-level EMI shielding and to protect internal logic circuits from electrostatic discharge (ESD).
Thermal Management: While the AMN11 is designed for efficient heat dissipation, ensure that the surrounding cabinet ventilation is unobstructed. Allow adequate spacing between stacked nests to maintain ambient temperature levels as specified by the host FCS hardware requirements.
