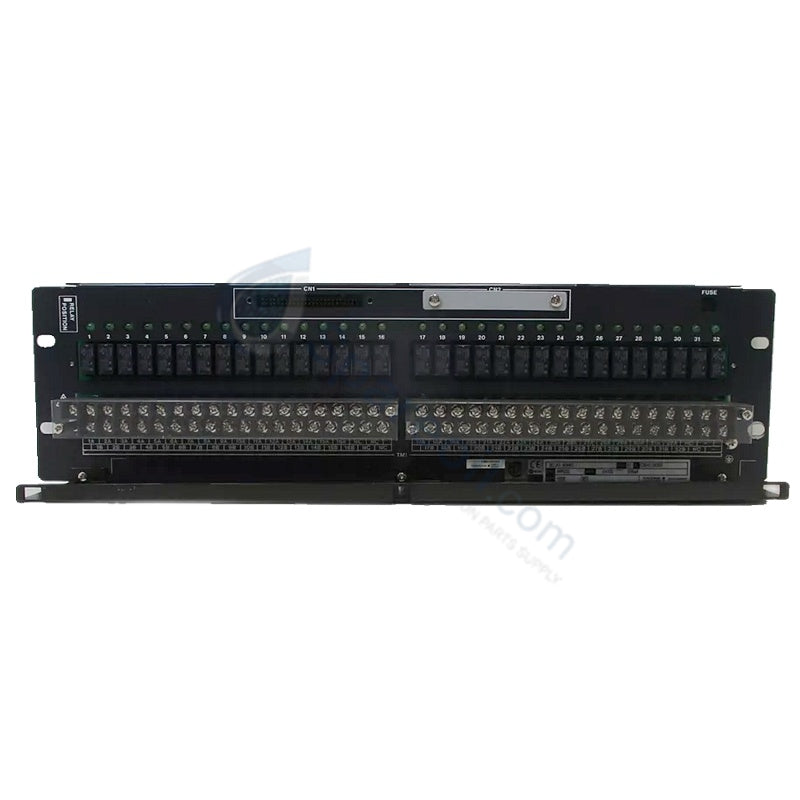

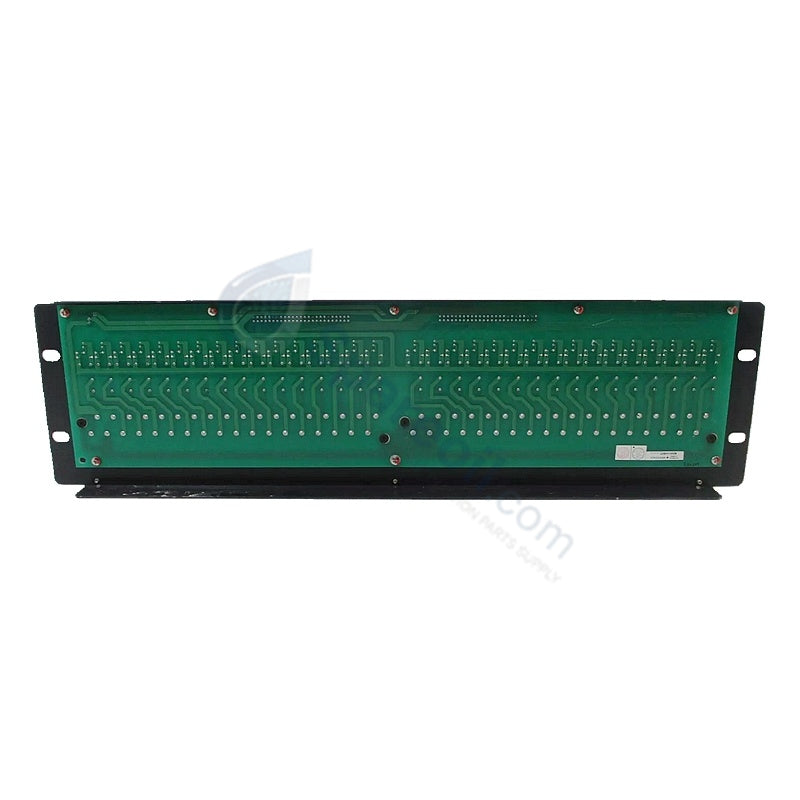

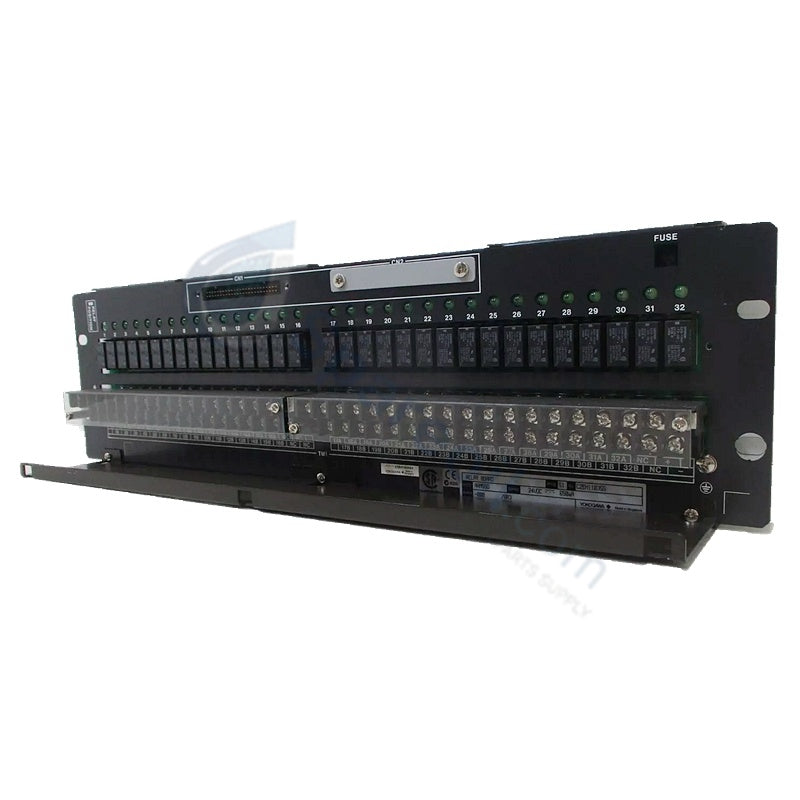

The Yokogawa ARM55D-00, also cataloged as the ARM55D Relay Output Board, operates as a dedicated hardware component for converting controller output signals into dry contact physical switching within Yokogawa CENTUM VP and FIO node platforms. It provides direct electrical driving of inductive solenoid coils, motor contactors, and indicator circuits while isolating internal system logic from field-side electrical surges.
| Parameter | Specification |
|---|---|
| Model | ARM55D-00 |
| Brand | Yokogawa |
| Origin | Japan |
| Weight | 2.2 kg |
| Dimensions | 48.2 cm x 18.4 cm x 13.2 cm |
| Operating Temp | -10 deg C to +55 deg C |
| Power Consumption | 18 W maximum (with all 32 relays fully energized) |
| Operating Voltage | 24 VDC (+/- 10%) |
| Channel Count | 32 discrete relay output points (Form C / SPDT) |
| Contact Rating | 250 VAC / 30 VDC at 5 A per channel |
| Initial Contact Resistance | 50 mohm maximum |
| Insulation Resistance | 10 Mohm minimum at 500 VDC |
| Switching Response Time | 12 ms maximum (energize), 8 ms maximum (de-energize) |
| Mechanical Endurance | 20,000,000 operations minimum |
| Field Wiring Terminals | M4 screw terminal blocks |
| Mounting Format | Standard 19-inch rack mounting chassis |
The ARM55D board incorporates high-integrity galvanic isolation via mechanical relay contacts between field-side load circuits and internal backplane control electronics. This physical air-gap barrier suppresses common-mode noise and prevents inductive switching spikes from coupling into adjacent low-level 4-20 mA HART loop protocol lines or sensitive analog cables running within the same marshalling cabinet. Channel isolation maintains system ground separation, preventing field ground loops from compromising controller bus stability.
Q: What power capacity must technicians allow for when sizing the 24 VDC field supply for the ARM55D?
A: Engineers must size the auxiliary 24 VDC power source to deliver at least 18 W (or 750 mA) continuously to cover the coil load when all 32 output channels energize simultaneously.
Q: Can maintenance crews perform channel troubleshooting without external measurement equipment?
A: Yes, maintenance personnel can verify state changes instantly because 32 channel-dedicated LED status indicators on the board faceplate display the ON/OFF actuation state of each individual relay coil.
Q: What steps protect the relay contacts when switching highly inductive loads such as solenoid valves?
A: Technicians must wire external snubber networks or flyback diodes directly across the inductive field load to absorb voltage spikes and prevent contact welding or erosion.
Technicians must mount the ARM55D chassis securely into a standard 19-inch rack frame using four dedicated mounting screws. Install the board inside a clean control enclosure that maintains ambient temperatures between -10 deg C and +55 deg C with non-condensing relative humidity below 85%. Strip field conductors to length and secure them under the M4 terminal screws, tightening each screw firmly to establish a low-resistance physical contact. Route external high-current AC or DC load wiring through separate wire troughs, keeping them apart from low-voltage analog cables and communication buses. Connect the main ground lug on the chassis to the cabinet earthing bar using a heavy copper braid strap to ensure continuous shielding against electromagnetic field interference.
