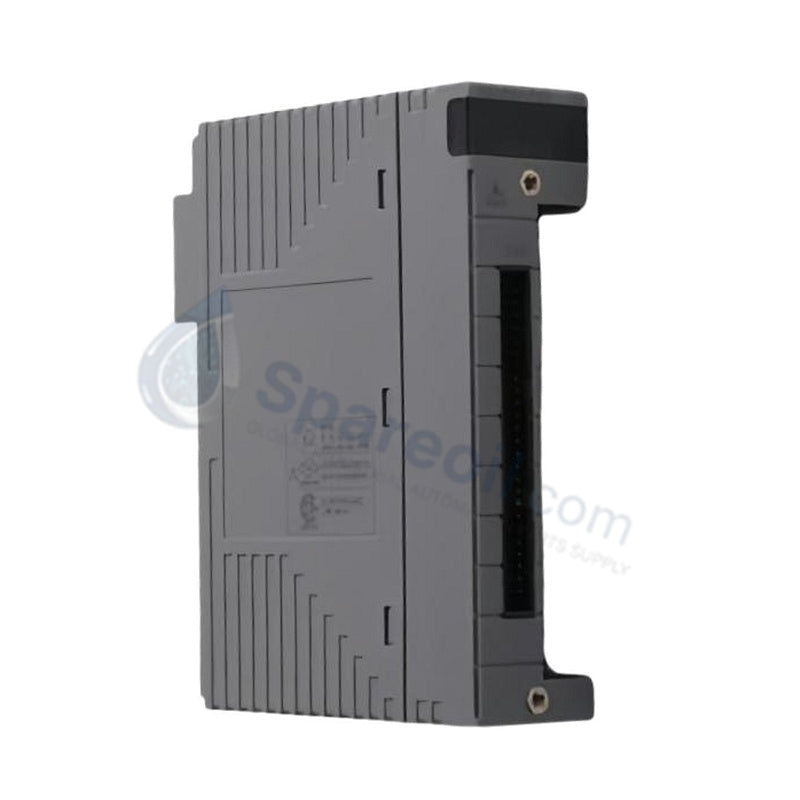

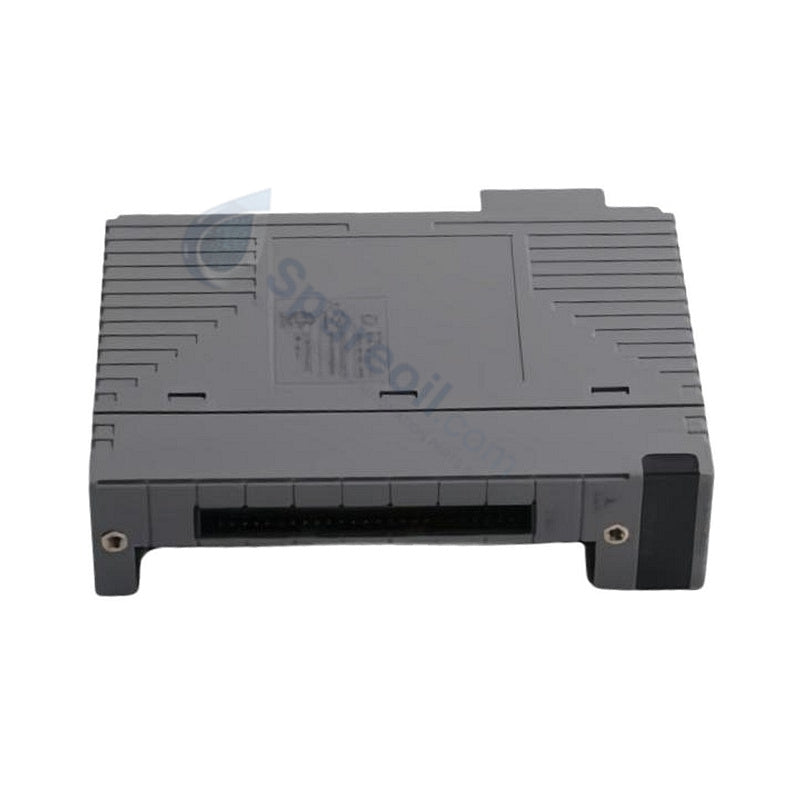

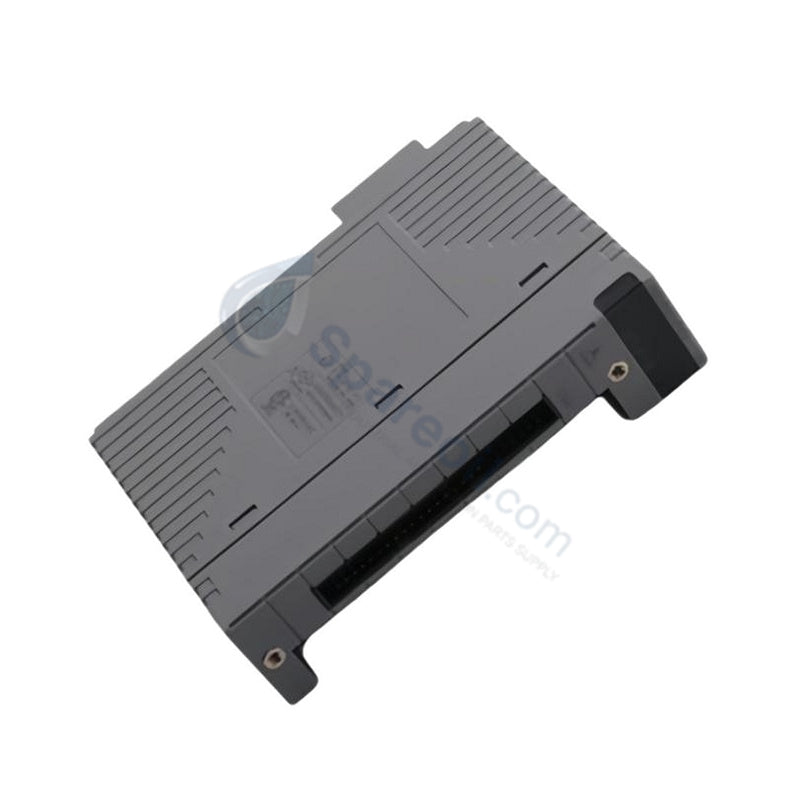

Yokogawa ASD533-S00 Centum VP Digital Output Module

The Yokogawa ASD533-S00, also cataloged as the ASD533 Digital Output Module, operates as a dedicated hardware component for discrete control signal execution within Centum CS / Centum VP platforms.

Layout Configuration Selection: Layout 1

Hardware Specifications

Parameter Specification
Model ASD533-S00
Brand Yokogawa Electric Corporation
Origin Japan
Weight 0.5 kg
Dimensions 3.3 cm x 13.5 cm x 14.7 cm (1.3 in x 5.3 in x 5.8 in)
Operating Temp -20 to +70 deg C
Power Consumption Determined by connected I/O loading thresholds
Number of Output Channels 32 channels
Rated Output Voltage 24 VDC
Operating Voltage Range 19.2 to 28.8 VDC
Maximum Load Current 100 mA per channel
Response Time 10 ms or less per channel
Isolation Voltage 1500 VDC (Channel-to-channel and channel-to-system)
Protection Circuits Overcurrent, short-circuit, surge suppression
Humidity Range 5 to 95% RH (non-condensing)

Process Control & DCS Instrumentation Technical Attributes

This Field I/O (FIO) subsystem component delivers stable ON/OFF signals to solenoids, relays, and indicator lamps via an isolated solid-state circuit matrix. The module features channel-to-channel and channel-to-system galvanic isolation barriers rated up to 1500 VDC, preventing field-side voltage transients from disrupting internal system bus communications. Additionally, integrated diagnostic electronics perform continuous self-test routines and drive status LED indicators, while the internal architecture maintains high noise immunity against electromagnetic interference in dense control panels.

Frequently Asked Questions

Q: Does this specific module configuration support direct installation in hazardous areas?

A: No. The S00 suffix designates the general-purpose, non-explosion-proof variant. For execution inside intrinsically safe environments, you must deploy the specialized SD3S0 variant or implement external isolation barriers.

Q: How does the hardware respond during short-circuit or overcurrent conditions on a field loop?

A: The module activates internal overcurrent and short-circuit protection circuits to isolate the faulted channel immediately, preserving the operating integrity of the remaining channels and preventing thermal damage.

Field Installation Guidelines

  • Module Placement: Slot the hardware directly into the designated FIO node rack position, ensuring the rear multi-pin connector interfaces cleanly with the active system backplane before securing the assembly fasteners.
  • Wiring Configurations: Route all 24 VDC discrete field load lines through separate wiring tracks, ensuring high-current power lines do not run parallel to low-voltage network cables.
  • Shielding and Grounding: Attach all external field instrument cable shields to a single-point cabinet ground bus bar to eliminate ground loops and minimize electrical noise pickup.
  • Thermal Conditions: Mount the module vertically to allow correct convective airflow through the housing slots, keeping ambient temperatures inside the cabinet between -20 and +70 deg C.
