ASI533-S00 S1 Yokogawa Analog Input Module

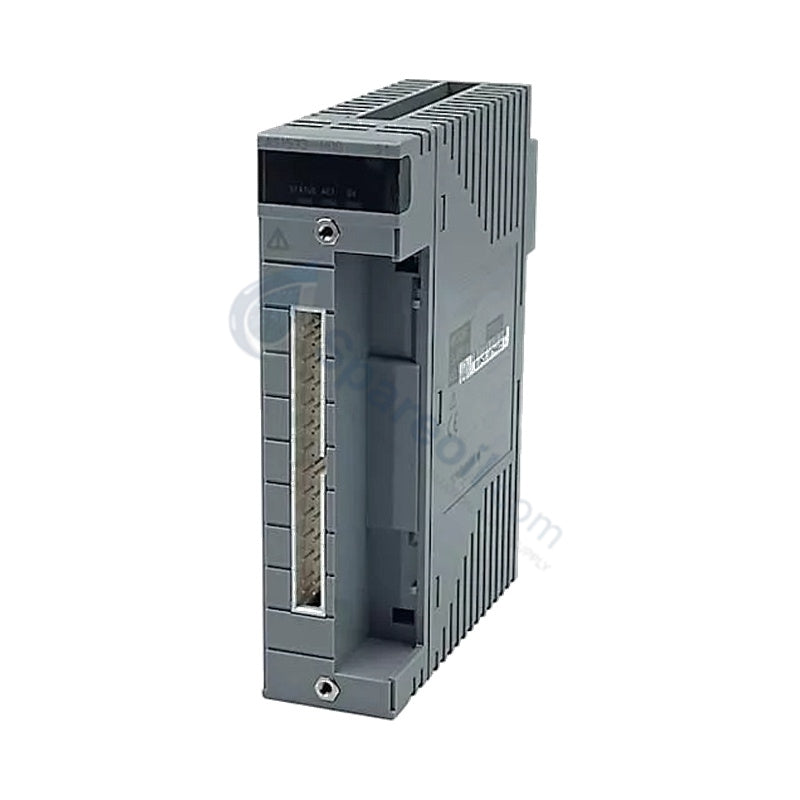

Yokogawa ASI533-S00 S1 CENTUM VP Analog Input Module 32 Channel

Yokogawa ASI533-S00 S1 CENTUM VP Analog Input Module 32 Channel

Availability: 20 left in stock

Yokogawa ASI533-S00 S1 CENTUM VP Analog Input Module The Yokogawa ASI533-S00 S1, also cataloged as the ASI533 Analog Input Module,...

SKU: ASI533-S00 S1

Manufacturer: Yokogawa
Product No.: ASI533-S00 S1
Product Type: Analog Input Modules
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 450g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Yokogawa ASI533-S00 S1 CENTUM VP Analog Input Module

The Yokogawa ASI533-S00 S1, also cataloged as the ASI533 Analog Input Module, operates as a dedicated hardware component for high-density analog signal acquisition within Yokogawa CENTUM VP platforms.

Suffix Breakdown & Model Matrix

Suffix Code	Option	Description
ASI533	Base Model	High-density 32-channel analog input module
-S00	Standard Variant	Standard functional hardware specification
S1	Option Code	Single/standard terminal interface design style

Hardware Specifications

Parameter	Specification
Model	ASI533-S00 S1
Brand	Yokogawa
Origin	Japan
Weight	0.45 kg to 0.5 kg
Dimensions	150 mm x 25 mm x 100 mm
Operating Temp	0 deg C to 60 deg C
Power Consumption	5 W maximum (supplied via system backplane)
System Compatibility	Yokogawa CENTUM VP DCS platform
Input Density	32 isolated analog input channels
Supported Signal Ranges	+/-10 V DC, 4-20 mA DC, thermocouple ranges
Signal Conversion	16-bit A/D conversion resolution
Measurement Accuracy	+/-0.1% of full scale
Scan Cycle	Configurable, typically 100 ms per channel
Galvanic Isolation	Channel-to-channel and channel-to-system isolation
Mounting Format	Field Control Station (FCS) cabinet rack slot

4-20 mA HART Loop Protocol and Channel Isolation

The ASI533-S00 S1 input module routes 32 discrete instrument channels through independent galvanic isolation barriers to protect backplane processing logic from field line surges. Standard 4-20 mA HART loop protocol signals and DC voltage measurements undergo 16-bit analog-to-digital conversion before transmission to the Field Control Station CPU. Integrated cold junction compensation (CJC) algorithms stabilize thermocouple measurement channels against ambient enclosure drift, while onboard continuous self-test diagnostics verify loop continuity and signal health.

Frequently Asked Questions

Q: How does the high-density 32-channel architecture maintain channel isolation during field grounding faults?

A: Each channel incorporates individual galvanic isolation components that isolate signal returns up to system breakdown limits. This prevents ground potential variations on one field circuit from inducing measurement offsets on adjacent channels.

Q: Can the ASI533-S00 S1 module be installed into an active rack node without shutting down the FCS system?

A: The module supports rack slot seating under backplane power, provided field technicians engage the module retention screws completely and adhere to station hot-swap procedures to avoid transient system alarms.

Field Installation Guidelines

Slide the ASI533-S00 S1 module into its assigned slot in the CENTUM VP FCS rack. Push the assembly inward until the backplane edge connector seats fully, then tighten top and bottom panel screws to secure the chassis against vibration.

Connect incoming field signals using shielded twisted-pair cabling. Terminate drain wires at the main cabinet shield bus using short wire runs to maintain low RF impedance. Route 4-20 mA current cables away from high-voltage AC lines to minimize electromagnetic interference across sensitive measurement loops.
