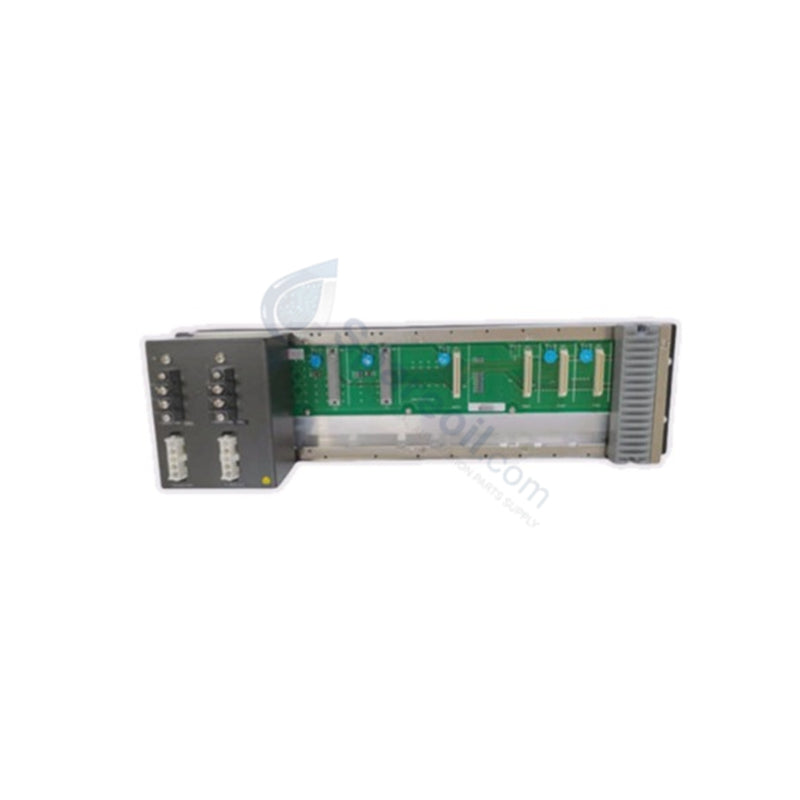

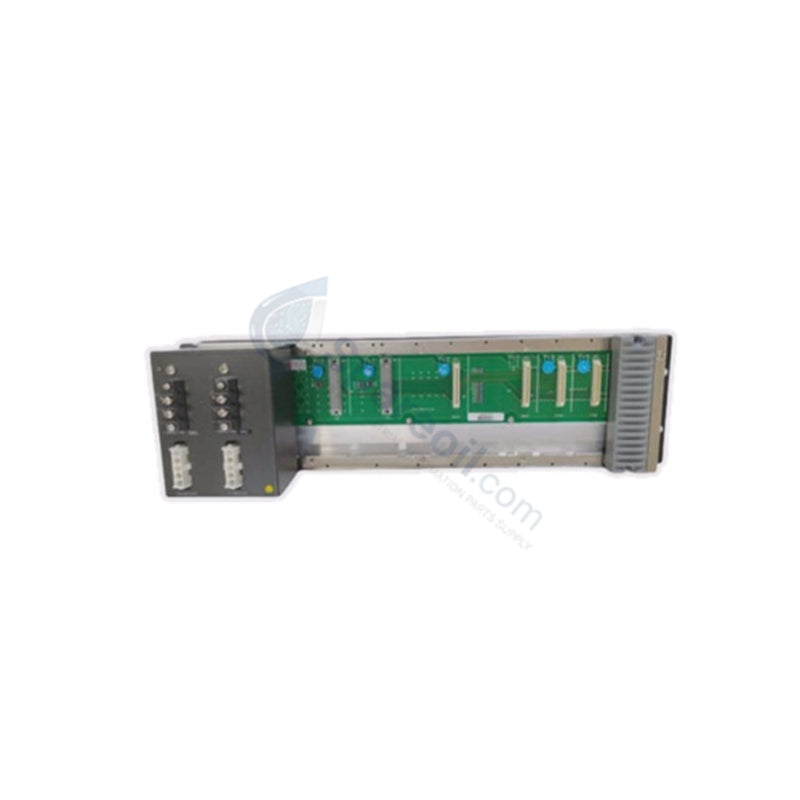

Yokogawa AVR10D-Q22011 Duplexed V Net Router

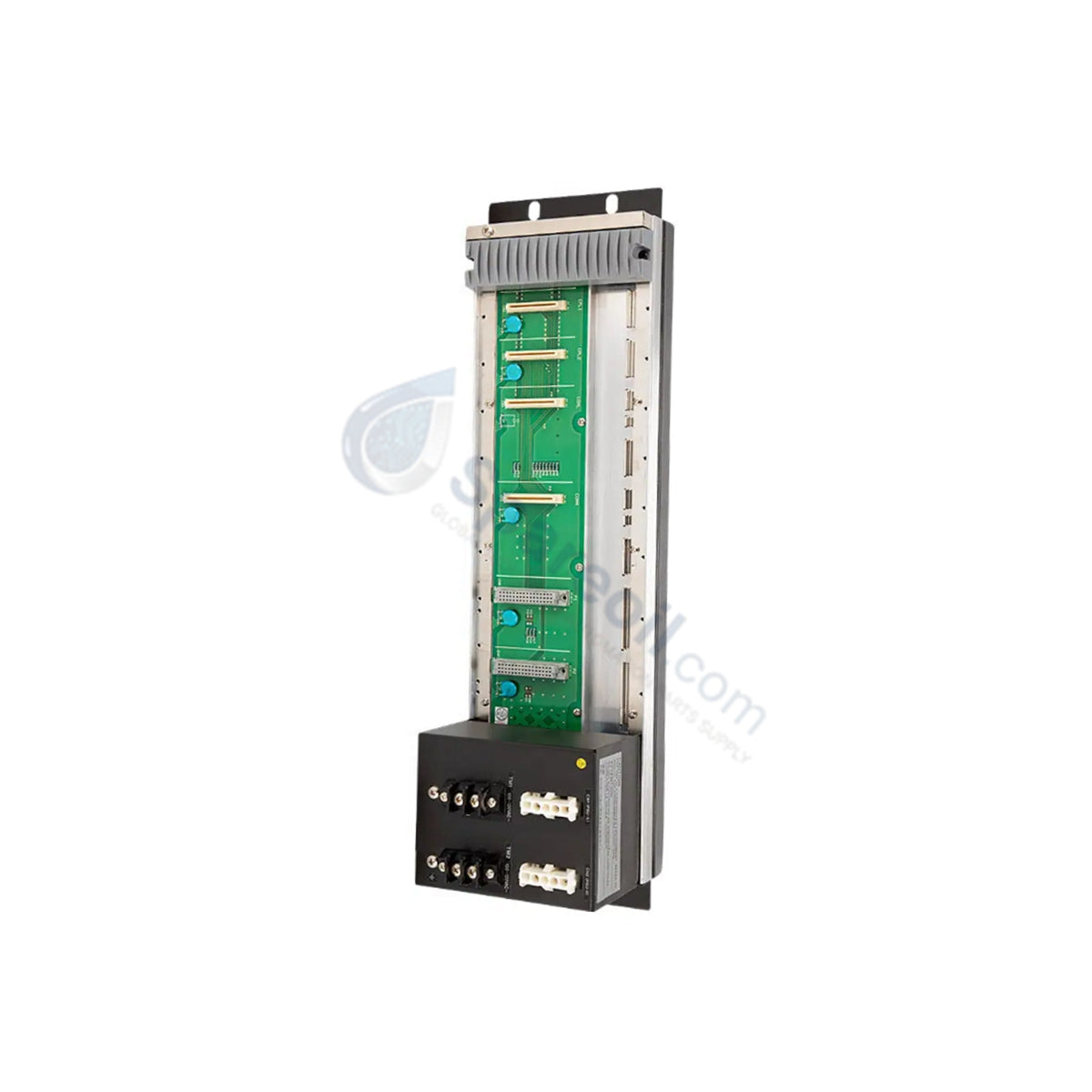

Yokogawa AVR10D-Q22011 CENTUM VP Duplexed V Net Router

Yokogawa AVR10D-Q22011 CENTUM VP Duplexed V Net Router

Availability: 10 left in stock

Yokogawa AVR10D-Q22011 Duplexed V Net Router The Yokogawa AVR10D-Q22011, also cataloged as the AVR10D Duplexed V Net Router, operates as...

SKU: AVR10D-Q22011

Manufacturer: Yokogawa
Product No.: AVR10D-Q22011
Product Type: Network Routers
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 5800g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Yokogawa AVR10D-Q22011 Duplexed V Net Router

The Yokogawa AVR10D-Q22011, also cataloged as the AVR10D Duplexed V Net Router, operates as a dedicated hardware component for multi-network protocol bridging within CENTUM VP, CENTUM CS 3000, CENTUM CS, and CENTUM CS 1000 systems. Mounted directly in standard 19-inch equipment racks, the module establishes continuous data routing between high-speed Vnet/IP networks and legacy coaxial V net or VL net domains. The hardware executes dual-redundant frame conversion to link Human Interface Stations (HIS) with legacy field control architecture without interrupting process bus communication.

Hardware Specifications

Parameter	Specification
Model	AVR10D-Q22011
Brand	Yokogawa
Origin	Singapore
Weight	5.8 kg
Dimensions	178 mm x 127 mm x 109 mm
Operating Temp	0 to +55 deg C
Power Consumption	110 VA (220-240 V AC operation)
Vnet/IP Interface	100BASE-TX, 100 Mbps full duplex, RJ45 (CAT5e or higher, max 100 m)
V net / VL net Interface	10 Mbps coaxial cable via T-junction BNC connectors
Power Supply	220-240 V AC (dual-line or single-line supply)
Grounding	M4 screw terminal dedicated lug
Mounting	19-inch rack mount format (4 x M5 screws with insulation bushes)
Redundancy	Dual-redundant communication buses and dual power supply support
Storage Temperature	-20 to +70 deg C
Operating Humidity	10% to 90% RH (non-condensing)

4-20 mA HART Loop Protocol and Channel Isolation

The AVR10D-Q22011 acts as a deterministic communication bridge that segregates field-level loop traffic from supervisory control layers. While field control units handle direct 4-20 mA HART loop protocol conversions and analog channel isolation at the node level, the AVR10D router packages these sub-system data packets across its redundant backplane. Internal channel-to-channel isolation hardware and shielded network terminations protect high-speed Ethernet routing planes from ground voltage offsets and noise spikes originating on legacy coaxial V net segments, preserving real-time HART diagnostic pass-through across multi-project system boundaries.

Frequently Asked Questions

Q: How does the duplexed architecture respond when one coaxial V net segment suffers a cable break?

A: The router continuously monitors bus carrier signals and instantly transfers data transmission to the secondary redundant coaxial path without dropping active network frames or tripping system alarms.

Q: What insulation hardware is required when securing the unit inside a standard 19-inch cabinet rack?

A: Engineers must install the factory-supplied insulation bushes along with the four M5 mounting screws to isolate the router chassis from frame ground currents and preserve cabinet earth integrity.

Q: Can the 100BASE-TX Vnet/IP port connect directly to a standard commercial Ethernet switch?

A: Connection requires standard CAT5e or better shielded twisted-pair cabling up to 100 m, routed through industrial-grade switches qualified for CENTUM VP deterministic bus communication to prevent packet jitter.

Field Installation Guidelines

When installing the Yokogawa AVR10D-Q22011 router within process control enclosures, execute the following procedures:

Position the 5.8 kg assembly into a standard 19-inch equipment rack and secure it using four M5 screws fitted with the mandatory insulation bushes.
Connect the earth ground lead directly from the M4 chassis ground terminal to the main cabinet ground bar using a short, low-impedance copper strap.
Attach the V net / VL net coaxial cables to the BNC ports using proper T-junction connectors, ensuring that unused cable ends receive standard 50 Ohm or 75 Ohm coaxial terminators as dictated by net topology.
Insert shielded CAT5e cables into the 100BASE-TX RJ45 ports for the Vnet/IP link, maintaining a minimum physical separation of 300 mm from high-voltage power conduits.
Apply 220-240 V AC operating power to both primary and secondary power supply terminal blocks to enable full dual-line power supply redundancy.
