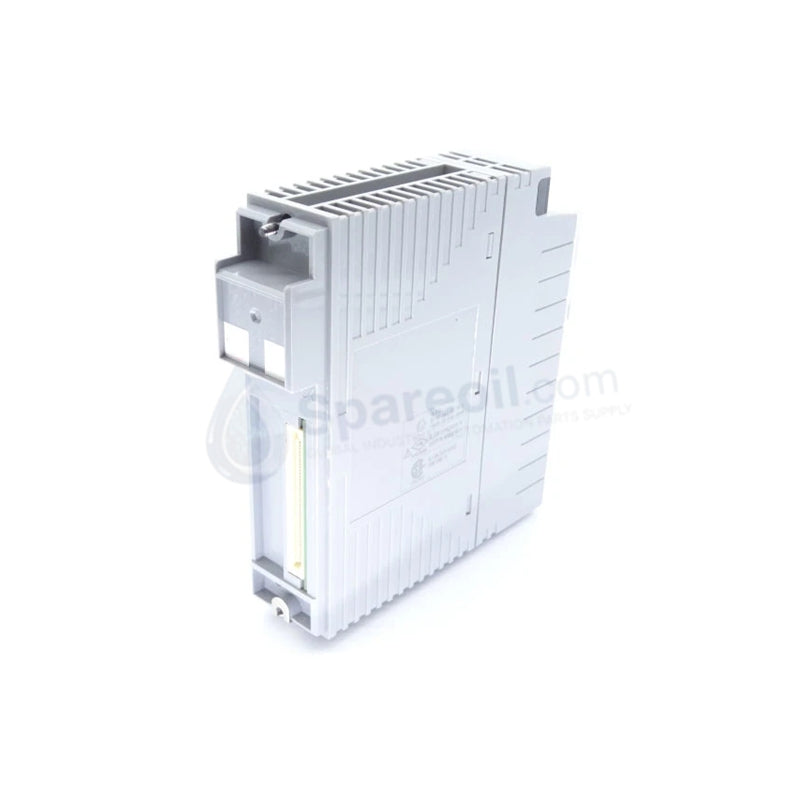

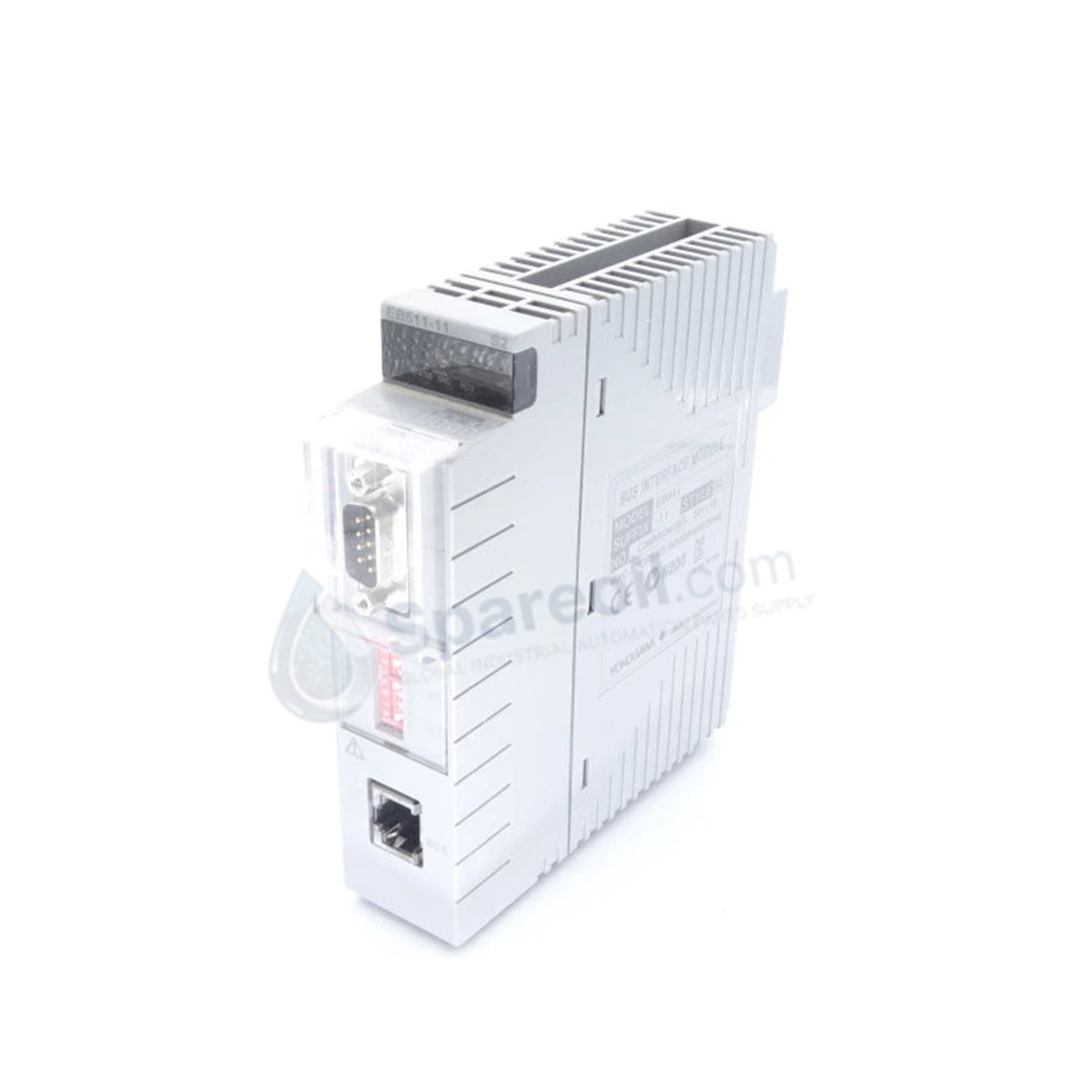

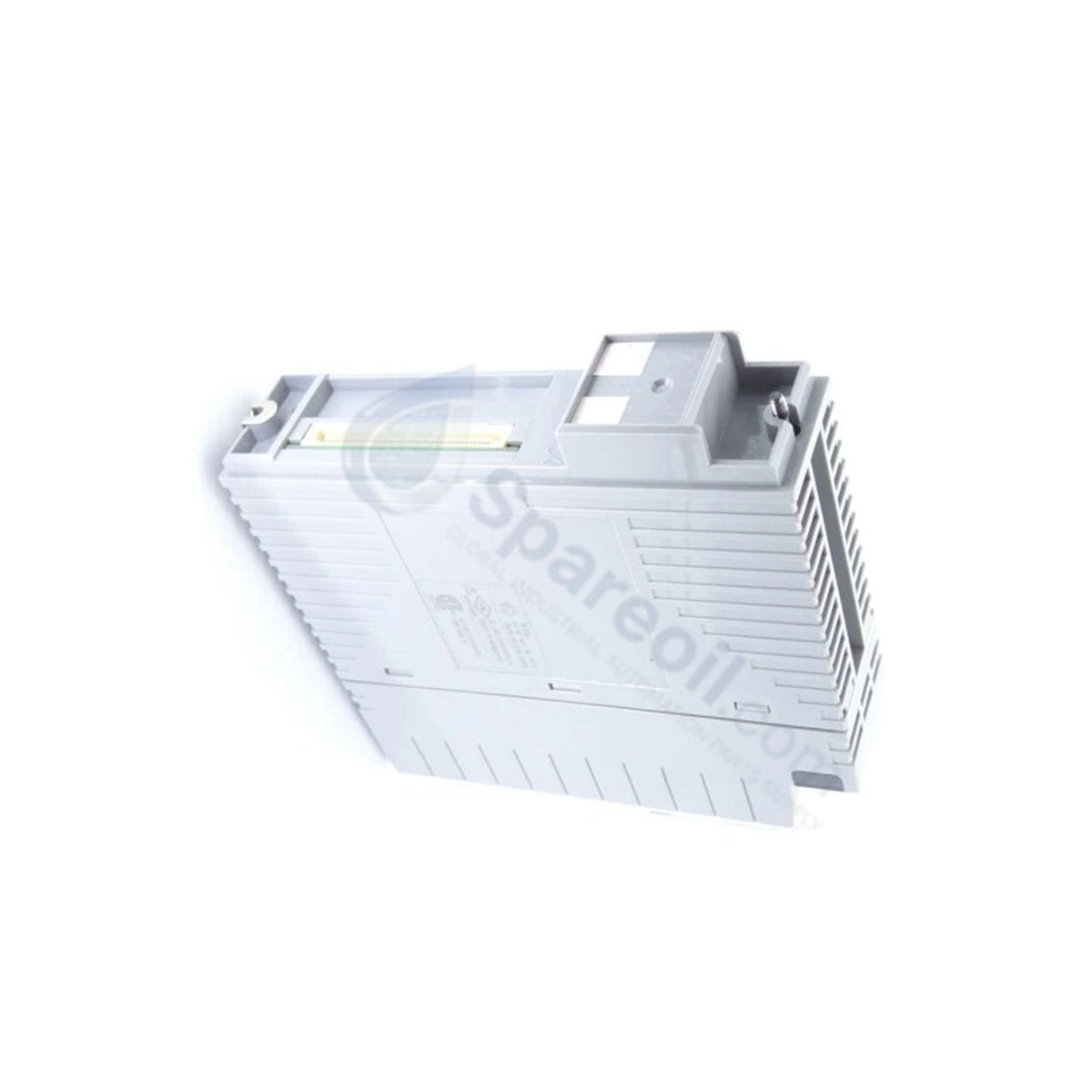

Yokogawa EB511-11 CENTUM Bus Interface Module

The Yokogawa EB511-11, also cataloged as the EB511 Bus Interface Module, operates as a dedicated hardware component for ER Bus communication within CENTUM VP, CENTUM CS, and CS3000 distributed control systems. Engineers mount this module directly into odd-numbered slots of ANB10 or AFF50 Field Control Units to process deterministic data exchanges between controllers and field instrumentation. Onboard coaxial transceivers drive 10 Mbps frame transmissions across 10BASE-2 physical layers while isolating internal system logic from external field transient currents.

Hardware Specifications

Parameter Specification
Model EB511-11
Brand Yokogawa
Origin Japan
Weight 0.3 kg
Dimensions 2.5 x 12.7 x 12.7 cm
Operating Temp 0 to +50 deg C
Power Consumption 0.7 A at 5 VDC via backplane
Transmission Protocol ER Bus (IEEE 802.3 10BASE-2)
Communication Speed 10 Mbps
Max Transmission Distance 185 m per segment (RG-58 coaxial cable)
Connector Type BNC interface
Lifecycle Status Active
HS Code 8537101190

4-20 mA HART Loop Protocol & Channel-to-Channel Isolation

The module manages process instrumentation via integrated 4-20 mA HART loop protocol support and FOUNDATION Fieldbus connectivity. Built-in isolation transformers protect internal system logic by establishing rigorous channel-to-channel isolation against high-voltage surges and common-mode noise. Meanwhile, internal cold junction compensation (CJC) circuits stabilize analog measurements across fluctuating ambient temperatures. Maintenance personnel utilize integrated LED indicators to monitor bus health and verify real-time data flow without interrupting control loops.

Frequently Asked Questions

Q: How do technicians replace the bus interface module without shutting down the control system?

A: The hot-swappable design permits module replacement on active backplanes. Technicians must slide the unit out of its designated odd-numbered slot while ensuring redundant bus paths maintain active communication.

Q: What termination requirements apply to the coaxial cable connected to the BNC port?

A: Installers must terminate both physical ends of the RG-58 coaxial segment with 50-ohm matching resistors to prevent signal reflections and data packet corruption.

Q: Can the module communicate over standard twisted-pair Ethernet instead of coaxial cable?

A: No, the hardware physical layer relies strictly on IEEE 802.3 10BASE-2 specifications utilizing BNC connectors and coaxial transmission lines.

Field Installation Guidelines

  1. Verify that the target enclosure slot corresponds to an odd-numbered position on the ANB10 or AFF50 Field Control Unit backplane.
  2. Slide the module straight into the designated card guides, applying firm, even pressure until the rear multi-pin connector seats fully into the backplane socket.
  3. Secure the module chassis by tightening the top and bottom retaining screws to 0.5 Nm to ensure proper ground continuity.
  4. Attach the 50-ohm RG-58 coaxial cable to the BNC connector, twisting the outer locking ring clockwise until it clicks securely into place.
  5. Route coaxial communication cables away from high-voltage power lines and motor drives, maintaining a minimum physical separation distance of 200 mm.
  6. Power up the control unit and observe the front-panel LED indicators to verify normal bus communication health before placing process loops into automatic control mode.
