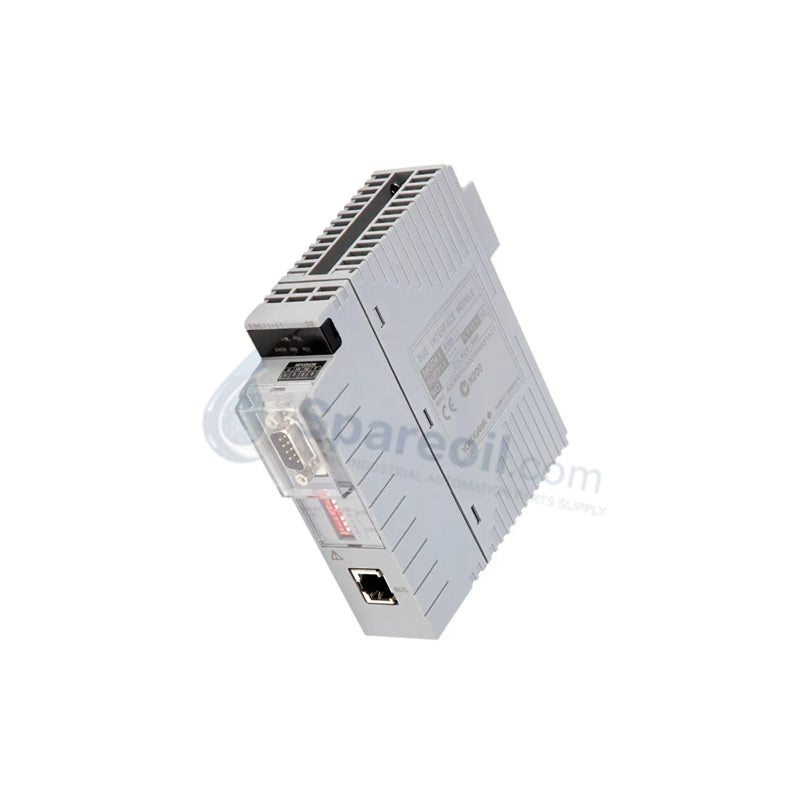

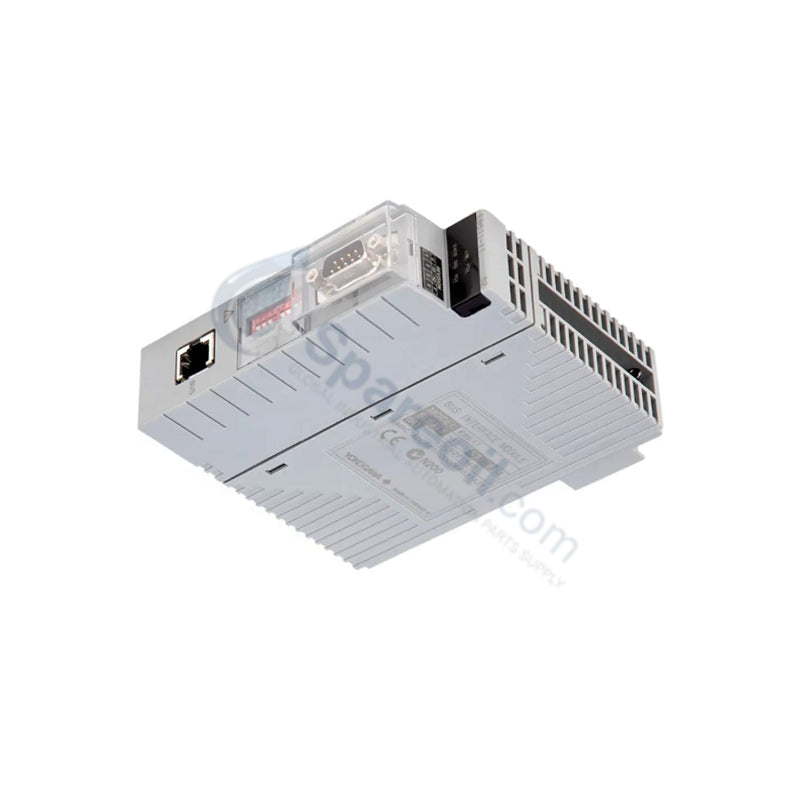

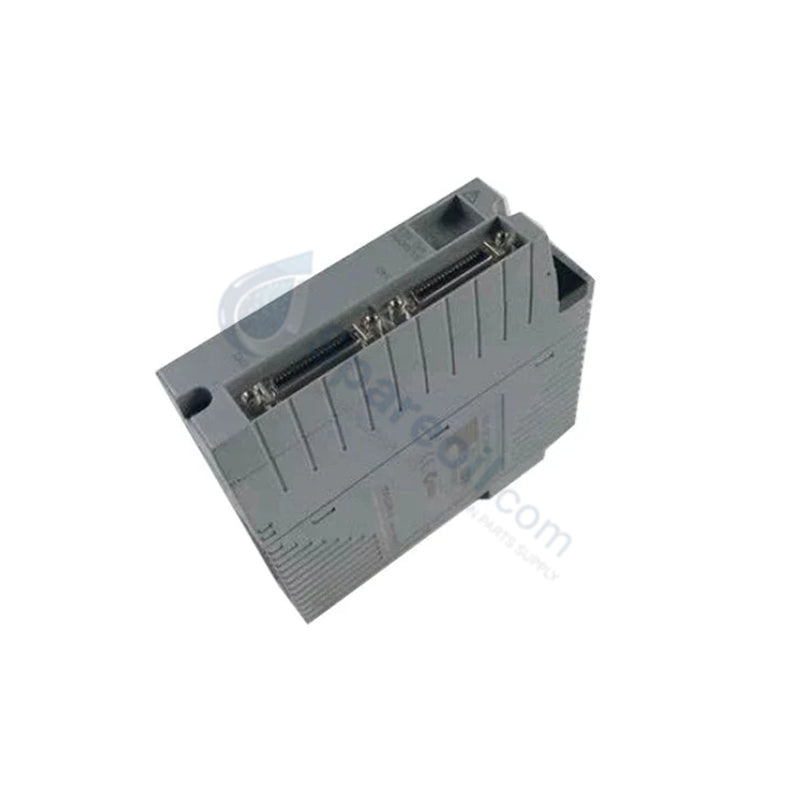

Yokogawa EB511-11 ESB Bus Node Unit

Configured for deterministic signal distribution in CENTUM VP control networks, the Yokogawa EB511-11 (EB511-11 Node Interface Unit) provides direct physical/electrical execution of ESB bus data bridging between Field Control Units (FCUs) and I/O expansion racks.

Hardware Specifications

Parameter Specification
Model EB511-11
Brand Yokogawa
Origin Japan
Weight 0.24 kg
Dimensions 32.8 x 129.5 x 130 mm
Operating Temp Consult system environmental specification
Power Consumption 0.5 A (24 V DC)
Communication Speed 128 Mbps
Max Transmission Distance 10 m
Compatibility CENTUM VP / FCU Racks

ESB Bus Communication and Data Routing

The EB511-11 functions as the terminal node for the ESB bus, facilitating high-speed data exchange between the central processor and distributed I/O nodes. It maintains 128 Mbps throughput, ensuring that scan cycles for analog and digital I/O remain deterministic within the control loop. When paired with EC401 bus coupler modules, the EB511-11 enables dual-redundant bus architectures, where automatic failover protocols maintain network integrity without process interruption. The unit's internal circuitry is hardened against common-mode noise, typical in high-density industrial cabinet environments, to ensure that the command signals and process inputs retain high signal fidelity during high-traffic bus utilization.

Frequently Asked Questions

Q: Can the EB511-11 operate as a standalone communication interface without an EC401 coupler?

A: No, the EB511-11 is designed as part of a coupled pair. It must be utilized in conjunction with an EC401 ESB bus coupler module to establish the link between the Field Control Station (FCS) and the I/O node unit.

Q: Is the 10 m transmission distance limit physically strict?

A: Yes, the 10 m limitation is enforced by the signal timing requirements of the ESB bus protocol. Exceeding this distance can introduce signal attenuation and timing skew, leading to bus communication errors or node drop-outs.

Field Installation Guidelines

  1. Rack Mounting: Verify that the FCU rack backplane is de-energized before mounting. Secure the EB511-11 module into the designated slot, ensuring the locking levers are fully compressed to engage the connector with the backplane pins.
  2. Cabling: Utilize only authorized ESB bus cables for inter-module connection. Ensure that the cable bend radius is maintained to prevent internal shield degradation and that the cables are routed away from high-voltage power conduits.
  3. Redundancy Validation: In dual-redundant configurations, confirm that the status indicators on both the EB511-11 and the associated EC401 coupler show steady state, indicating successful synchronization of the redundant bus path.
  4. Environment: If the module is deployed in an environment with corrosive potential, ensure the cabinet is sealed to IP54 standards or higher, and verify if the specific unit ordered includes the optional ISA G3 coating for added environmental protection.
