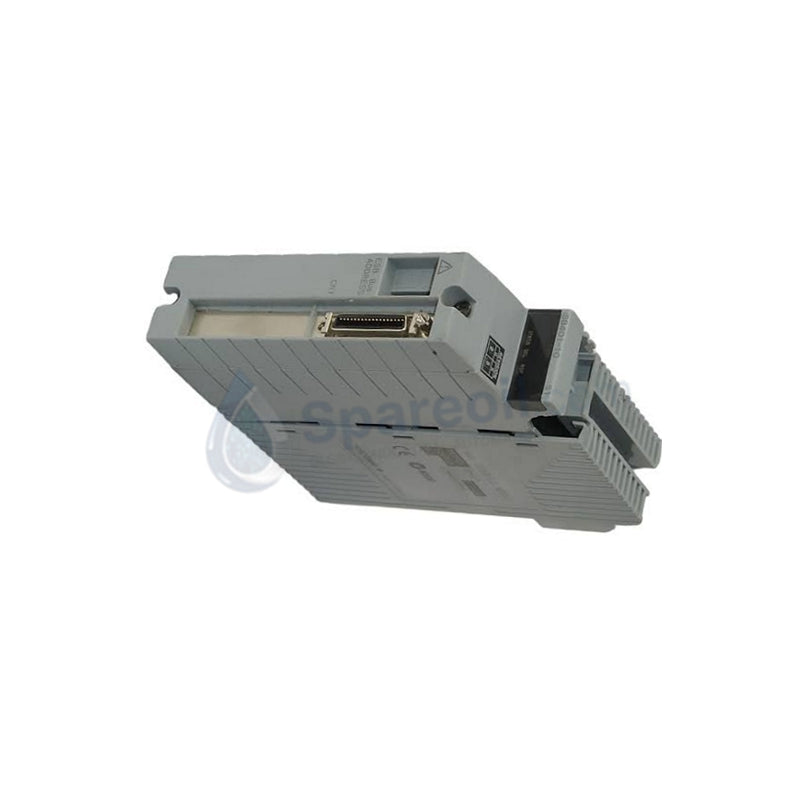

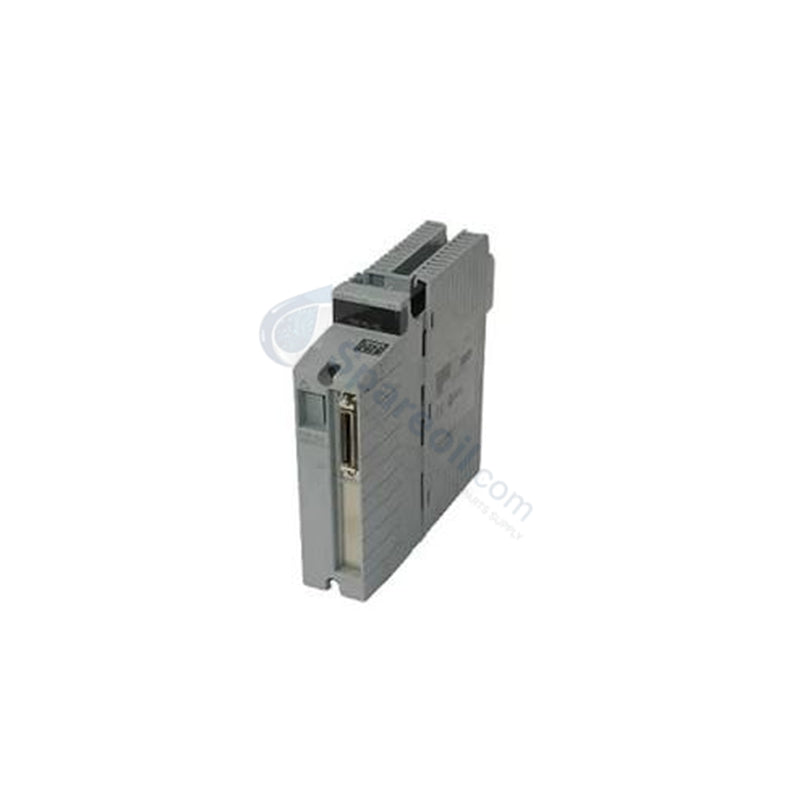

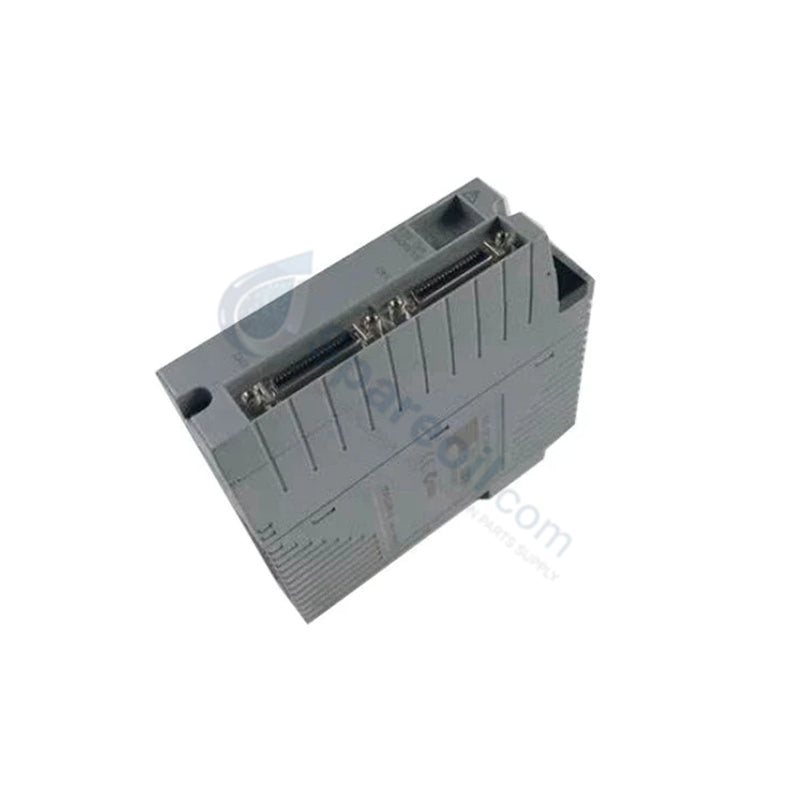

Yokogawa EC401-11 ESB Bus Coupler Module

Configured for high-speed I/O communication in CENTUM VP distributed control systems, the Yokogawa EC401-11 (EC401-11 Bus Coupler Module) provides direct physical/electrical execution of ESB bus data routing between Field Control Units (FCUs) and I/O node units.

Hardware Specifications

Parameter Specification
Model EC401-11
Brand Yokogawa
Origin Japan
Weight 0.24 kg
Dimensions 32.8 x 129.5 x 130 mm
Operating Temp Consult system environmental specification
Power Consumption 0.5 A
Data Transfer Speed 128 Mbps
Max Transmission Distance 10 m
Slot Requirements Slot 7 (non-redundant) or Slots 7 & 8 (redundant)

Yokogawa Process Control Connectivity

The EC401-11 facilitates deterministic I/O data exchange through the ESB bus architecture. It supports channel-to-channel isolation requirements inherent in CENTUM VP control station environments, ensuring data integrity during high-speed transmission. The module architecture is optimized for 128 Mbps throughput, maintaining synchronization across connected ANB10S, ANB10D, and ANT node units. When configured in a dual-redundant pair, the module employs automatic fault detection to trigger bus switch-over, maintaining control loop continuity without manual intervention.

Frequently Asked Questions

Q: Can the EC401-11 be installed in any available slot within the Field Control Unit?

A: No, the module position is restricted. It must be installed in slot 7 for non-redundant configurations, or slots 7 and 8 for dual-redundant setups to ensure proper backplane bus integration.

Q: Is the firmware version critical for system compatibility?

A: Yes, compatibility is dictated by the style code. Style 2 or higher is mandatory for Sequence of Events Manager (SEM) functionality, while Style S3 or later is required for integration with the CP471 processor.

Field Installation Guidelines

  1. Backplane Interface: Before insertion, ensure the control station is de-energized to prevent electrical arcing on the backplane pins. Align the module with the guide rails in slot 7 (or 7 and 8) and press firmly until the locking mechanism engages.
  2. Cabling: The ESB bus transmission distance is limited to 10 m. Utilize shielded twisted-pair cabling and ensure consistent shield termination at the cabinet ground bus bar to mitigate electromagnetic interference.
  3. Redundancy Setup: When installing redundant modules, perform a cold start or system re-initialization to ensure the control unit recognizes the secondary bus path. Verify status LEDs on the front panel to confirm successful synchronization of the redundant bus coupler.
  4. Environment: Verify that the cabinet satisfies ISA G3 environmental standards if the module is specified for harsh process conditions. Ensure no obstructions exist around the module casing to facilitate passive heat dissipation.
