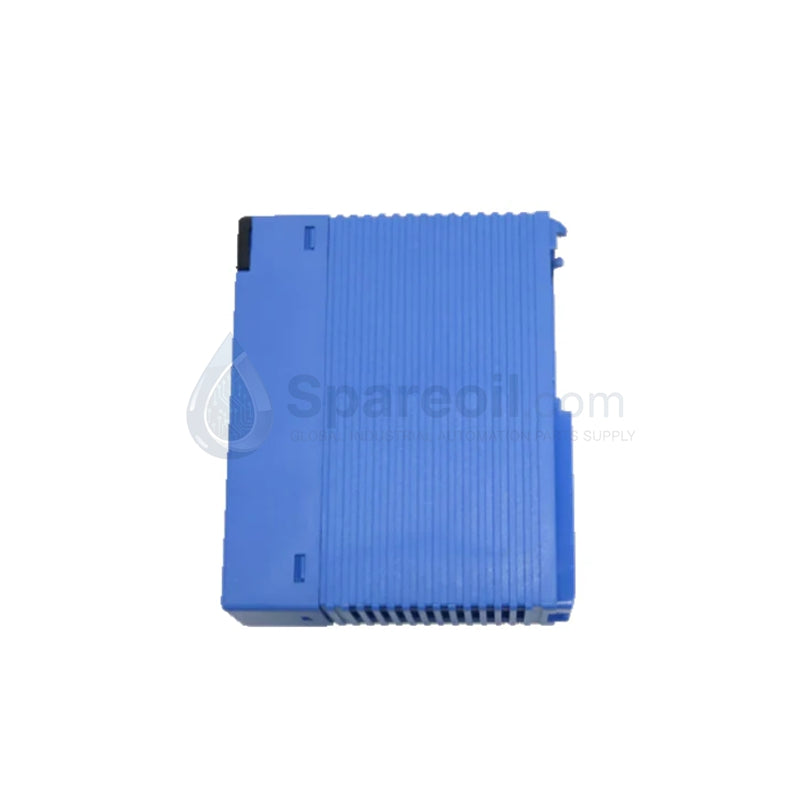

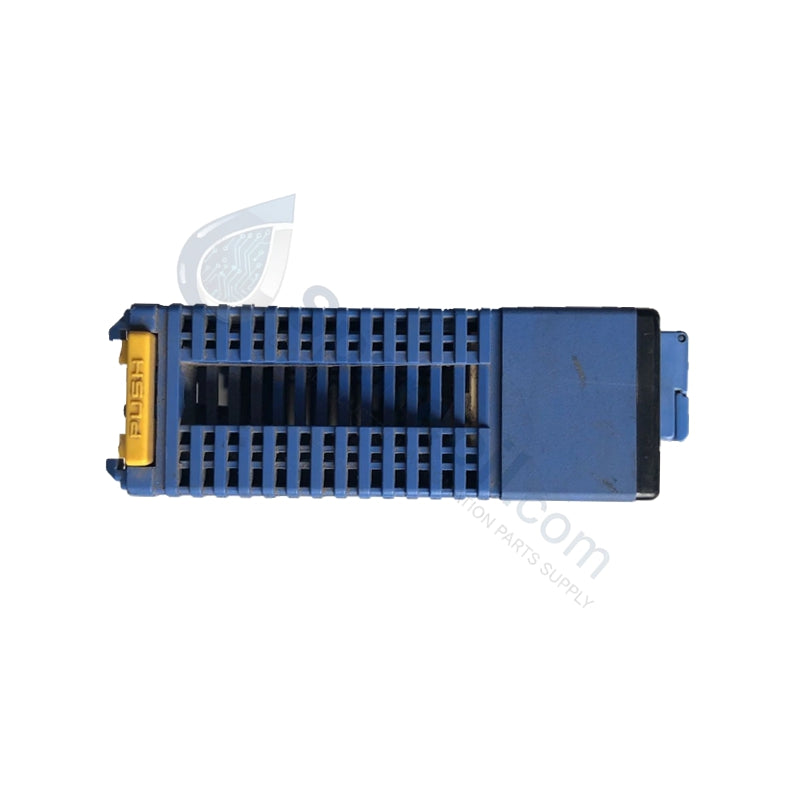

Yokogawa F3CT04-0N FA-M3 Temperature Control Module

Yokogawa F3CT04-0N FA-M3 Temperature Control Module

Availability: 20 left in stock

Yokogawa F3CT04-0N FA-M3 Temperature Control Module The Yokogawa F3CT04-0N, also cataloged as the F3CT04-0N Temperature Control Module, operates as a...

SKU: F3CT04-0N

Manufacturer: Yokogawa
Product No.: F3CT04-0N
Product Type: Temperature Control Modules
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 110g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Yokogawa F3CT04-0N FA-M3 Temperature Control Module

The Yokogawa F3CT04-0N, also cataloged as the F3CT04-0N Temperature Control Module, operates as a dedicated hardware component for multi-channel thermal signal processing and PID regulation within FA-M3 PLC platforms.

Hardware Specifications

Parameter	Specification
Model	F3CT04-0N
Brand	Yokogawa
Origin	Japan
Weight	0.11 kg (0.24 lbs)
Dimensions	120 x 120 x 90 mm
Operating Temp	0 to 55 deg C
Power Consumption	24 VDC, 200 mA
Number of Channels	4 channels
Input Types Supported	14 thermocouple types, 2 DC voltage types
Input Impedance	Greater than or equal to 20 MOhm
Sampling Period	125 ms (1 ch), 250 ms (2 ch), 500 ms (4 ch)
Control Method	Continuous PID, time-proportional, fuzzy logic
Output Tracking	Bumpless auto/manual switching
Storage Temp	-20 to 75 deg C
Humidity Range	5% to 95% RH non-condensing

Process Control & Cold Junction Compensation

The F3CT04-0N processes up to four independent process loops using software-configurable thermocouple and low-level DC voltage sensor profiles. Internal cold junction compensation (CJC) circuits balance ambient thermal drift across the terminal block to maintain input measurement integrity. Each input channel isolated from the internal backplane bus uses continuous PID combined with fuzzy logic algorithms to suppress thermal overshoot in complex loop dynamics. Dedicated continuous sampling schedules deliver stable control output updates across standard 4-20 mA loop protocol interfacing devices or discrete time-proportional drive circuits without inducing backplane communication latency.

Frequently Asked Questions

Q: Does the F3CT04-0N module support hot-swapping while the FA-M3 base unit is powered?

A: No. Power off the main FA-M3 rack power supply before inserting or removing the F3CT04-0N module to prevent physical damage to the backplane connectors and signal lines.

Q: How does channel count configuration impact overall loop sampling update speeds?

A: Input scan interval correlates directly to active channel count: 125 ms for 1 single active channel, 250 ms for 2 active channels, and 500 ms when fully utilizing all 4 input channels.

Field Installation Guidelines

Mount the module into an available slot on the FA-M3 base unit using standard plug-in alignment. Verify that local power distribution delivers a clean 24 VDC source limited to the 200 mA rating. Strip all field wiring cleanly, routing low-voltage sensor lines in grounded, shielded twisted-pair cables separate from high-voltage AC motor or heater wiring to prevent electromagnetic interference. Ground cable shields at a single point near the panel enclosure ground bar. Maintain at least a 15-minute thermal stabilization warm-up period after powering on the system before attempting precision loop calibration or system verification.
