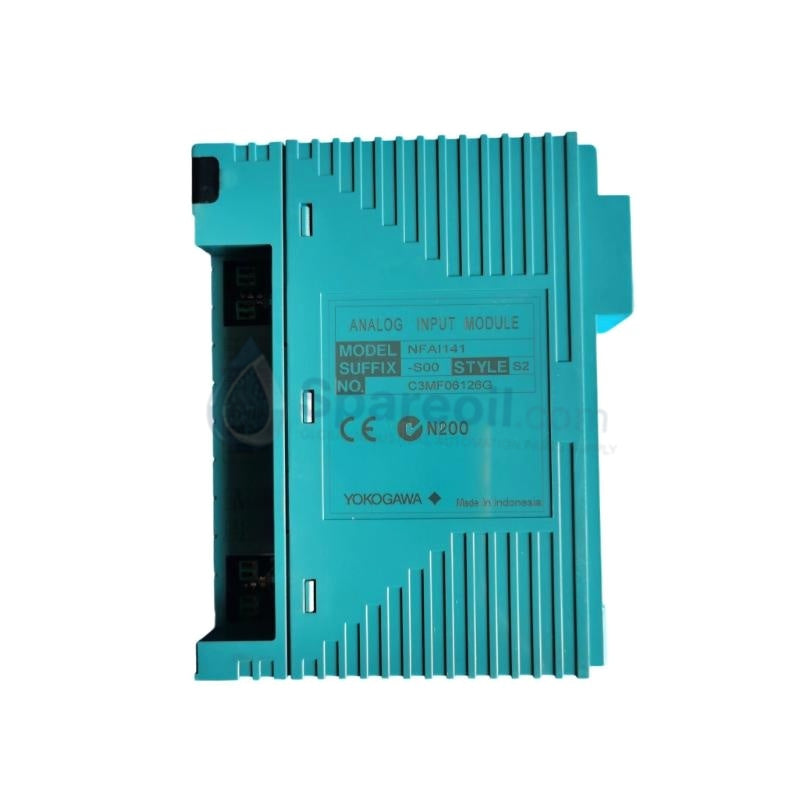

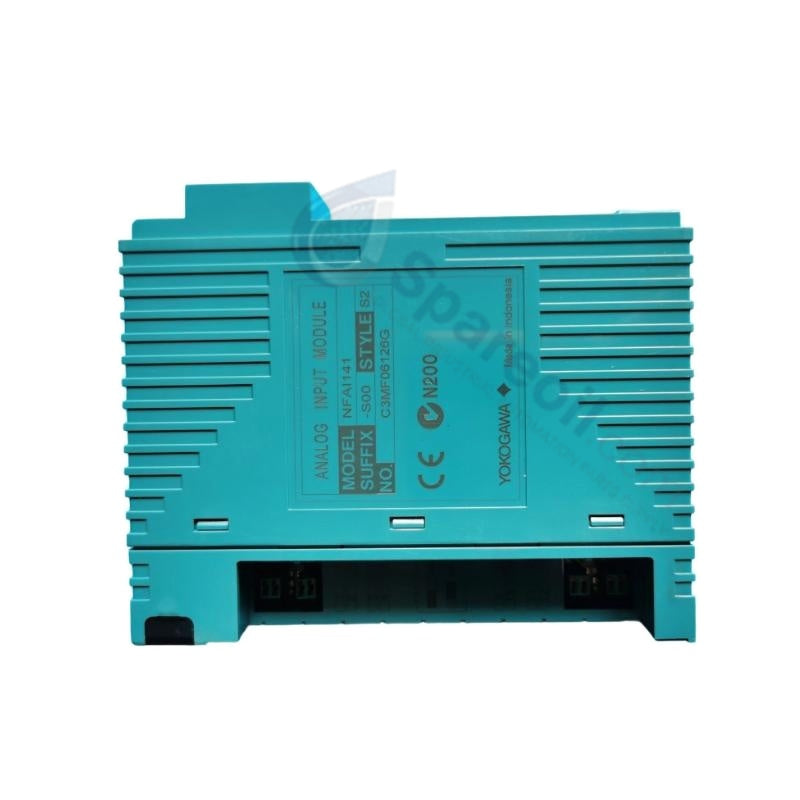

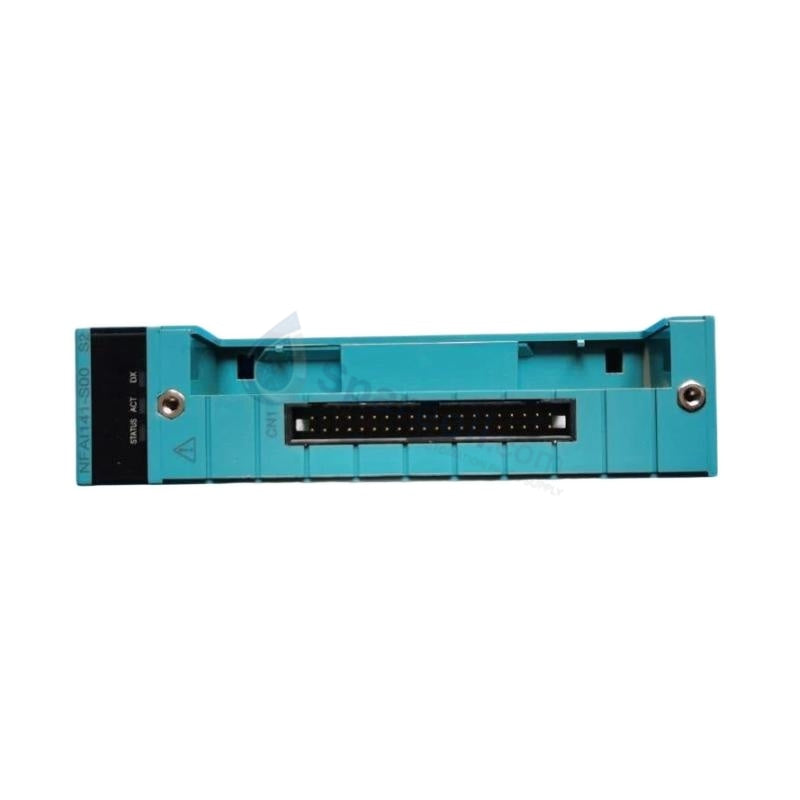

YOKOGAWA NFAI141-S00 Analog Input Module

Configured for high-precision field signal conditioning in CENTUM VP platforms, the YOKOGAWA NFAI141-S00 (NFAI141 Analog Input Module) provides direct physical/electrical execution. The module captures loop current variables across 16 channels, converting 4-20 mA inputs into digitized process values for safety instrumented functions and real-time control algorithms. Integrated filtering circuits process analog inputs at update intervals below 100 ms, transmitting structured data frames over the internal backplane bus to the host Node Interface Unit (NIU).

Suffix Breakdown & Model Matrix

Code Component	Type	Technical Assignment
NFAI141	Base Model	16-Channel Analog Input Module
-S	Suffix	Standard Type hardware architecture
0	Suffix	Always 0 (Basic Specification)
0	Suffix	Always 0 (Basic Option)

Hardware Specifications

Parameter	Specification
Model	NFAI141-S00
Brand	Yokogawa
Origin	Japan
Weight	0.2 kg
Dimensions	130 x 107.5 x 32.8 mm
Operating Temp	-20 to +60 deg C
Power Consumption	~1.5 W (300 mA at 5 VDC)
Input Channels	16 isolated analog input channels
Signal Range	4-20 mA DC current input
Measurement Accuracy	±0.1% of full scale
Input Impedance	250 Ω
Signal Conversion Cycle	Less than or equal to 100 ms
System Compatibility	CENTUM VP, ProSafe-RS
Internal Bus Power	5 VDC supplied via Node Interface Unit backplane
Isolation Barrier	Channel-to-channel and system galvanic isolation
Environmental Rating	ISA G3 conformal coating compliance

Process Instrumentation and Loop Isolation

The module utilizes independent hardware isolation barriers across every channel to eliminate ground loops and prevent high-voltage electrical surges from entering the main backplane logic. The signal interface processes raw 4-20 mA current loops across a precision 250 Ω internal load resistor, maintaining linear transfer functions for process loops integrated with the 4-20 mA HART loop protocol. Active cold junction compensation (CJC) algorithms and galvanic isolation filters continuously suppress high-frequency noise and common-mode voltage shifts.

Frequently Asked Questions

Q: Can the NFAI141-S00 module accept direct 0-10 VDC or thermocouple millivolt inputs without external conversion?

A: No. The internal signal conditioning circuitry is optimized strictly for 4-20 mA DC current signals across fixed 250 Ω input load resistors. Voltage, RTD, or thermocouple signals require dedicated signal converters or alternative input module hardware.

Q: How does channel-to-channel isolation protect the main DCS backplane during field wiring faults?

A: Internal optical and transformer isolation barriers isolate each individual input channel up to rated safety limits. If a high-voltage transient or short circuit hits a field transmitter loop, the isolation barrier confines the damage to that specific channel terminal without disrupting adjacent input channels or burning the 5 VDC backplane bus.

Q: What operational considerations apply when hot-swapping the NFAI141-S00 inside a live ProSafe-RS node?

A: Hot-swapping is fully supported on compatible terminal base units. Maintenance technicians can extract and replace the module without powering down the Node Interface Unit (NIU) or interrupting signals on adjacent I/O modules, provided the replacement card shares the exact hardware suffix and firmware revision.

Field Installation Guidelines

Base Card Alignment: Align the module side guides with the target slot on the field terminal assembly base. Slide the module straight inward until the backplane multi-pin connector latches into place.
Shield Ground Terminal Connections: Terminate all field cable braided shields onto the designated instrument grounding bar (IGB). Keep shield drain wires as short as possible and isolate instrument earth from general power grounds.
Conduit and Signal Separation: Route 4-20 mA analog input cables inside dedicated low-voltage instrument ducts. Maintain a minimum spatial gap of 300 mm from 230 VAC/480 VAC power lines and variable frequency drive motor leads.
Cabinet Environment Monitoring: Maintain cabinet internal ambient temperatures between -20 and +60 deg C. Verify that airflow through the chassis ventilation slots remains unobstructed to prevent internal module overheating.
