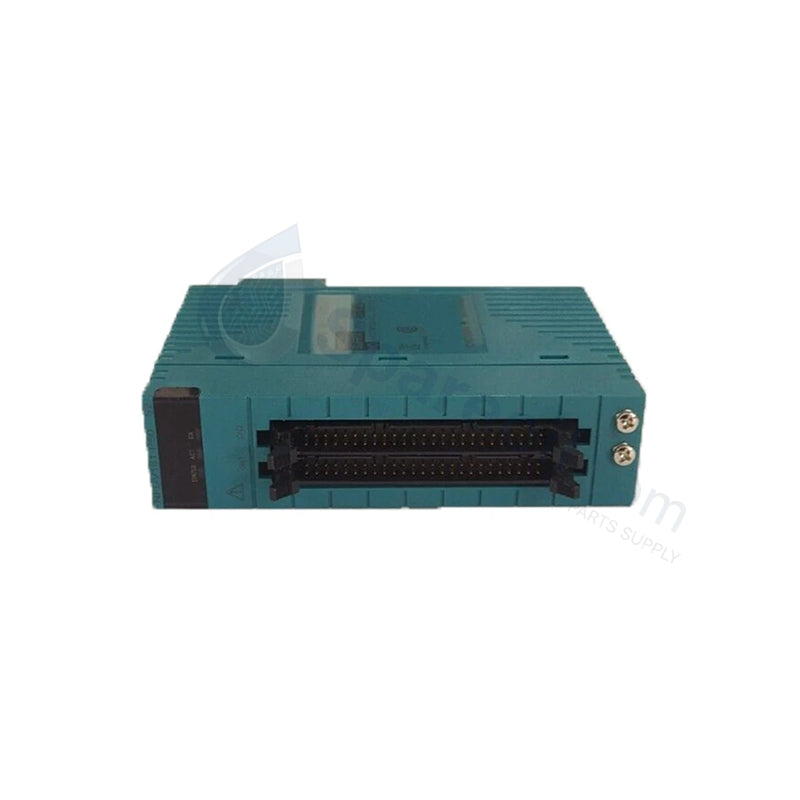

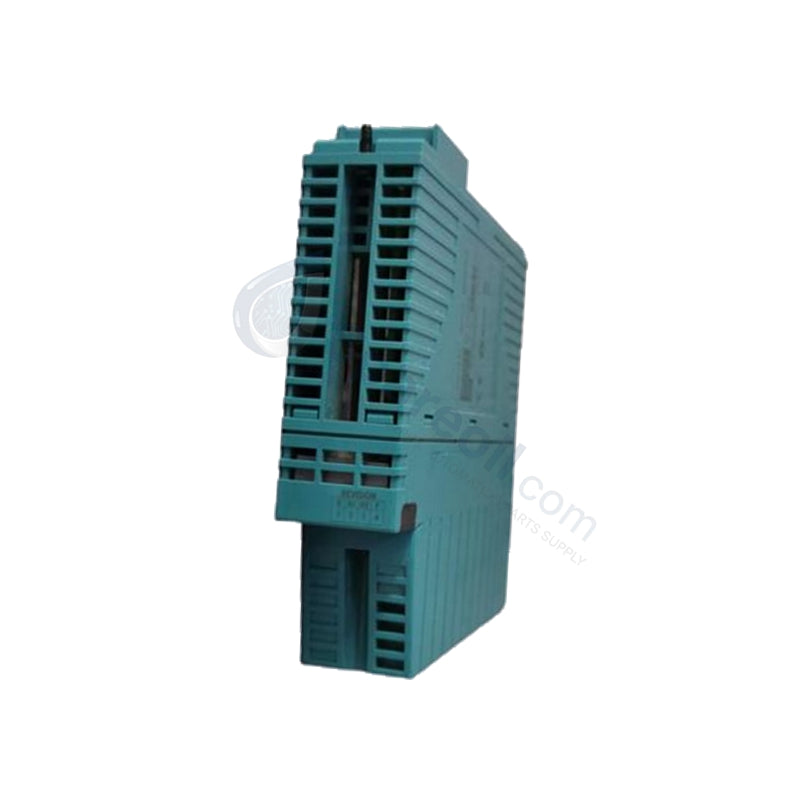

Yokogawa NFAI143-S50/A4S00 Analog Input Module 16-Channel FIO

Yokogawa NFAI143-S50/A4S00 Analog Input Module 16-Channel FIO

Availability: 10 left in stock

Yokogawa NFAI143-S50 Analog Input Module The Yokogawa NFAI143-S50, also cataloged as the NFAI143-S50/A4S00 Analog Input Module, operates as a dedicated...

SKU: NFAI143-S50

Manufacturer: Yokogawa
Product No.: NFAI143-S50
Product Type: Analog Input Modules
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Yokogawa NFAI143-S50 Analog Input Module

The Yokogawa NFAI143-S50, also cataloged as the NFAI143-S50/A4S00 Analog Input Module, operates as a dedicated hardware component for 16-channel analog signal acquisition within FIO and CENTUM VP systems. Configured for high-speed process monitoring, this module executes 16-bit analog-to-digital conversion, providing isolated 4-20 mA current input processing with integrated loop power supply capabilities for both 2-wire and 4-wire field instrumentation.

Suffix Breakdown & Model Matrix

Model	Description
NFAI143	Base Model: 16-Channel Analog Input Module
-S50	Standard Version: Field I/O (FIO) Subsystem Support
/A4S00	Ordering Option: Standard Terminal Block/Connector Interface

Hardware Specifications

Parameter	Specification
Model	NFAI143-S50/A4S00
Brand	Yokogawa
Origin	Japan
Weight	0.3 kg
Dimensions	130 mm x 107 mm x 32 mm
Operating Temp	-20 deg C to +70 deg C
Power Consumption	230 mA (5 V DC), 540 mA (24 V DC)
Channel Capacity	16 Isolated channels
Accuracy	+/- 0.1% of full scale

Process Control and Signal Integrity

The NFAI143-S50 utilizes channel-to-channel isolation rated at 1500 V AC to prevent ground loops and electrical interference from propagating through the system bus. Each channel provides a dedicated 24-25.5 V DC transmitter power supply, with integrated overcurrent protection set at a 25 mA limit. The module supports HART protocol transparency, facilitating digital diagnostic overlays on analog loops. With a 10 ms data refresh cycle and a 100 ms step response, the module ensures deterministic signal ingestion for real-time control loops and safety instrumented systems.

Frequently Asked Questions

Q: How is the transmitter wiring mode selected for individual channels?

A: The configuration for 2-wire or 4-wire transmitter operation is determined by physical setting pins located on the module interface. Ensure these pins are set correctly before energizing the loop.

Q: Does the module support hot-swapping under load?

A: Yes, the NFAI143-S50 is designed to support hot-swap replacement within the FIO rack. During the swap, the system backplane maintains integrity while the replacement module performs self-initialization.

Q: Is the cold-junction compensation (CJC) relevant to this module?

A: While the documentation notes CJC, this module is specifically optimized for current-loop inputs. CJC functions are primarily utilized in modules intended for thermocouple signal processing.

Field Installation Guidelines

Mounting and Bonding: Secure the module to the designated FIO backplane. Ensure the rack is effectively bonded to the cabinet earth bus to maintain the 1500 V AC isolation rating against common-mode transients.
Wiring Practice: Utilize shielded, twisted-pair cables for signal runs. Connect the cable shield to the cabinet grounding bar at the entry point. Avoid running signal lines adjacent to high-voltage AC cables to maintain the 0.1% accuracy threshold.
Termination: For 2-wire transmitter loops, verify that the module provides the loop power; for 4-wire transmitters, ensure the external power supply polarity matches the module's input requirements to prevent diode-bridge overcurrent trips.
Thermal Management: Despite the wide operating range, install the module in a location with adequate airflow. Maintain clearances as specified by the system installation manual to ensure consistent performance at the 70 deg C upper thermal limit.
