PW302-S4 Yokogawa Power Supply Module

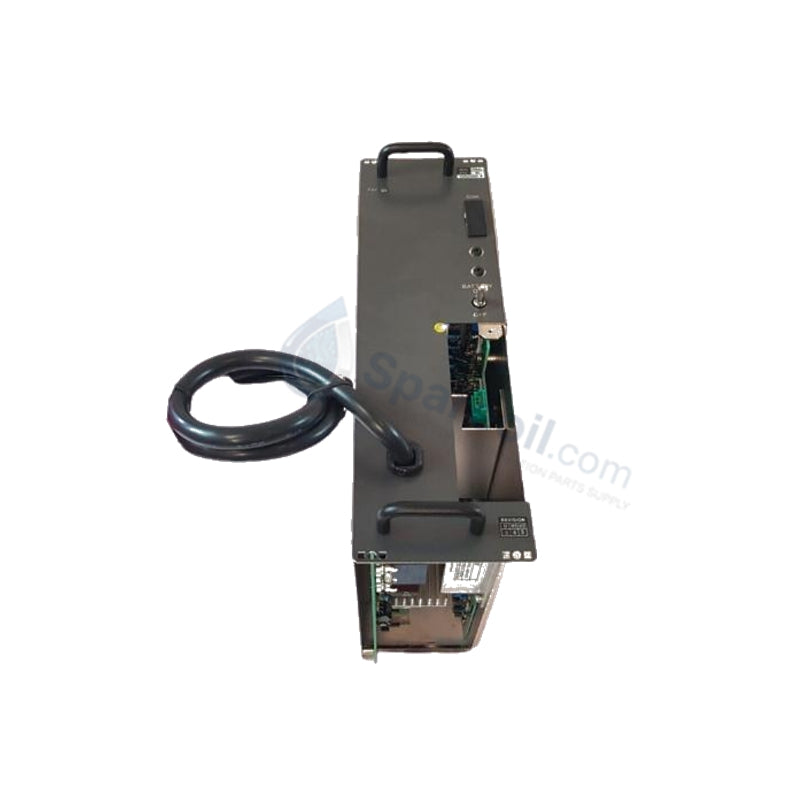

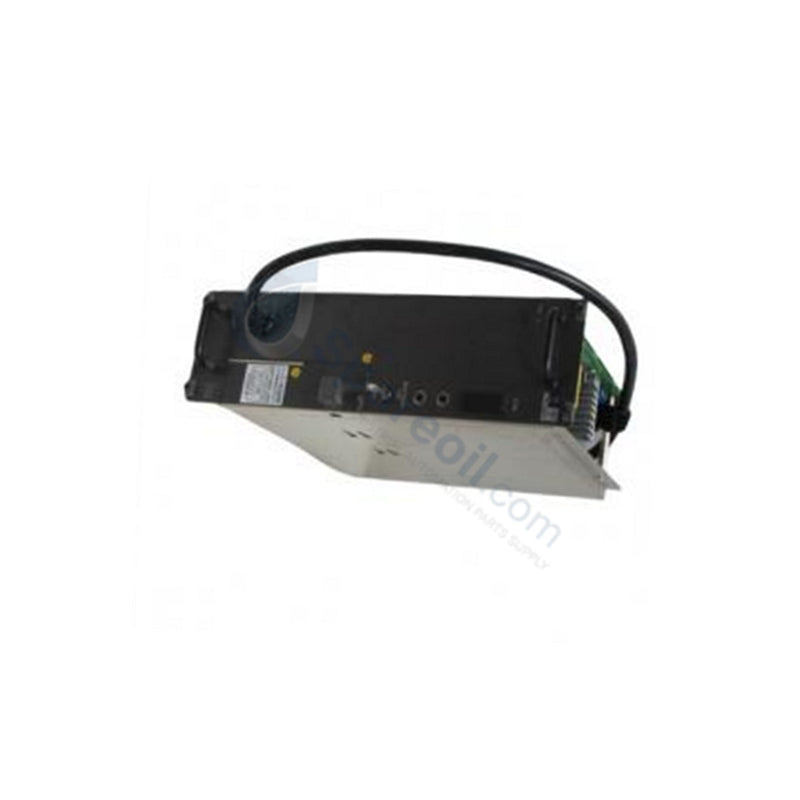

Yokogawa PW302-S4 CENTUM CS3000 DC Power Supply Module

Yokogawa PW302-S4 CENTUM CS3000 DC Power Supply Module

Availability: 10 left in stock

Yokogawa PW302-S4 Power Supply Module The Yokogawa PW302-S4, also cataloged as the PW302 Power Supply Module, operates as a dedicated...

SKU: PW302 S4

Manufacturer: Yokogawa
Product No.: PW302 S4
Product Type: Power Supply Modules
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 3000g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Yokogawa PW302-S4 Power Supply Module

The Yokogawa PW302-S4, also cataloged as the PW302 Power Supply Module, operates as a dedicated hardware component for regulated DC power distribution within CENTUM CS3000 and VP control stations.

Suffix Breakdown & Model Matrix

The PW302 series distinguishes variants based on input voltage compatibility. Select the appropriate configuration to ensure adherence to site AC distribution standards.

Model Suffix	Input Voltage Range	Primary Output
PW302-S4	100-120 VAC / 200-240 VAC	5 VDC @ 20 A / 24 VDC @ 3 A

Hardware Specifications

Parameter	Specification
Model	PW302-S4
Brand	Yokogawa
Origin	Germany
Weight	3.0 kg to 3.6 kg
Dimensions	11 x 28 x 26 cm
Operating Temp	0 deg C to +55 deg C
Power Consumption	Variable based on system load
Logic Output	5 VDC @ 20 A

Process Control & Power Distribution

The module executes power regulation through internal conversion stages, providing channel-to-channel isolation to prevent electrical noise coupling between the logic-level DC rails and auxiliary I/O loops. It supports dual-redundant power architectures where two units operate in parallel with automatic load sharing. Integrated protection circuits monitor for thermal overloads, overvoltage, and overcurrent conditions, triggering an automatic shutdown if output parameters deviate from defined tolerances. Furthermore, the module ensures cold junction compensation (CJC) stability for precision analog input modules by maintaining consistent reference voltage levels across the backplane bus.

Frequently Asked Questions (FAQ)

Q: Does the PW302 support hot-swap replacement?

A: Yes, the module supports hot-swap functionality within redundant configurations. Ensure the control station backplane provides sufficient mechanical support and electrical interlocking to prevent short-circuits during module insertion or extraction while the system remains energized.

Q: What is the primary indicator of a redundancy failure?

A: The front-panel LED array includes dedicated indicators for redundancy status. A change in state from steady green to a flashing or extinguished condition identifies a loss of handshake or synchronization between paired power modules.

Field Installation Guidelines

Mounting: Secure the module within the designated FCS rack slot. Ensure all rear-plane guide rails are aligned before applying pressure to engage the power connectors.
Cooling: The PW302 utilizes forced-air cooling. Verify that the internal fans are operational upon power-up and maintain clear air intake/exhaust paths to prevent premature thermal shutdown.
Wiring: Terminate AC input leads using high-conductivity stranded wire. Ensure that the protective earth (PE) connection is fastened to the cabinet ground stud with a low-impedance connection to mitigate common-mode interference.
Maintenance: Periodically inspect the connector pins for signs of oxidation or wear. Use an approved contact cleaner if debris is present, and ensure the module is firmly locked in position to maintain reliable contact with the backplane bus.
