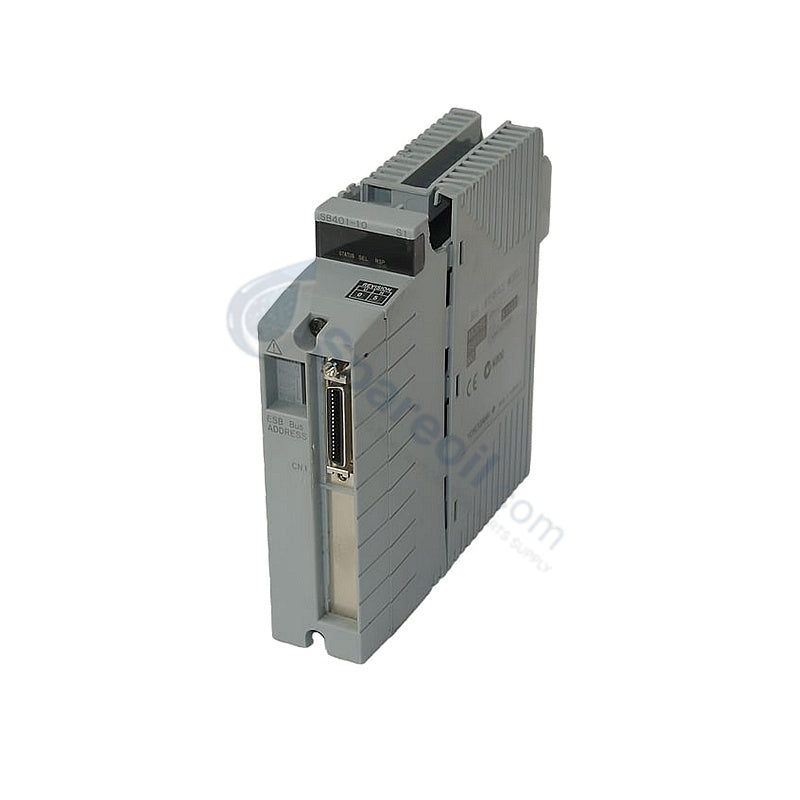

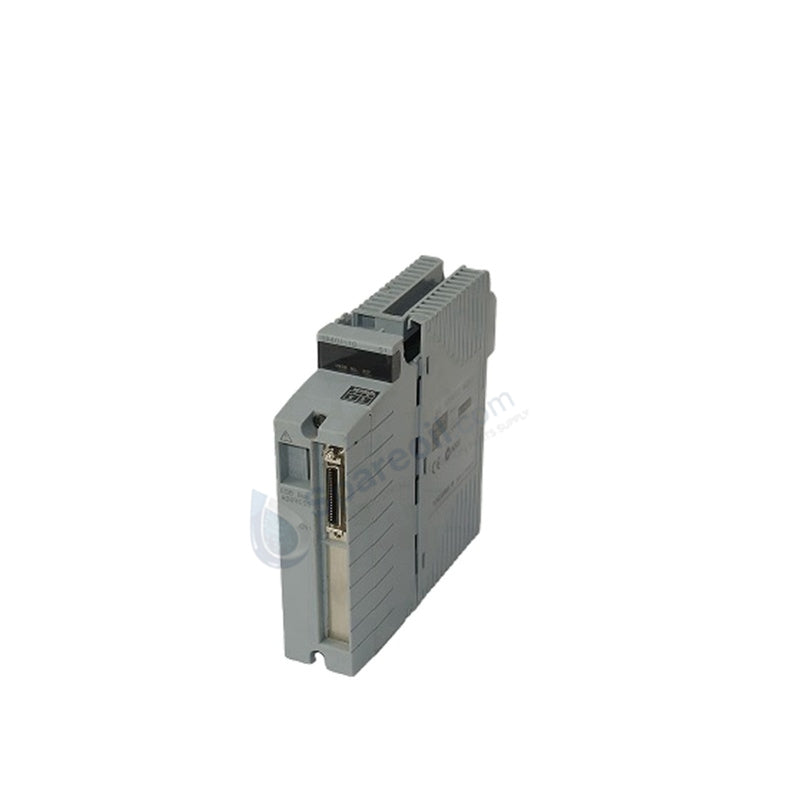

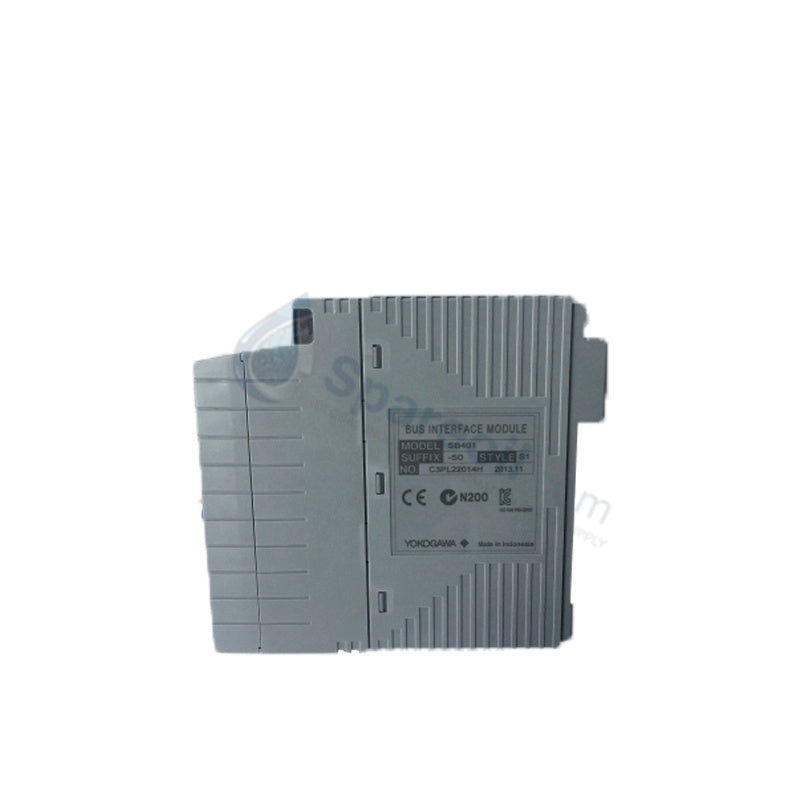

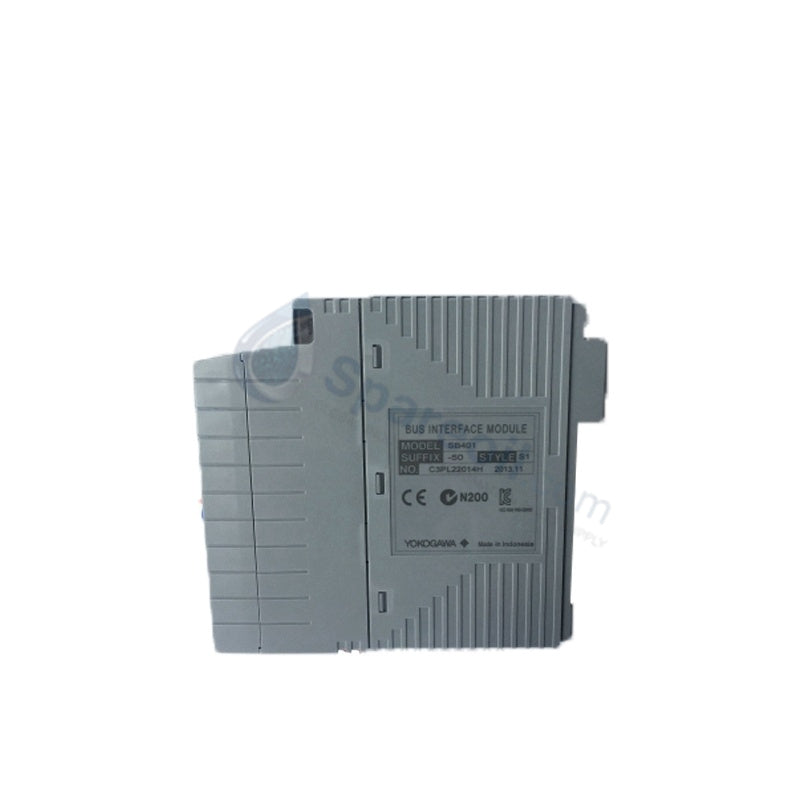

Yokogawa SB401-53 CENTUM VP ESB Bus Interface Slave Module
The Yokogawa SB401-53, also cataloged as the SB401 ESB Bus Interface Slave Module, operates as a dedicated hardware component for high-speed dual-redundant bus connectivity between field control units and extension nodes within Yokogawa CENTUM DCS systems.
Suffix Breakdown & Model Matrix
| Suffix Code | Option | Description |
|---|---|---|
| SB401 | Base Model | ESB Bus Interface Slave Module |
| -5 | Protection | Standard type with no explosion protection |
| 3 | Environment | Conformal coating matching ISA Standard G3 and standard operating temperature |
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | SB401-53 |
| Brand | Yokogawa |
| Origin | Japan |
| Weight | 0.40 kg (Net) / 2.0 kg (Shipping) |
| Dimensions | Compact rack-mount modular unit |
| Operating Temp | 0 deg C to 55 deg C |
| Power Consumption | Low-power continuous operation |
| Communication Protocol | ESB (Extension System Bus), dual-redundant |
| Data Transfer Rate | Up to 10 Mbps synchronous |
| Mounting | DIN rail or panel mounting in node chassis |
| Status Indicators | Front panel LED indicators for channel diagnostic status |
Channel-to-Channel Isolation and DCS Integration
The SB401-53 module maintains high-integrity transmission of process data across the Extension System Bus while providing optical and electrical channel-to-channel isolation. This physical separation shields internal logic microprocessors from high-frequency electromagnetic interference and transient voltage spikes propagating along the extended field bus loops. Furthermore, full compatibility with 4-20 mA HART loop protocol pass-through architectures guarantees that digital field instrument diagnostics reach host controllers without latency or packet loss across redundant bus paths.
Frequently Asked Questions
Q: What physical network topology does the SB401-53 ESB Bus Interface Module require?
A: The module requires dual coaxial or dedicated bus cabling configured in a fault-tolerant point-to-point or bus extension arrangement. Channel A and Channel B must be cabled independently to support uninterrupted hardware-level failover.
Q: How does the ISA Standard G3 conformal coating specification impact field deployment?
A: The "3" option code indicates that internal printed circuit boards feature enhanced conformal coating. This protects electronic components against airborne corrosive contaminants, such as sulfur dioxide and hydrogen sulfide, conforming to ISA Standard G3 severe environment requirements.
Field Installation Guidelines
Seat the SB401-53 slave module firmly into its designated node rack slot until the backplane connector completely engages. Secure the top and bottom captive retaining screws to prevent connector misalignment under mechanical vibration.
Route primary and secondary ESB cables through dedicated routing ducts, separating them from high-voltage power lines and field actuator motor feeds. Maintain proper bend radii on all bus cables to prevent impedance changes, and verify that the front panel status LEDs illuminate green for both channels upon system power-up.
