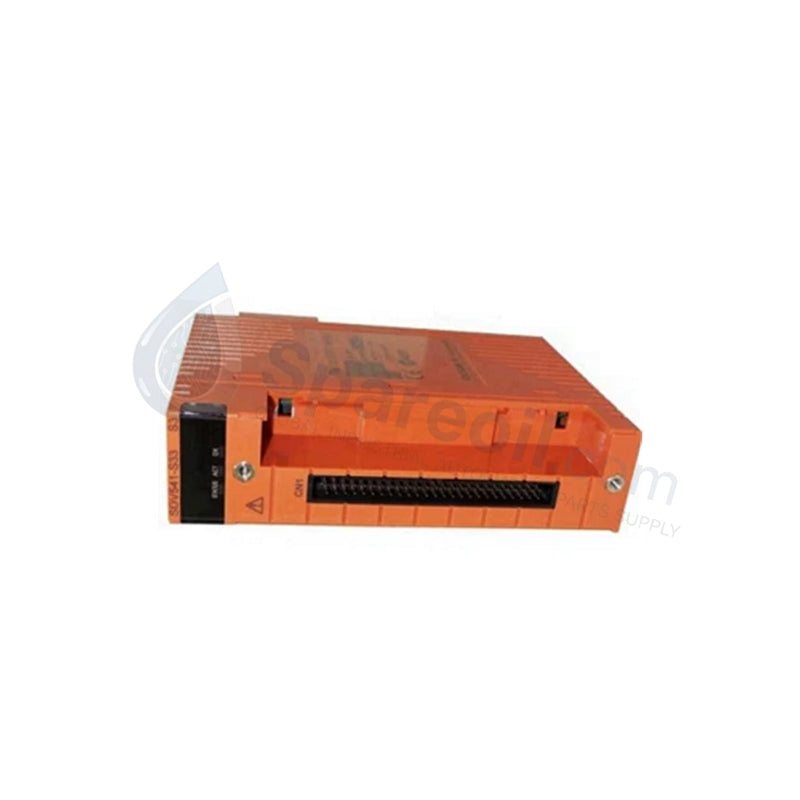

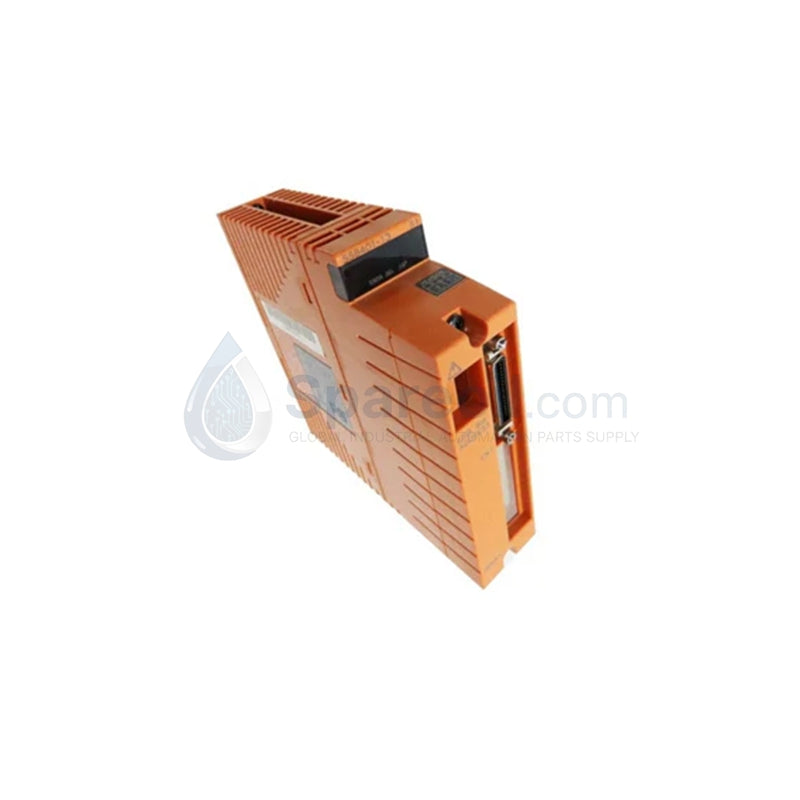

YOKOGAWA SDV541-S33 Digital Output Module
Configured for discrete control signal execution in CENTUM VP FIO subsystems, the YOKOGAWA SDV541-S33 (SDV541-S33 Digital Output Module) provides direct electrical actuation for field-side devices.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | SDV541-S33 |
| Brand | YOKOGAWA |
| Origin | Japan |
| Weight | 2.2 kg |
| Dimensions | 482.6 mm x 132.5 mm x 3U |
| Operating Temp | 0 to 50 deg C |
| Power Consumption | 0.6 A at 24 V DC |
| Channel Density | 32 discrete outputs |
| Signal Type | 24 V DC ON/OFF voltage output |
| Update Cycle | 100 ms |
DCS Process Control and Loop Connectivity
The SDV541-S33 module integrates directly into the YOKOGAWA CENTUM VP platform, facilitating high-density discrete signaling. The architecture incorporates channel-to-channel and channel-to-system isolation, which prevents electrical noise propagation and ground loops within the process network. By leveraging this isolation, the module maintains signal integrity for sensitive actuators even when subjected to industrial electromagnetic interference. Furthermore, the firmware supports redundant configuration modes, allowing pairs of modules to operate in a master-standby arrangement to ensure continuous process availability during active controller cycles.
Frequently Asked Questions
Q: Does the SDV541-S33 support hot-swapping during normal process operation?
A: Yes, the module supports hot-swapping within the CENTUM VP FIO subsystem. Operators must ensure the corresponding terminal board remains secure while the module is extracted to maintain electrical continuity for remaining loops.
Q: Is the output voltage compatible with 120 V AC loads?
A: No, this module provides 24 V DC discrete outputs. Attempting to switch AC voltages will result in immediate hardware damage to the output transistor array.
Q: How does the module handle fault conditions in a redundant pair?
A: In a dual-redundant configuration, the system monitors the health status of both modules. If the primary module fails to communicate or provides an invalid status bit, the secondary module assumes control via the FIO bus to prevent a process trip.
Field Installation Guidelines
Ensure the module is installed in a clean, dry environment that complies with the specified 0 to 50 deg C temperature range. Before inserting the module into the rack, verify that the 24 V DC power supply is stable and properly filtered. Connect all field wiring to the designated terminal blocks using shielded, twisted-pair cables to minimize inductive coupling. Route signal wires away from high-voltage AC lines or motor power feeders. Finally, perform a continuity check on the field-side cable paths to ensure no shorts exist before applying power to the output loops.
