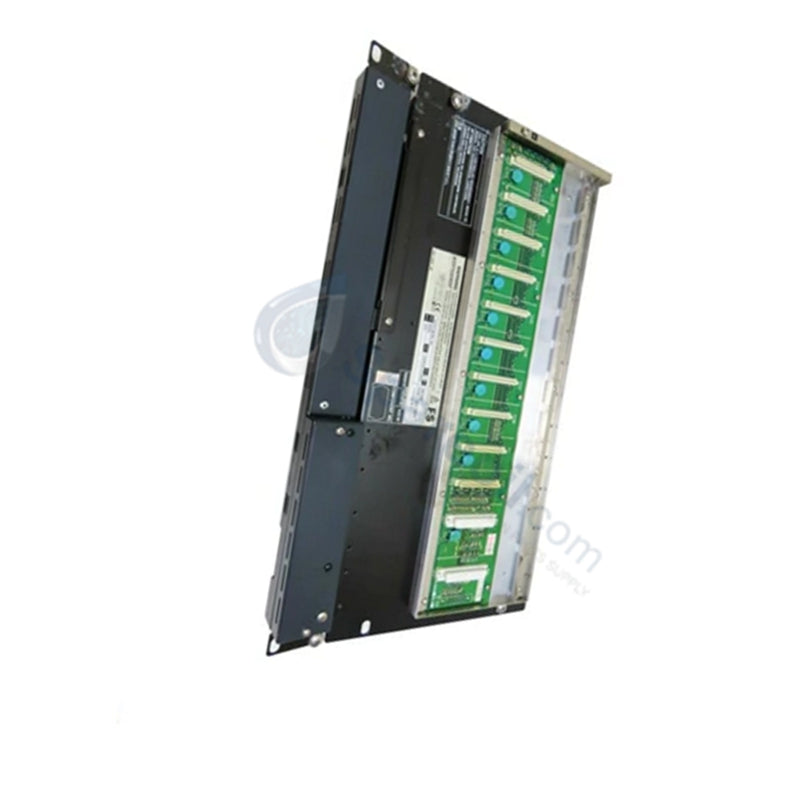

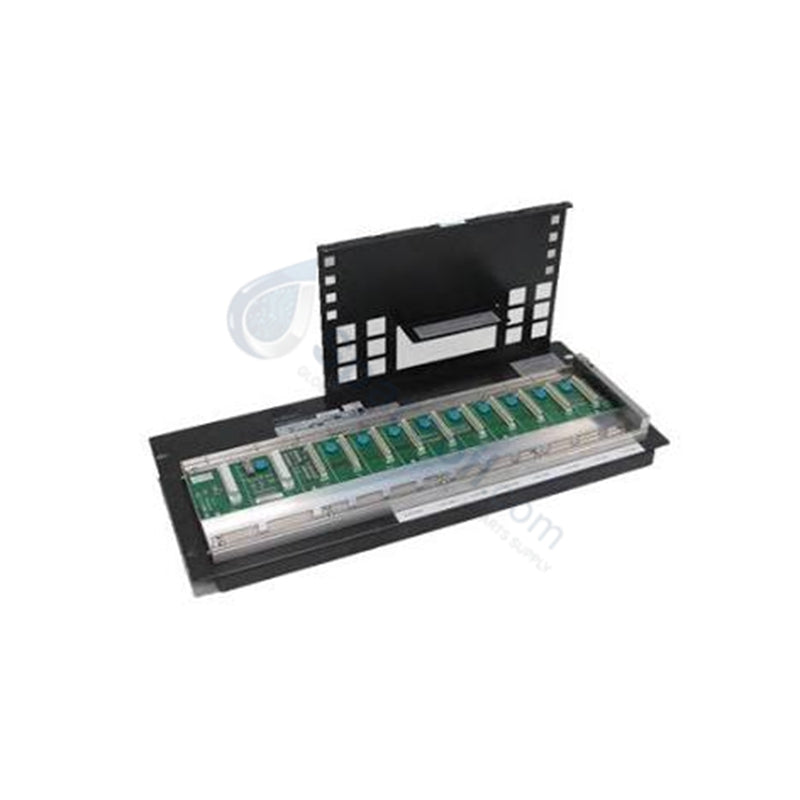

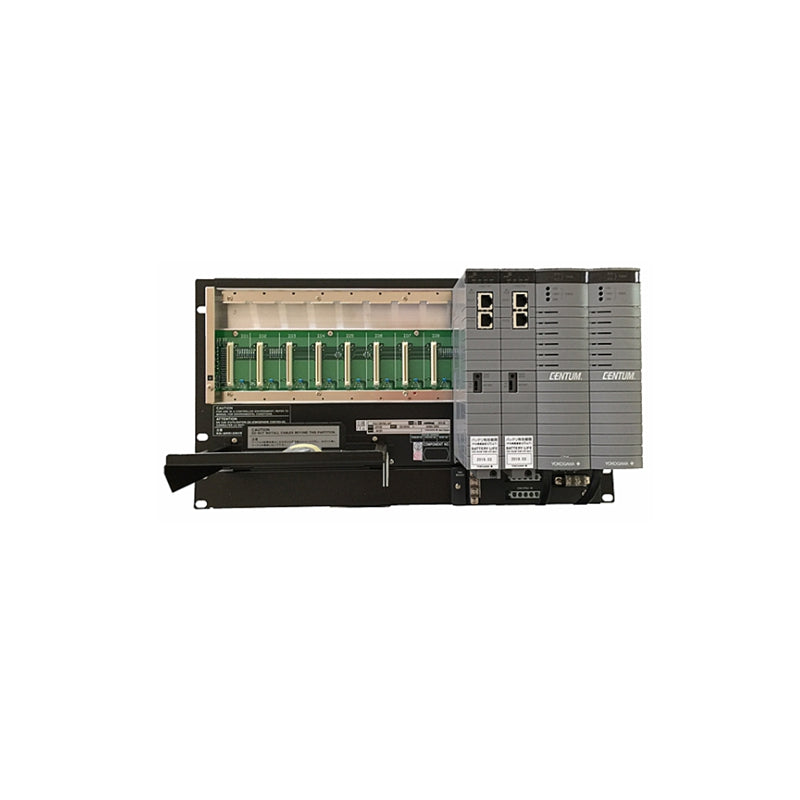

Yokogawa SNB10D-215/CU2T Safety Node Unit

The Yokogawa SNB10D-215/CU2T, also cataloged as the SNB10D Safety Node Unit, operates as a dedicated hardware component for housing safety I/O modules and distributing power across ProSafe-RS SIS platforms.

Suffix Breakdown & Model Matrix

Code Option / Specification Description
SNB10D Base Model Safety Node Unit (Rack Mountable Type)
-2 Power & License Dual-redundant power supply with software license for node expansion
1 Power Voltage 100 to 120 V AC power supply
5 Protection / Temp ISA Standard G3 conformal coating, temperature range -20 to 70 deg C, no explosion protection
/CU2T Option Code Connector Unit with Terminator for ESB Bus

Hardware Specifications

Parameter Specification
Model SNB10D-215/CU2T
Brand Yokogawa
Origin Japan
Weight 6.0 kg (Net), 8.0 kg (Shipping)
Dimensions 19-inch rack-mountable chassis (4U height profile)
Operating Temp -20 to +70 deg C
Power Consumption 200 to 230 VA (100 to 120 V AC)
System Platform ProSafe-RS SIS
Power Supply Redundancy Dual-redundant power supply modules built-in
Communication Bus ESB bus via /CU2T connector unit with terminator
Environmental Coating ISA Standard G3
Safety Integrity Level SIL2 / SIL3 certified (IEC 61508)

Process Control and DCS Connectivity

The SNB10D-215/CU2T safety node unit routes deterministic signal channels between installed safety I/O cards and the master safety control unit over the ESB bus interface. The integrated /CU2T connector unit provides line termination to stabilize high-speed bus communication and suppress signal reflections. High-density backplane isolation prevents noise cross-talk between process loops, ensuring high conversion accuracy for field devices using 4-20 mA HART loop protocol connections and discrete safety interlocks.

Frequently Asked Questions

Q: What function does the /CU2T option code fulfill on the SNB10D-215/CU2T unit?

A: The /CU2T option designates an factory-installed Connector Unit complete with an integrated ESB bus terminator to maintain bus impedance and signal integrity.

Q: How does the internal power supply configuration maintain node availability?

A: The chassis incorporates dual-redundant 100 to 120 V AC power modules, allowing continuous safety operation if one power feed fails.

Field Installation Guidelines

Mount the SNB10D-215/CU2T unit horizontally into a standard 19-inch instrument rack using four dedicated M5 retaining screws. Fasten a heavy-gauge protective earth ground strap directly to the chassis grounding stud prior to applying line power. Attach incoming 100 to 120 V AC power feeds to separate primary and secondary terminal blocks to establish full power redundancy. Connect ESB bus extension cables to the /CU2T connector unit, taking care not to exceed maximum cable bend radii or run bus lines alongside high-voltage AC cables. Ensure cabinet ventilation leaves at least 100 mm of open clearance above and below the rack frame for natural thermal dissipation across the -20 to +70 deg C operating window.
