T8403 ICS Triplex Digital Input Module

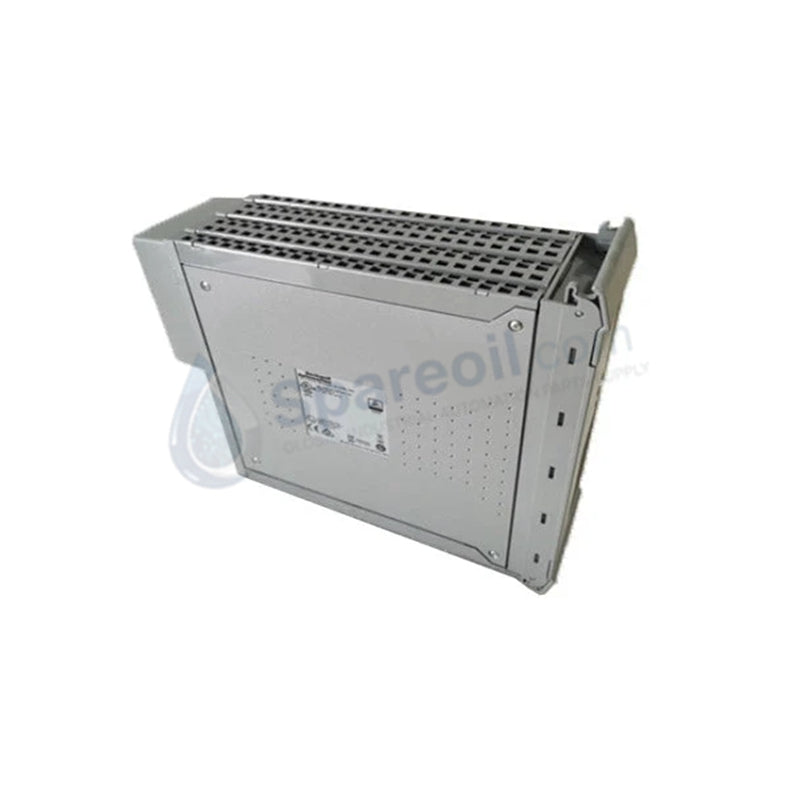

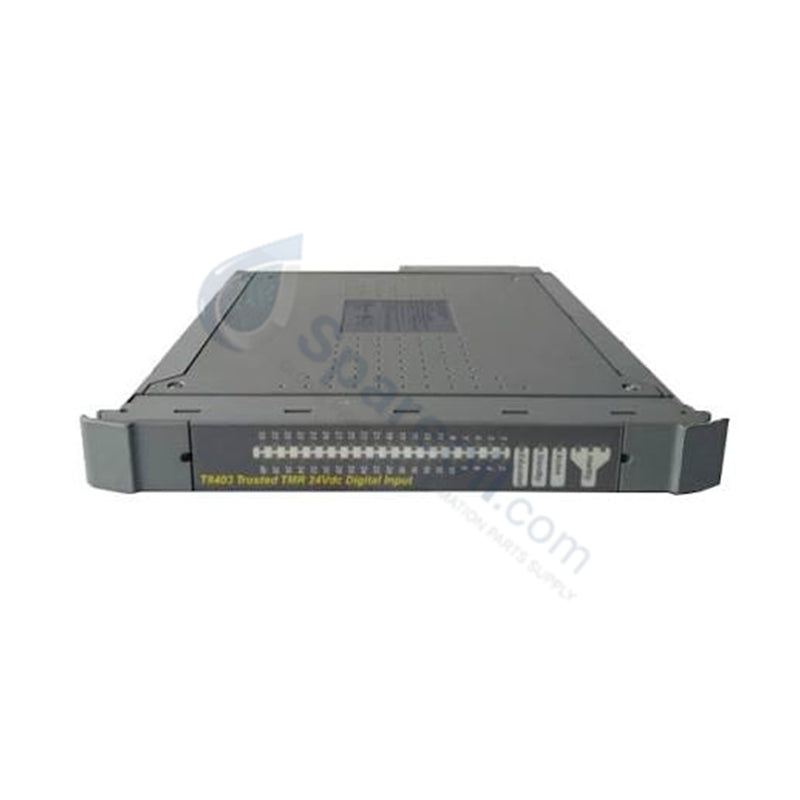

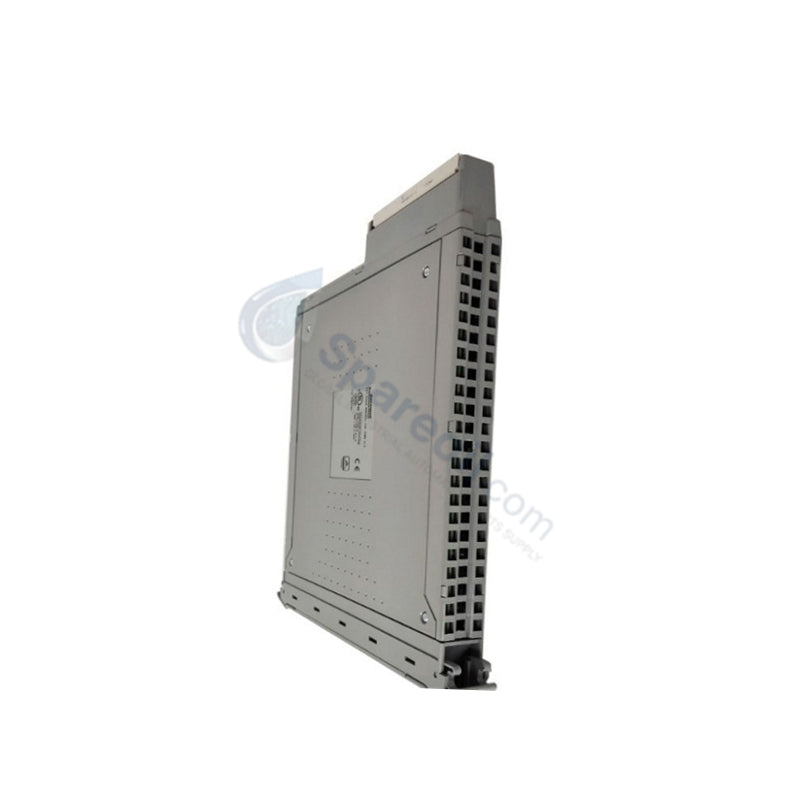

ICS Triplex T8403 Trusted TMR Series Digital Input Module

ICS Triplex T8403 Trusted TMR Series Digital Input Module

التوفر: 20 متوفر في المخزون

ICS T8403 Trusted TMR 24V dc Digital Input Module The ICS T8403 Trusted TMR 24V dc Digital Input Module (T8403...

رمز المنتج: T8403

Manufacturer: ICS Triplex
Product No.: T8403
Product Type: ICS Triplex Trusted TMR
Product Origin: USA
Payment:T/T, Western Union
Weight: 700g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

ICS T8403 Trusted TMR 24V dc Digital Input Module

The ICS T8403 Trusted TMR 24V dc Digital Input Module (T8403 Digital Input Module) serves as the primary T8403 Digital Input Module utilized to execute high-integrity signal acquisition across Trusted TMR safety platforms.

Hardware Specifications

Parameter	Specification
Model	T8403
Brand	ICS Triplex
Origin	Industrial Standard Specification
Weight	0.7 kg
Dimensions	142 mm × 92 mm × 54 mm
Operating Temp	-20 deg C to +60 deg C
Power Consumption	6 W
Input Voltage	24 VDC
Isolation Voltage	1500 VDC (port-to-system)
Housing Material	High-strength aluminum alloy

Triple Modular Redundancy (TMR) and Fail-Safe Execution

The ICS T8403 architecture utilizes a Triple Modular Redundancy (TMR) 2oo3 configuration to ensure continuous signal processing integrity. In this architecture, three independent input channels process the incoming 24 VDC signals in parallel. The module employs a voting mechanism where the state of the inputs is continuously compared; if a single channel diverges due to a fault, the remaining two channels maintain the system in a controlled, safe state without process interruption. Galvanic isolation is implemented between the input field circuitry and the internal system backplane to prevent common-mode electrical noise or surge potentials from compromising the safety logic. The design inherently supports fail-safe state execution, ensuring that in the event of an internal hardware failure, the module defaults to a predetermined safe condition as required by SIL 3 functional safety standards.

Frequently Asked Questions

Q: Can the T8403 module be replaced while the safety system is actively running?

A: Yes, the T8403 supports hot-swappable replacement. The physical backplane connectors permit removal and insertion of the module without requiring a full shutdown of the processor or the associated I/O rack.

Q: How does the module handle signal discrepancies between the TMR channels?

A: The onboard diagnostic circuitry performs continuous cross-channel comparisons. If one of the three channels reports a signal value that deviates from the majority vote, the system logs a diagnostic fault while maintaining the correct output status based on the remaining functional channels.

Field Installation Guidelines

Backplane Seating: Ensure the Trusted backplane is de-energized before initial installation to prevent transient arcs. Align the module with the guide rails and ensure the rear connectors are fully seated to maintain electrical contact integrity.
Shielding and Grounding: Field wiring must utilize shielded twisted-pair cables. Terminate shields at the designated common ground bar within the cabinet to mitigate electromagnetic interference (EMI). Do not leave cable shields floating at the module end.
Thermal Management: Maintain a minimum clearance of 50 mm above and below the module to allow for adequate convection cooling, as internal power dissipation occurs under load.
Wiring Termination: Tighten all terminal screws to the manufacturer-specified torque limit. Verify that no wire strands are exposed beyond the terminal block to prevent short circuits between adjacent 24 VDC input lines.
